Drill Motors (All Series)
12Pages

{{requestButtons}}

Catalog excerpts

Drill Motors (All Series) - 1

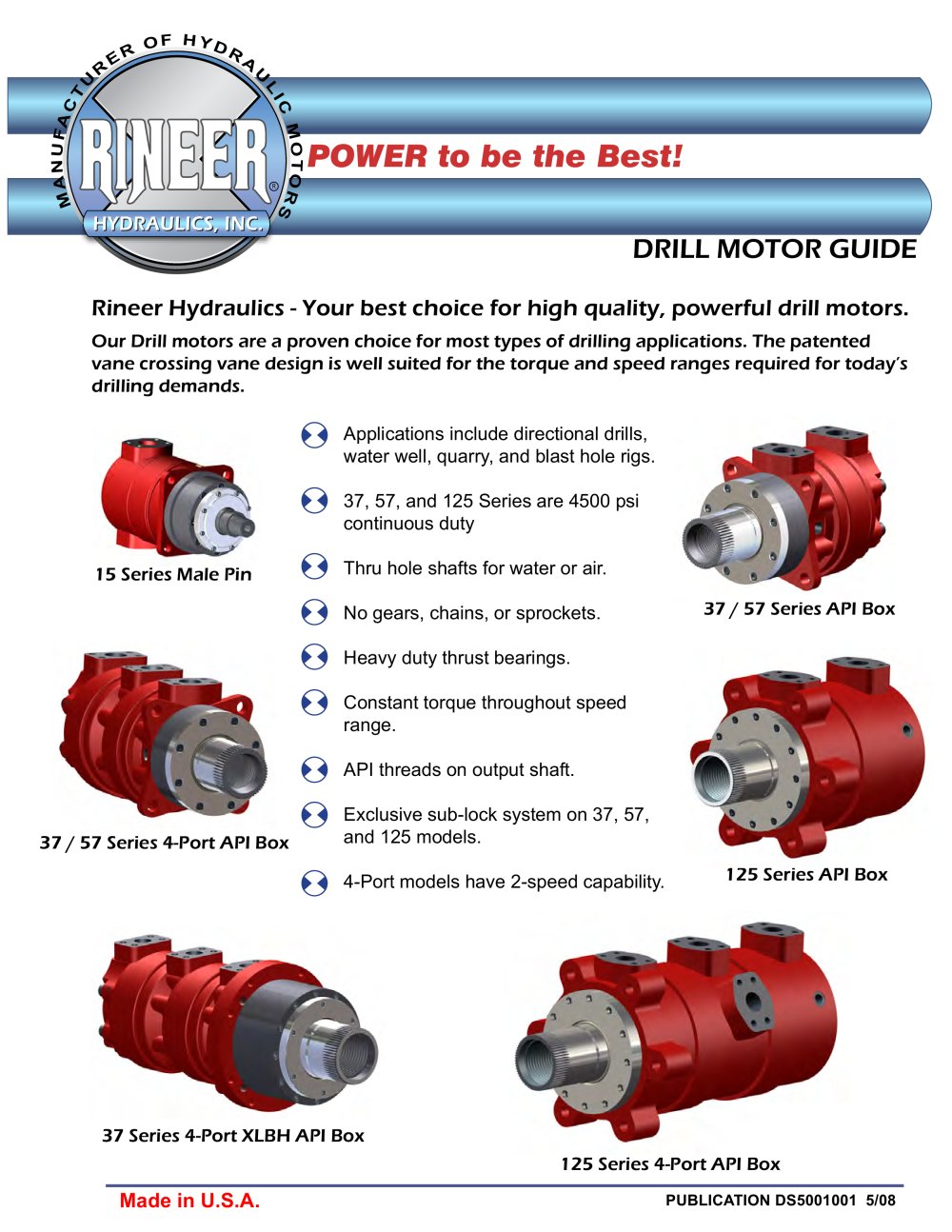

Our Drill motors are a proven choice for most types of drilling applications. The patented vane crossing vane design is well suited for the torque and speed ranges required for todays drilling demands. Applications include directional drills, water well, quarry, and blast hole rigs.37, 57, and 125 Series are 4500 psi continuous dutyThru hole shafts for water or air. No gears, chains, or sprockets. Heavy duty thrust bearings. Constant torque throughout speed range.API threads on output shaft. Exclusive sub-lock system on 37, 57, and 125 models.4-Port models have 2-speed capability. 15 Series Male Pin37 / 57 Series API Box 37 / 57 Series 4-Port API Box 37 Series 4-Port XLBH API Box 125 Series API Box 125 Series 4-Port API Box >

Open the catalog to page 1
Drill Motors (All Series) - 2

CENTER LINE CASE DRAIN CASE DRAIN

Open the catalog to page 2
Drill Motors (All Series) - 7

21.52 19.23 1.28 12.25 5.70 2-7/8 API I.F. 10.38 BOX THREAD 1/2 O-RING BOSS CASE DRAIN 2.63 1.00 6.50 1/2 O-RING BOSS CASE DRAIN (2) PLACES CASE 1.50 DRAIN WRENCH FLATS 10.75 14.00 CASE DRAIN SUBLOCK SPLINE 65T, 16/32P 30 2-1/8"И PRESSURE ANGLE 6X .781 THRU, THRU HOLE SAE 1-1/2"ؘ CODE 62 0N A 11.75 B.C. 4-BOLT FLANGE PORT (2) PLACES size="-1">

Open the catalog to page 7
Drill Motors (All Series) - 8

29.26 26.98 20.00 5.70 18.13 1.28 1/2 O-RING BOSS SEE SUBLOCK CASE DRAIN 10.38 PAGE 10 2.63 1/2 O-RING BOSS 1.00 6.50 1.50 CASE DRAIN (3) PLACES 4.34 B1 8.500 9.000 > CASE Ԙ 8.495 10.75 > 8.995 C L > DRAIN 65 ذ 3.375 B2 A2 A1 4.125 4.124 65 > 3.00 WRENCH C L > CASE FLATS DRAIN 14.00 2" NPT L.H. 2-7/8 API I.F. THREAD .781 DRILL x FEMALE SAE 1-1/2" > И CODE 62 THRU, (6) PLACES 4-BOLT FLANGE PORT 2" DIA. THRU HOLE 0N A 11.75 B.C. (4) PLACES >

Open the catalog to page 8
Drill Motors (All Series) - 9

YOUR BEST CHOICE FOR DRILL MOTORS! > O F H Y D E R R A R U U L T I C C M A F O U T O N R A R S M Rineer Hydraulics has over 35 years experience designing and manufacturing hydraulic motors for a variety of drill applications. Unlike most other hydraulic manufacturers, we are dedicated solely to the production of hydraulic motors, and to the applications they serve. The advanced design of the Rineer Rotating Element lends itself to a wide variety of drill applications. Drill heads have become a natural extension of the product line due to through-hole capability of the shaft. The...

Open the catalog to page 9
Drill Motors (All Series) - 10

INTERNAL INVOLUTE > o SPLINE - 54T, 16/32P 3.00 65T, 16/32 PITCH 30 PA 3.00 30 DEG. CLASS 4 .30 INTERNAL INVOLUTE SPLINE 1.00 FLAT ROOT SIDE FIT 1.00 FLAT ROOT SIDE FIT (SPECIAL CLASS) 3.313 3.483 4.00 4.732 3.318 4.728 3.395 4.00 3.390 REF. 4.140 >

Open the catalog to page 10
Drill Motors (All Series) - 11

VANE CROSSING VANE HORSEPOWER LIMITATION > The Rineer patented vane crossing vane design produces much higher volumetric and mechanical efficiencies than is possible with a standard vane type design. This design provides a sealing vane between cavities to improve mechanical and volumetric efficiencies. Calculated maximum horsepower in each series is achieved from the largest displacement and will be reduced per given smaller displacement. When using the Drill Motor above 80% of maximum horsepower per displacement, consult a Rineer Application Engineer.Maximum Calculated Horsepower (with...

Open the catalog to page 11
