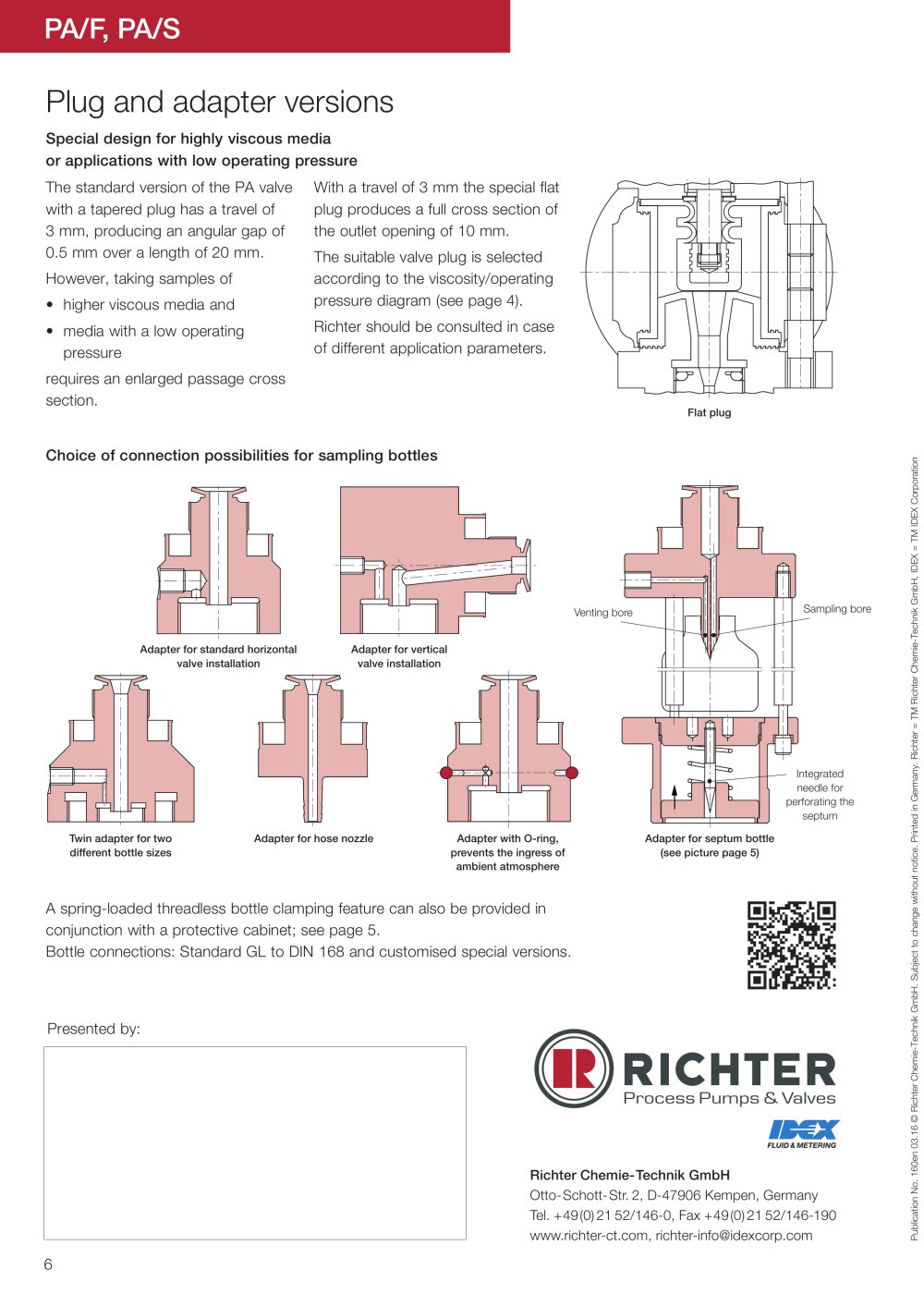

PA/F, PA/S

Special versions

of the models PA/F and PA/S

Special design for highly viscous media or applications with a low operating pressure

The standard version of the PA valve with a tapered plug has a travel of 3 mm, producing an annular gap of 0.5 mm over a length of 20 mm.

However, tak ng samples of

• higher-viscosity media and

• media with a low operating pressure

requires an enlarged passage cross section.

The special flat plug produces a full cross section of the outlet opening of 10 mm at a travel of 3 mm.

The suitable valve plug is selected according to the viscosity/operating pressure diagram (see page 4).

ITT Richter should be consulted in the case of deviating application conditions.

Outlet opening 0 10 mm

Further connection possibilities for sampling bottles

Adapter for hose nozzle

Adapter prepared for final preparation by the customer

Adapter for vertica valve installation

Adapter for small bottles with centring (Fig. vertical installation)

A spring-loaded threadless damping feature can also be provided in conjunction with a protective cabinet, see Fig. on page 5.
