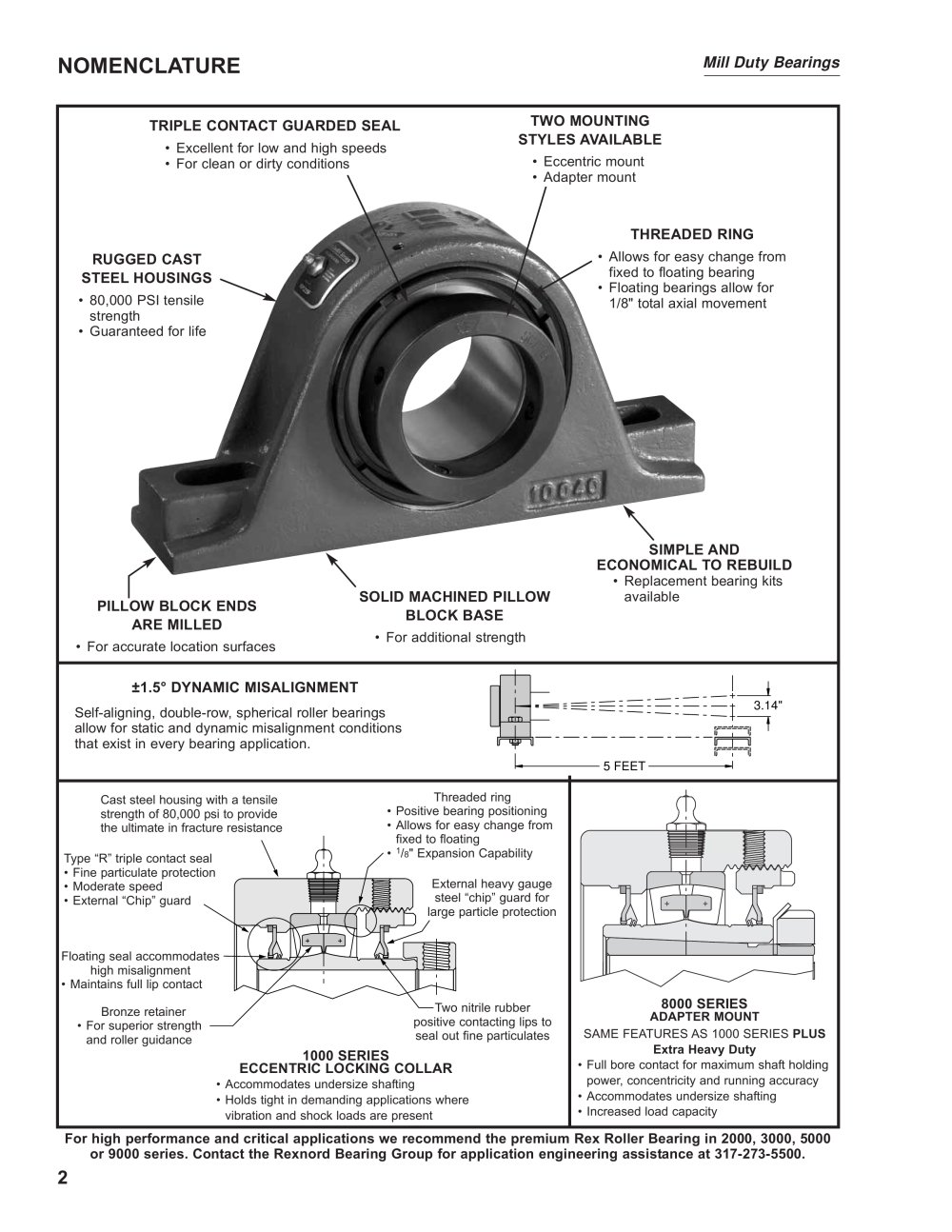

NOMENCLATURE

Mill Duty Bearings

TRIPLE CONTACT GUARDED SEAL TWO MOUNTINGSTYLES AVAILABLE

•Excellent for low and high speeds•For clean or dirty conditions •Eccentric mount•Adapter mount

THREADED RING RUGGED CASTSTEELHOUSINGS

•Allows for easy change fromfixed to floating bearing •Floating bearings allow for1/8" total axial movement •80,000 PSI tensilestrength•Guaranteed for life

SIMPLE ANDECONOMICALTO REBUILD

•Replacement bearing kitsavailable

PILLOW BLOCK ENDSARE MILLED SOLID MACHINED PILLOWBLOCK BASE

•For accurate location surfaces •For additional strength

±1.5° DYNAMIC MISALIGNMENT

Self-aligning, double-row, spherical roller bearings allow for static and dynamic misalignment conditions that exist in every bearing application.
5 FEET3.14" 1 / 8 " Expansion CapabilityExternal heavy gauge steel “chip” guard forlarge particle protectionTwo nitrile rubberpositive contacting lips toseal out fine particulates Cast steel housing with a tensilestrength of 80,000 psi to provide the ultimate in fracture resistance 8000 SERIES
ADAPTER MOUNT SAME FEATURES AS 1000 SERIES PLUSExtra Heavy Duty 1000 SERIESECCENTRIC LOCKING COLLAR
•Full bore contact for maximum shaft holdingpower, concentricity and running accuracy•Accommodates undersize shafting •Increased load capacity •Accommodates undersize shafting•Holds tight in demanding applications wherevibration and shock loads are present Type “R” triple contact seal•Fine particulate protection •Moderate speed •External “Chip” guardFloating seal accommodateshigh misalignment•Maintains full lip contactBronze retainer•For superior strengthand roller guidance Threaded ring•Positive bearing positioning •Allows for easy change fromfixed to floating• For high performance and critical applications we recommend the premium Rex Roller Bearing in 2000, 3000, 5000or 9000 series. Contact the Rexnord Bearing Group for application engineering assistance at 317-273-5500.

2
