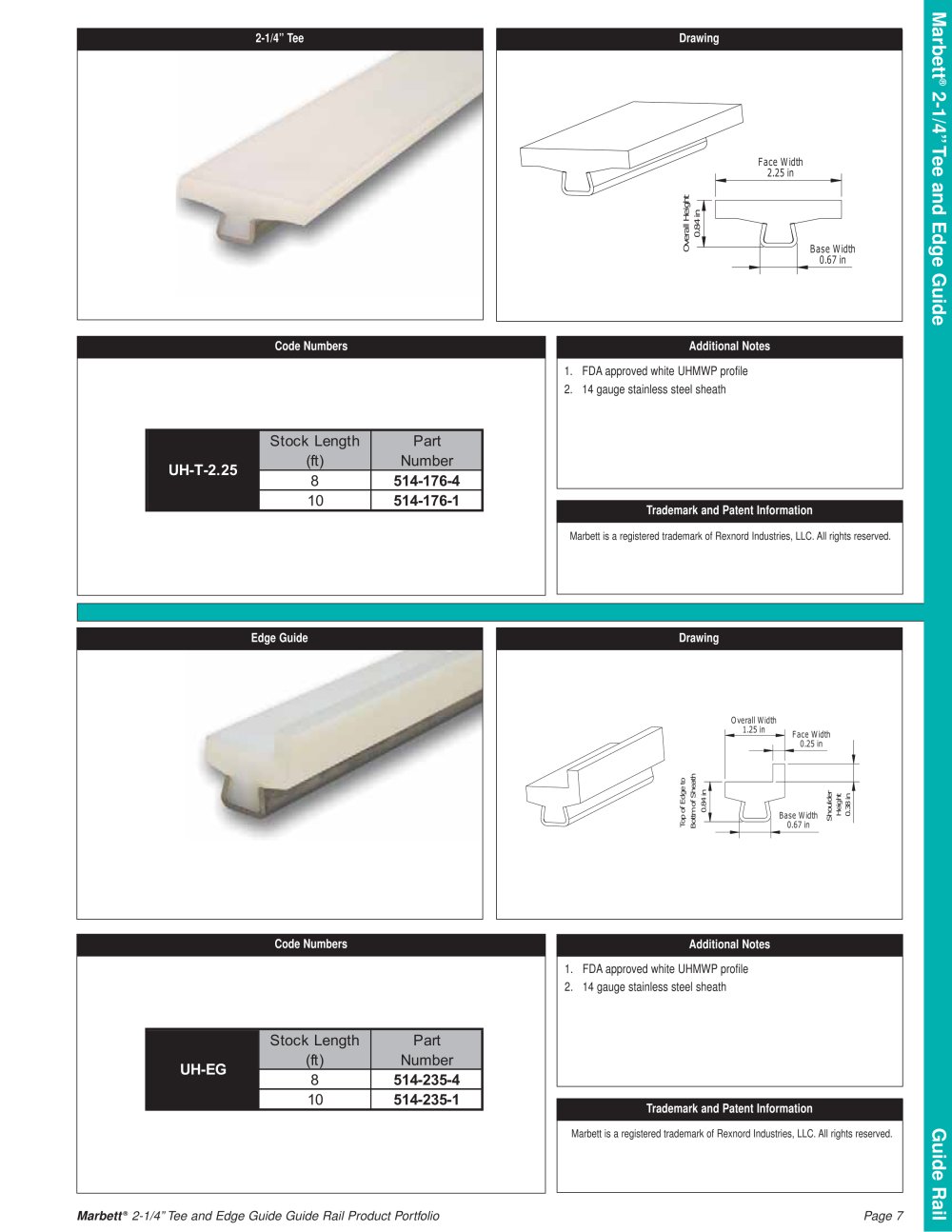

Marbett 2-1/4” Tee Drawing
® 2-1/4”Tee and Edge GuideGuide Rail Face Width2.25 inBase Width0.67 in Overall Height0.84 in Code Numbers Additional Notes 1. FDAapproved white UHMWPprofile2. 14 gauge stainless steel sheath
Marbett is a registered trademark of Rexnord Industries, LLC. All rights reserved. Edge Guide Drawing
Face Width0.25 in Base Width0.67 in Overall Width1.25 in ShoulderHeight0.38 in Top of Edge to Bottm of Sheath0.84 in Code Numbers Additional Notes 1. FDAapproved white UHMWPprofile 2. 14 gauge stainless steel sheath
Marbett is a registered trademark of Rexnord Industries, LLC. All rights reserved. Marbett
® 2-1/4”Tee and Edge Guide Guide Rail Product PortfolioPage 7
® 2-1/4”Tee and Edge GuideGuide Rail Face Width2.25 inBase Width0.67 in Overall Height0.84 in Code Numbers Additional Notes 1. FDAapproved white UHMWPprofile2. 14 gauge stainless steel sheath
Marbett® Conveyor Components Catalog - 7386 Stock LengthPart(ft)Number8 514-176-4 10 514-176-1UH-T-2.25
Trademark and Patent InformationMarbett is a registered trademark of Rexnord Industries, LLC. All rights reserved. Edge Guide Drawing
Face Width0.25 in Base Width0.67 in Overall Width1.25 in ShoulderHeight0.38 in Top of Edge to Bottm of Sheath0.84 in Code Numbers Additional Notes 1. FDAapproved white UHMWPprofile 2. 14 gauge stainless steel sheath
Stock LengthPart(ft)Number8 514-235-4 10 514-235-1UH-EG
