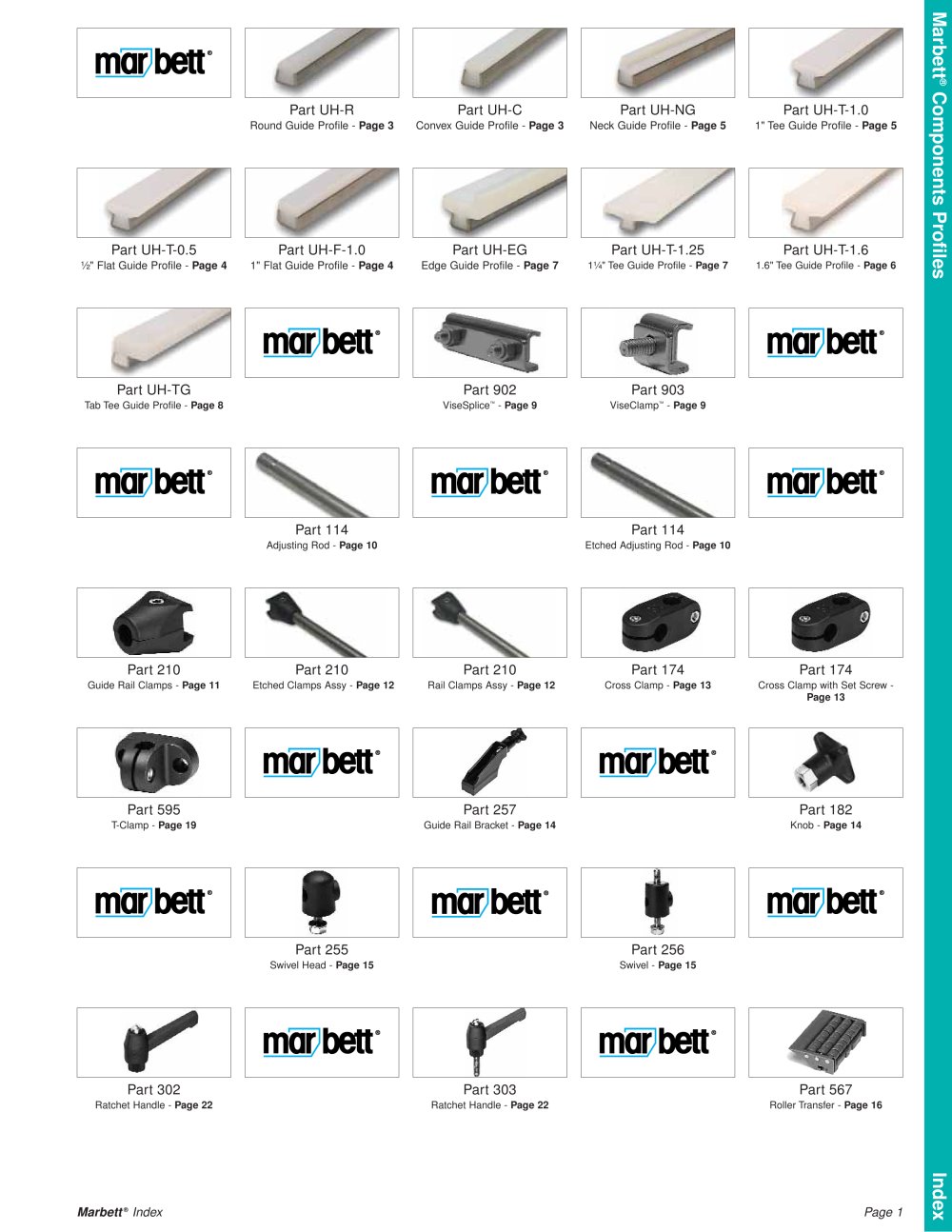

Marbett ® Components ProfilesIndex

Marbett® Conveyor Components Catalog - 7386 Part UH-R Part UH-C Part UH-NG Part UH-T-1.0

Round Guide Profile - Page 3 Convex Guide Profile - Page 3 Neck Guide Profile - Page 5 1" Tee Guide Profile - Page 5

Part UH-T-0.5 Part UH-F-1.0 Part UH-EG Part UH-T-1.25 Part UH-T-1.6

½" Flat Guide Profile - Page 4 1" Flat Guide Profile - Page 4 Edge Guide Profile - Page 7

1¼" Tee Guide Profile - Page 7 1.6" Tee Guide Profile - Page 6

Part UH-TG Part 902 Part 903

Tab Tee Guide Profile - Page 8 ViseSplice
™ - Page 9 ViseClamp
™ - Page 9

Part 114 Part 114

Adjusting Rod - Page 10 Etched Adjusting Rod - Page 10

Part 210 Part 210 Part 210 Part 174 Part 174

Guide Rail Clamps - Page 11 Etched Clamps Assy - Page 12 Rail Clamps Assy - Page 12 Cross Clamp - Page 13 Cross Clamp with Set Screw - Page 13

Part 595 Part 257 Part 182

T-Clamp - Page 19 Guide Rail Bracket - Page 14 Knob - Page 14

Part 255 Part 256

Swivel Head - Page 15 Swivel - Page 15

Part 302 Part 303 Part 567

Ratchet Handle - Page 22 Ratchet Handle - Page 22 Roller Transfer - Page 16

Marbett

®

IndexPage 1
