Marbett

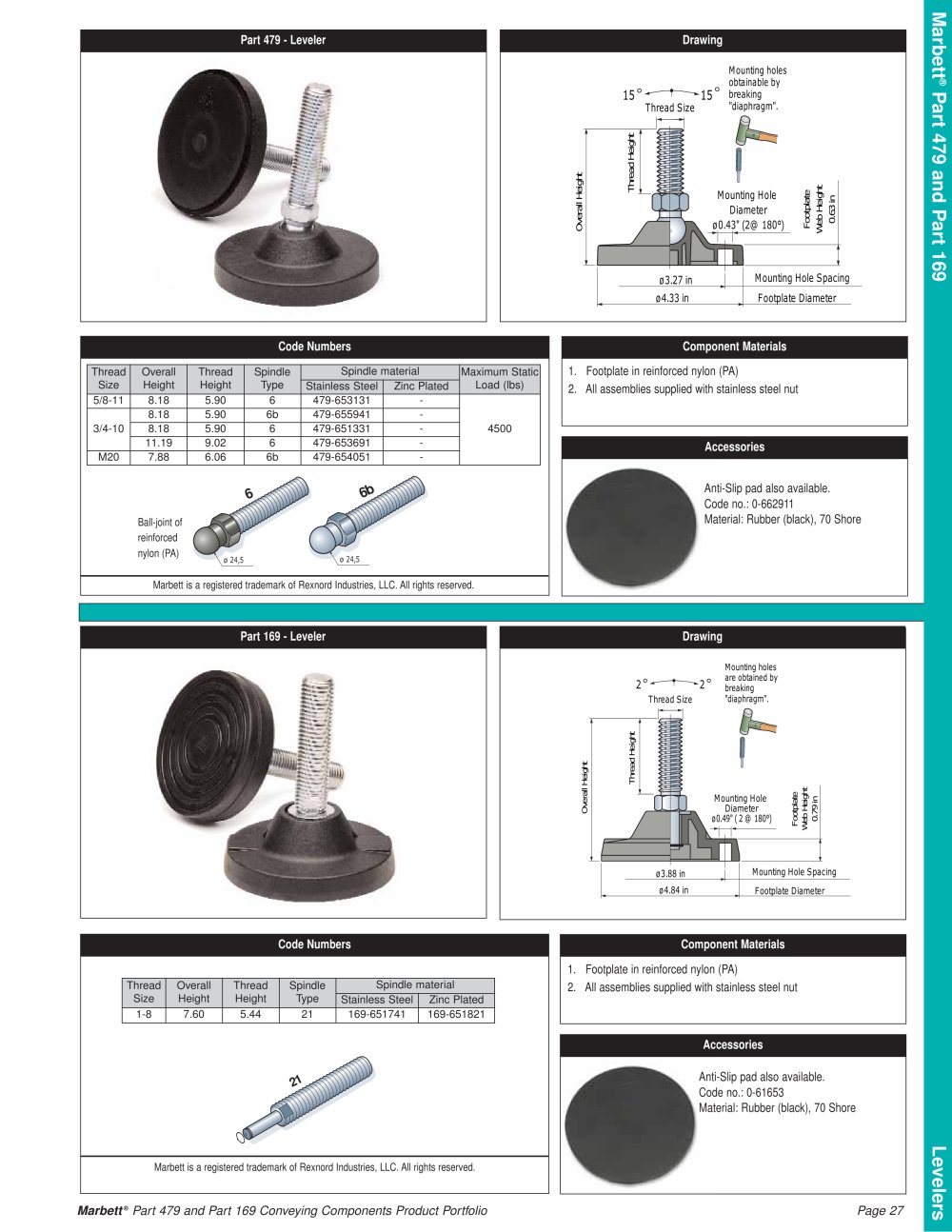

Part 479 - Leveler Drawing

Mounting holesobtainable by breaking "diaphragm". ®

Marbett® Conveyor Components Catalog - 7386 15 15

Part 479 and Part 169Levelers

Thread Size Mounting Hole SpacingFootplate Diameter

Thread HeightOverall Height FootplateWeb Height0.63 in

Mounting Hole Diameterø0.43" (2@ 180°) ø3.27 in ø4.33 in

Code Numbers Component Materials

ThreadSize OverallHeight ThreadHeight SpindleType Spindle material Maximum StaticLoad (lbs)

1. Footplate in reinforced nylon (PA)2. All assemblies supplied with stainless steel nut

Stainless Steel Zinc Plated 5/8-11 8.18 5.90 6 479-653131 - 8.18 5.90 6b 479-655941 - 3/4-10 8.18 5.90 6 479-651331 - 4500 11.19 9.02 6 479-653691 -

Accessories

M20 7.88 6.06 6b 479-654051 -

6

6b

Anti-Slip pad also available. Code no.: 0-662911 Material: Rubber (black), 70 Shore

Ball-joint ofreinforced nylon (PA)
ø 24,5 ø 24,5 Marbett is a registered trademark of Rexnord Industries, LLC. All rights reserved.

Part 169 - Leveler Drawing

Mounting holesare obtained by breaking "diaphragm".

2 2

Thread Size Mounting Hole SpacingFootplate Diameter Thread HeightOverall Height FootplateWeb Height0.79 in Mounting Hole Diameter ø0.49" ( 2 @ 180°) ø3.88 in ø4.84 in

Code Numbers Component Materials 1. Footplate in reinforced nylon (PA)2. All assemblies supplied with stainless steel nut

ThreadSize OverallHeight ThreadHeight SpindleType Spindle material Stainless Steel Zinc Plated 1-8 7.60 5.44 21 169-651741 169-651821

Accessories

21

Anti-Slip pad also available. Code no.: 0-61653 Material: Rubber (black), 70 Shore

Marbett is a registered trademark of Rexnord Industries, LLC. All rights reserved.

Marbett

®

Part 479 and Part 169 Conveying Components Product PortfolioPage 27
