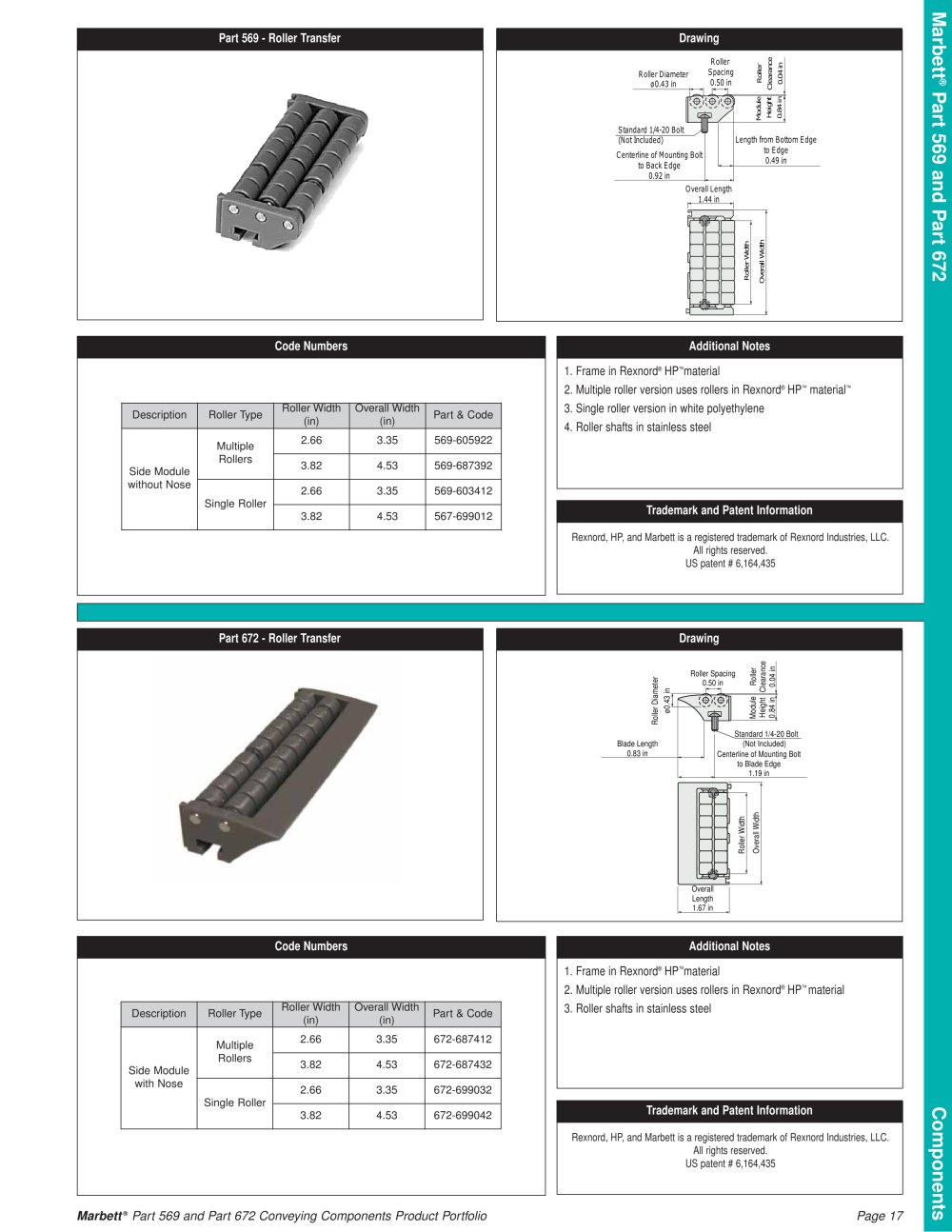

Marbett® Conveyor Components Catalog - 7386 Part 569 - Roller Transfer Drawing

RollerSpacing0.50 in Roller Diameterø0.43 in ® RollerClearance0.04 in Part 569 and Part 672Components ModuleHeight0.84 in Standard 1/4-20 Bolt(Not Included) Length from Bottom Edgeto Edge0.49 in Centerline of Mounting Boltto Back Edge0.92 in Overall Length1.44 in Roller Width Overall Width

Code Numbers Additional Notes 1. Frame in Rexnord

®

HP

™

material2. Multiple roller version uses rollers in Rexnord

®

HP

™

material

™ Description Roller Type Roller Width(in) Overall Width(in) Part & Code

3. Single roller version in white polyethylene 4. Roller shafts in stainless steel

MultipleRollers 2.66 3.35 569-605922 Side Modulewithout Nose 3.82 4.53 569-687392 2.66 3.35 569-603412 Single Roller 3.82 4.53 567-699012

Trademark and Patent Information

Rexnord, HP, and Marbett is a registered trademark of Rexnord Industries, LLC. All rights reserved.US patent # 6,164,435

Part 672 - Roller Transfer Drawing

Roller Spacing0.50 in RollerClearance0.04 in ModuleHeight0.84 in Roller Diameterø0.43 in Overall Width Standard 1/4-20 Bolt(Not Included) Blade Length0.83 in Centerline of Mounting Boltto Blade Edge1.19 in Roller Width OverallLength1.67 in

Code Numbers Additional Notes 1. Frame in Rexnord

®

HP

™

material2. Multiple roller version uses rollers in Rexnord

®

HP

™

material3. Roller shafts in stainless steel

Description Roller Type Roller Width(in) Overall Width(in) Part & Code MultipleRollers 2.66 3.35 672-687412 Side Modulewith Nose 3.82 4.53 672-687432 2.66 3.35 672-699032 Single Roller 3.82 4.53 672-699042

Trademark and Patent Information

Rexnord, HP, and Marbett is a registered trademark of Rexnord Industries, LLC. All rights reserved.US patent # 6,164,435

Marbett

®

Part 569 and Part 672 Conveying Components Product PortfolioPage 17
