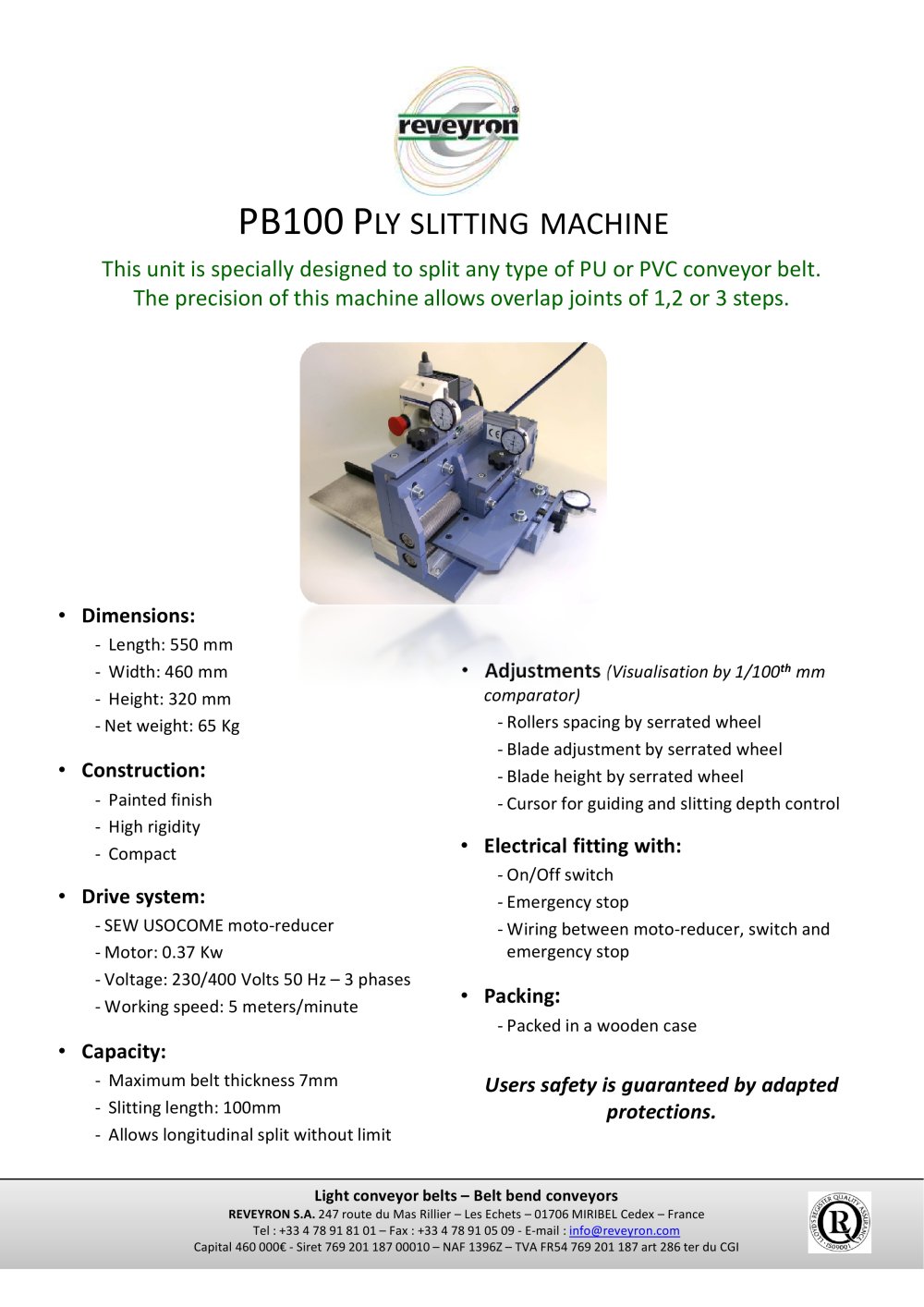

PB100 Ply slitting machine
This unit is specially designed to split any type of PU or PVC conveyor belt. The precision of this machine allows overlap joints of 1,2 or 3 steps.
|
||||
|
|
||||
 |
||||
|
|
||||
|
Dimensions:
- Length: 550 mm
- Width: 460 mm
- Height: 320 mm
- Net weight: 65 Kg
Construction:
- Painted finish
- High rigidity -Compact
Drive system:
- SEW USOCOME moto-reducer
- Motor: 0.37 Kw
- Voltage: 230/400 Volts 50 Hz - 3 phases
- Working speed: 5 meters/minute
Capacity:
- Maximum beltthickness 7mm
- Slitting length: 100mm
- Allows longitudinal split without limit
|
Adjustments (Visualisation by l/100th mm comparator)
- Rollers spacing by serrated wheel
- Blade adjustment by serrated wheel
- Blade height by serrated wheel
- Cursor for guiding and slitting depth control
Electrical fitting with:
-On/Off switch -Emergency stop
- Wiring between moto-reducer, switch and emergency stop
Packing:
- Packed in a wooden case
Users safety is guaranteed by adapted protections.
|
|||
|
|
||||
|
REVEYRON S.A. 247 route du Mas Rillier - Les Echets - 01706 MIRIBEL Cedex - France Tel : +33 4 78 918101 - Fax : +33 4 78 9105 09 - E-mail : info@reveyron.com Capital 460 000€ - Siret 769 201187 00010 - NAF 1396Z - TVA FR54 769 201 187 art 286 ter du CGI
|
 |
|||
|
|
||||
