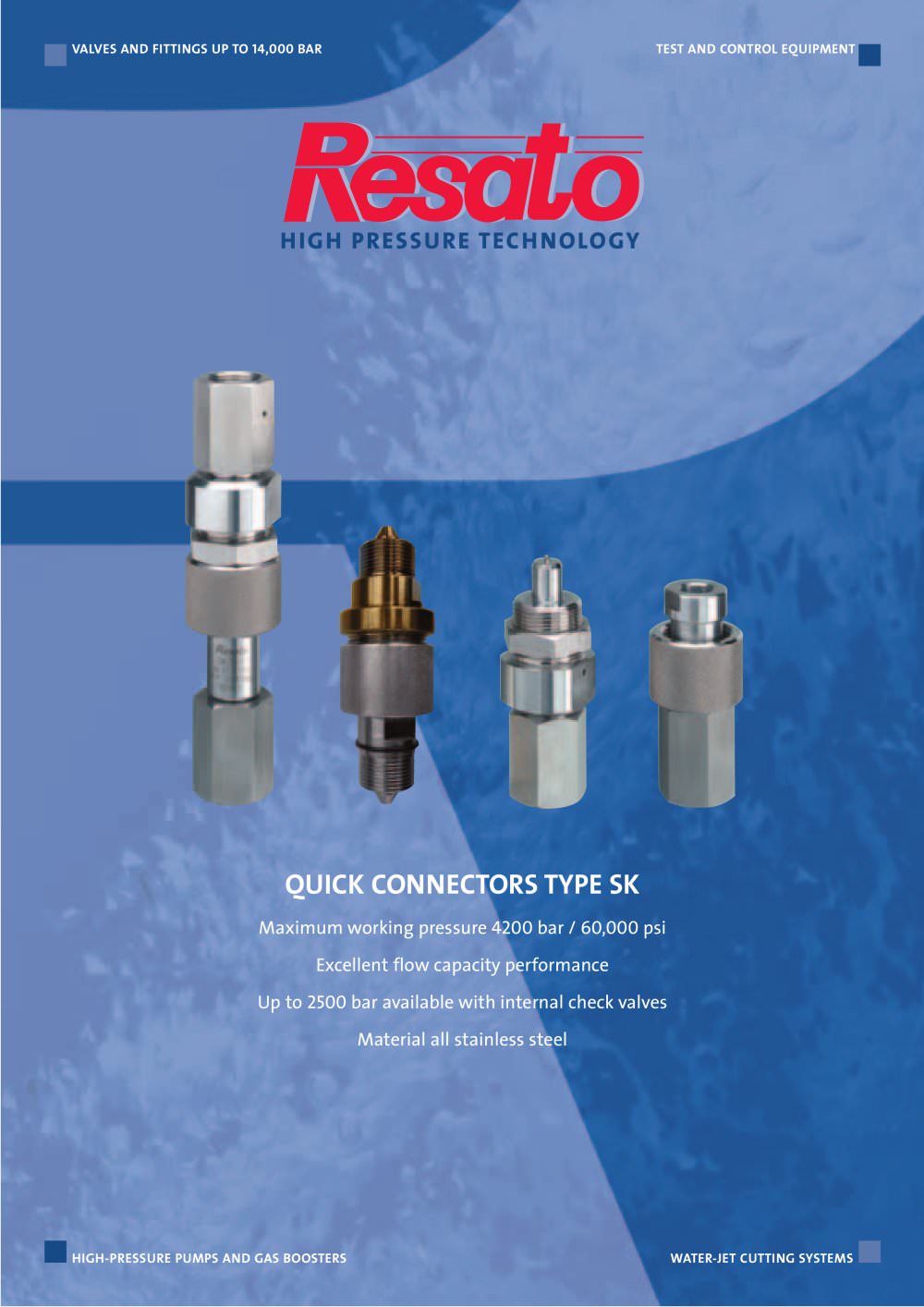

High pressure quick connectors - 1

VALVES AND FITTINGS UP TO 14,000 BAR WATER-JET CUTTING SYSTEMS HIGH-PRESSURE PUMPS AND GAS BOOSTERS TEST AND CONTROL EQUIPMENT Maximum working pressure 4200 bar / 60,000 psiExcellentflow capacity performanceUp to 2500 bar available with internal check valvesMaterial all stainless steel >

Open the catalog to page 1
High pressure quick connectors - 2

2500 bar / 36,000 psi.Quick connector types SK3-21 up to 2100 bar / 30,000 psi and SK3-42 up to 4200 bar / 60,000 psi areonly available as open models.To assemble a complete quick connector,order both female and male couplers.For total length when connected,add dimensions of male and female coupler. SK2-25 > HIGH PRESSURE TECHNOLOGY are available in open and closed models (with internalcheck valves) up to a pressure of > Resato offers a range of quick connectors thatareexcellently suitable to connecthigh-pressure pump systems to objects to be pressurized.The quick connectors can be used in...

Open the catalog to page 2
High pressure quick connectors - 3

HIGH PRESSURE TECHNOLOGY M SK 30 3-21 x 2 -F-O (a)Pressure ratingOrificeOrdering codebar/psimm 2100 / 30,0008 > a 40 SW 246782 M SK 30 3-21 x 2 -M-O (a)Pressure ratingOrificeOrdering codebar/psimm 2100 / 30,0008 > a 50 SW 327589 M SK 30 3-42 x 2 -F-O (a)Pressure ratingOrificeOrdering codebar/psimm 4200 / 60,0005 > a 踸50 SW 247085 M SK 30 3-42 x 2 -M-O (a)Pressure ratingOrificeOrdering codebar/psimm 4200 / 60,0005 > 50M30x2 SW 327892 SK 3 -**-M-OSK 3 -**-F-O > Body,Gland and Nut : 1.4404 ( 316 L) and 17-4 PH Spring : 1.4310 Check valve : 1.4404 and 17-4 PH Sealing :Viton > To assemble a...

Open the catalog to page 3
