High pressure hoses
4Pages

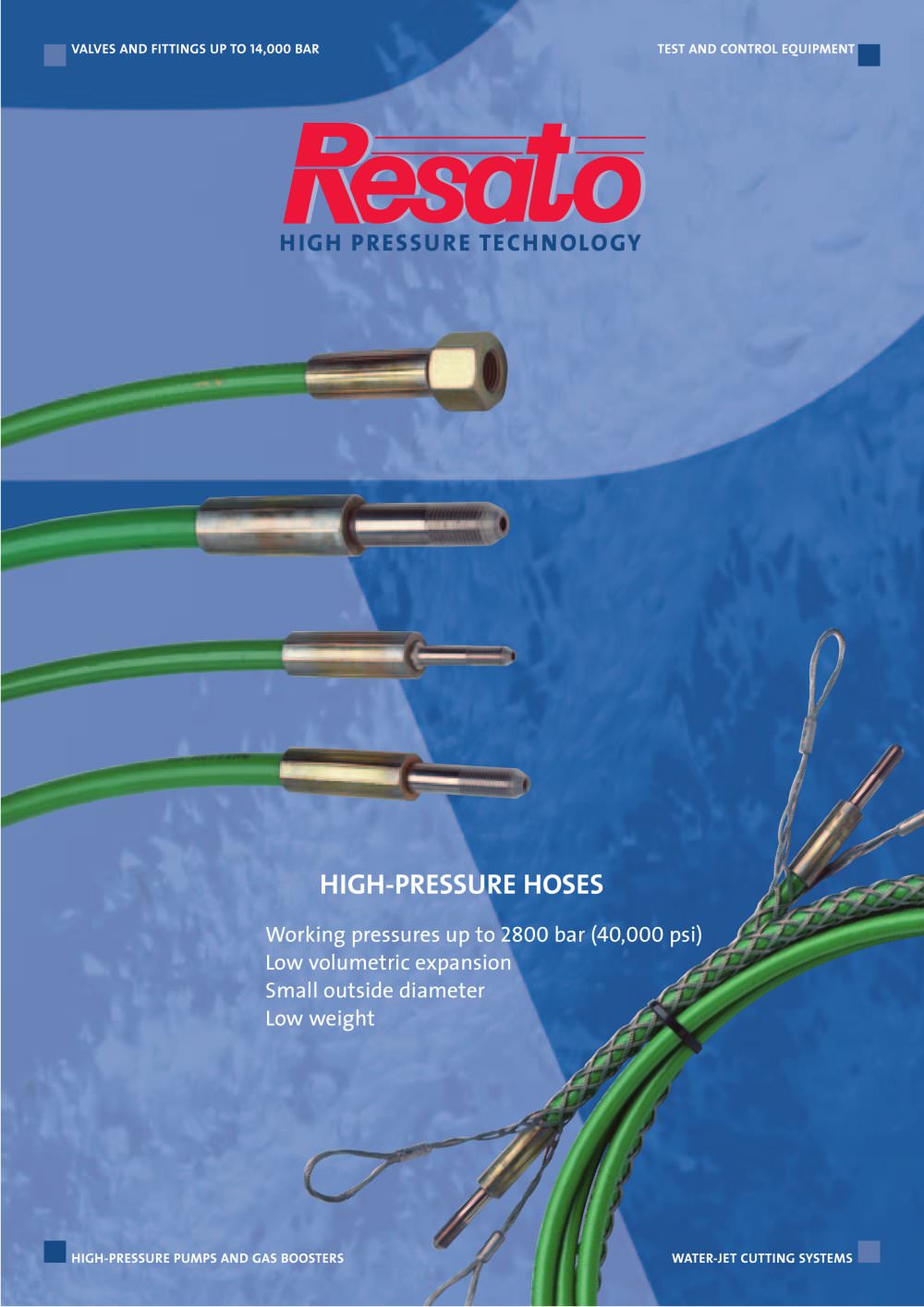

VALVES AND FITTINGS UP TO 14,000 BAR WATER-JET CUTTING SYSTEMS HIGH-PRESSURE PUMPS AND GAS BOOSTERS TEST AND CONTROL EQUIPMENT Working pressures up to 2800 bar ( 40,000 psi)Low volumetric expansion Small outside diameter Low weight >

Materials: Inner core POM: Polyoxymethylene or Polyamide PA: Nylon 11/12 11/12 Pressure support Working temperature* - 4 30˚ or 6 C to + layers of specially treated, high-tensile steel wires. See hose type table. Outer cover Polyamide PA: Nylon 60˚ C / - 22 ˚ F to 140˚ F > HIGH PRESSURE TECHNOLOGY Resato supplies a complete range of high-pressure hoses for fluids and gases up to working pressures of 2800 bar ( 40,000 psi). The inside diameter of the hoses varies from 4, 5, 8, 10 to 13 mm. This diameter, in combination with 4 or 6 layers of high tensile steel wires, make the hoses suitable...

HIGH PRESSURE TECHNOLOGY Hose type H 1/4- 28 UNF-LH 3/8Ԕ-24 UNF-LH 9/16-18 UNF-LH BSP Metric male male male 1/4Ԕ M 14x1.5 > 4/6 A B > 5/6 A B C > 5/6 H A B C > 8/6 C > 8/6 H C > 10/6 C > 13/6 C > 4/4 A B > 5/4 A B C D E > 6/4 B C D E > 8/4 C > 10/4 C > 13/4 C > Stainless steel high-pressure coned and threaded tubing connection. Rated for maximum hose operating pressure. Collar and gland are not included. The choice of collar is determined by the selected end fitting. The gland can be delivered with a Metric or UNF male thread connection. Bi-chromized Metric and BSP swivel connection (M...

VALVES AND FITTINGS UP TO 14,000 BAR WATER-JET CUTTING SYSTEMS HIGH-PRESSURE PUMPS AND GAS BOOSTERS TEST AND CONTROL EQUIPMENT HIGH PRESSURE TECHNOLOGY Example: H- 5/6-2000 -A-B-S-H-CH = High pressure hose type H. 5 = Inside diameter 5 mm. 6 = 6 layers. 2000 = Length 2000 mm.A = 1 st hose end provided with 1/4-28 UNF-LH-Male.B = 2 nd hose end provided with 3/8Ԕ-24 UNF-LH-Male.S = Safety grip at both hose ends. H = Hose guard. C = Test certificate. > For the UNF hose end fittings, glands and collars have to be ordered separately. The collar fits the UNF thread typecorresponding with the...
