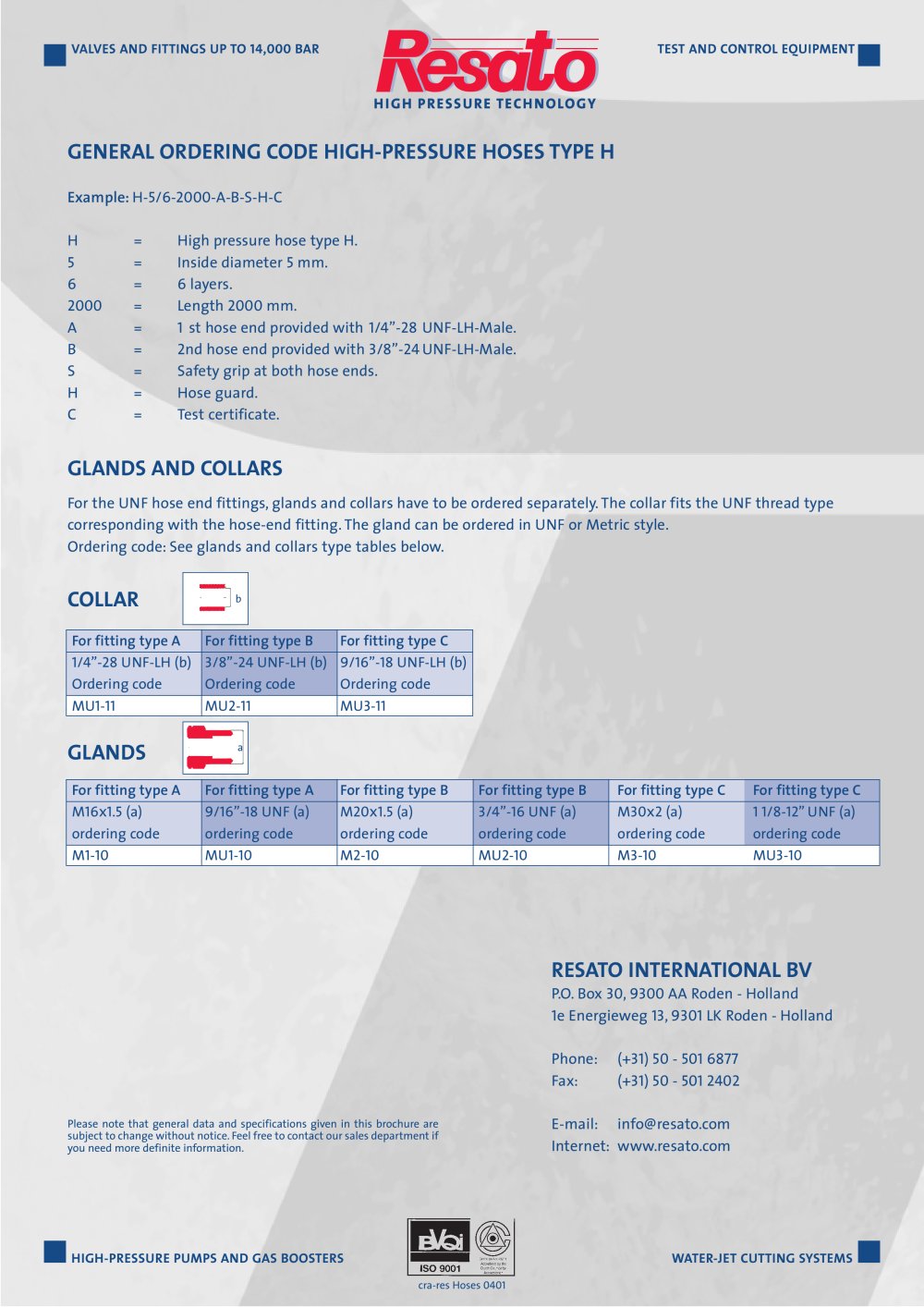

High pressure hoses - 24985 GENERAL ORDERING CODE HIGH-PRESSURE HOSES TYPE H

Example: H- 5/6-2000 -A-B-S-H-CH = High pressure hose type H. 5 = Inside diameter 5 mm. 6 = 6 layers. 2000 = Length 2000 mm.A = 1 st hose end provided with 1/4”-28 UNF-LH-Male.B = 2 nd hose end provided with 3/8”-24 UNF-LH-Male.S = Safety grip at both hose ends. H = Hose guard. C = Test certificate.

GLANDS AND COLLARS

For the UNF hose end fittings, glands and collars have to be ordered separately. The collar fits the UNF thread typecorresponding with the hose-end fitting. The gland can be ordered in UNF or Metric style. Ordering code: See glands and collars type tables below.

COLLAR

b For fitting type A For fitting type B For fitting type C 1/4”-28 UNF-LH (b) 3/8”-24 UNF-LH (b) 9/16”-18 UNF-LH (b)Ordering code Ordering code Ordering codeMU 1-11 MU 2-11 MU 3-11

GLANDS

a For fitting type A For fitting type A For fitting type B For fitting type B For fitting type C For fitting type C M 16x1.5 (a) 9/16”-18 UNF (a) M 20x1.5 (a) 3/4”-16 UNF (a) M 30x2 (a) 1 1/8-12” UNF (a)ordering code ordering code ordering code ordering code ordering code ordering codeM 1-10 MU 1-10 M 2-10 MU 2-10 M 3-10 MU 3-10

RESATO INTERNATIONAL BV

P.O. Box 30 , 9300 AA Roden - Holland 1 e Energieweg 13 , 9301 LK Roden - HollandPhone: (+31) 50 - 501 6877 Fax: (+31) 50 - 501 2402
Please note that general data and specifications given in this brochure are subject to change without notice. Feel free to contact our sales department if you need more definite information. E-mail: info@resato.comInternet: www.resato.com
