HIGH PRESSURE TECHNOLOGY

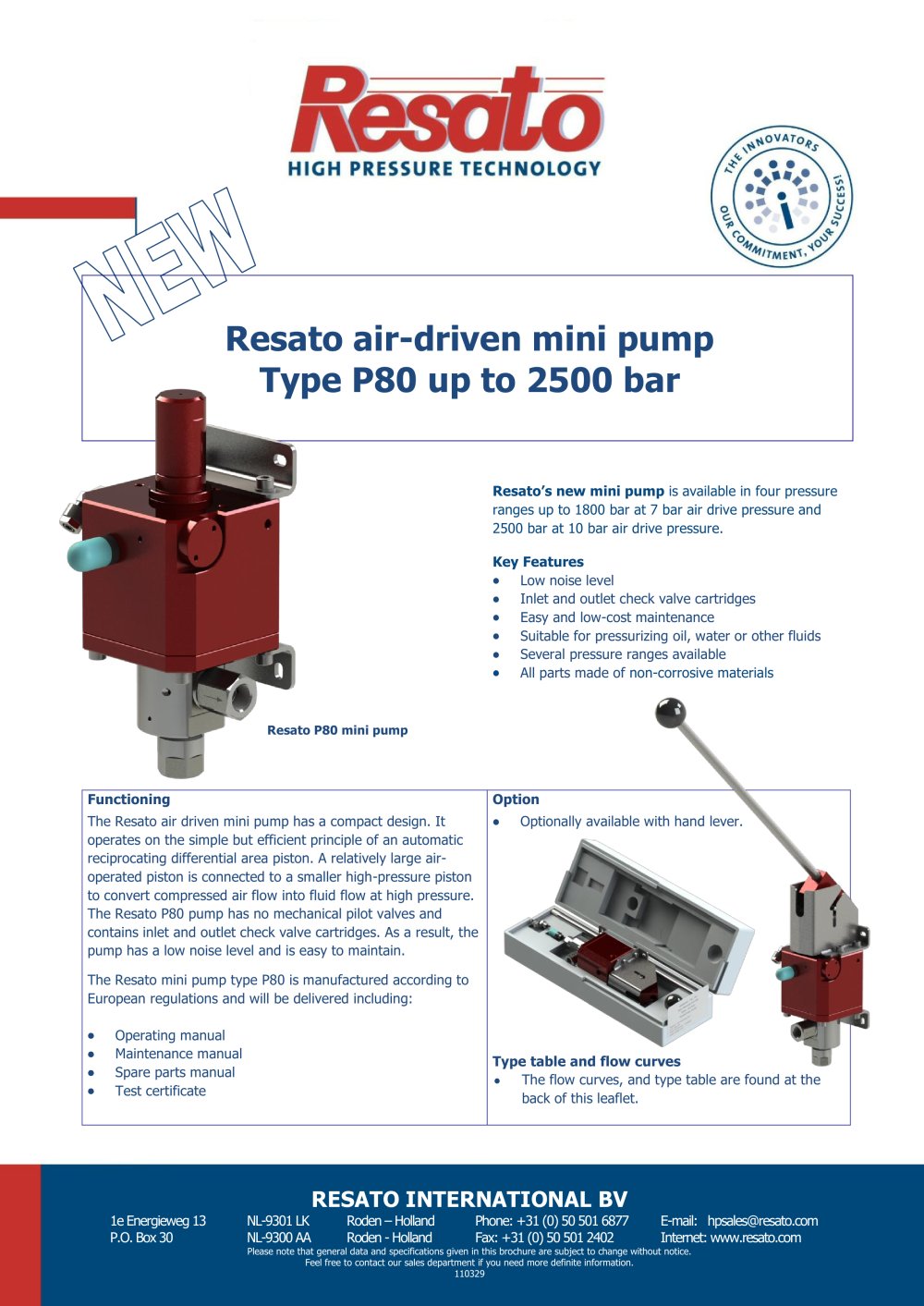

Resa to air-driven mini pump

Type P80 up to 2500 bar

Resato's new mini pump is available in four pressure

ranges up to 1800 bar at 7 bar air drive pressure and

2500 bar at 10 bar air drive pressure.

Key Features

Low noise level

Inlet and outlet check valve cartridges

Easy and low-cost maintenance

Suitable for pressurizing oil, water or other fluids

Several pressure ranges available

All parts made of non-corrosive materials

Resato P80 mini pump

Functioning

The Resato air driven mini pump has a compact design. It

operates on the simple but efficient principle of an automatic

reciprocating differential area piston. A relatively large air-

operated piston is connected to a smaller high-pressure piston

to convert compressed air flow into fluid flow at high pressure.

The Resato P80 pump has no mechanical pilot valves and

contains inlet and outlet check valve cartridges. As a result, the

pump has a low noise level and is easy to maintain.

The Resato mini pump type P80 is manufactured according to

European regulations and will be delivered including:

• Operating manual

• Maintenance manual

• Spare parts manual

• Test certificate

Option

• Optionally available with hand lever

Type table and flow curves

• The flow curves, and type table are found at the

back of this leaflet.

RESATO INTERNATIONAL BV

le Energieweg 13 NL-9301LK Roden - Holland Phone:+31 (0) 50 5016877 E-mail: hpsales@resatD.com

P.O. Box 30 NL-9300AA Roden - Holland Fax:+31 (0) 50 5012402 Internet: www.resato.com

Please note that general data and specifications given in this brochure are subject to change without notice.

Feel free to contact our sales department if you need more definite information.
