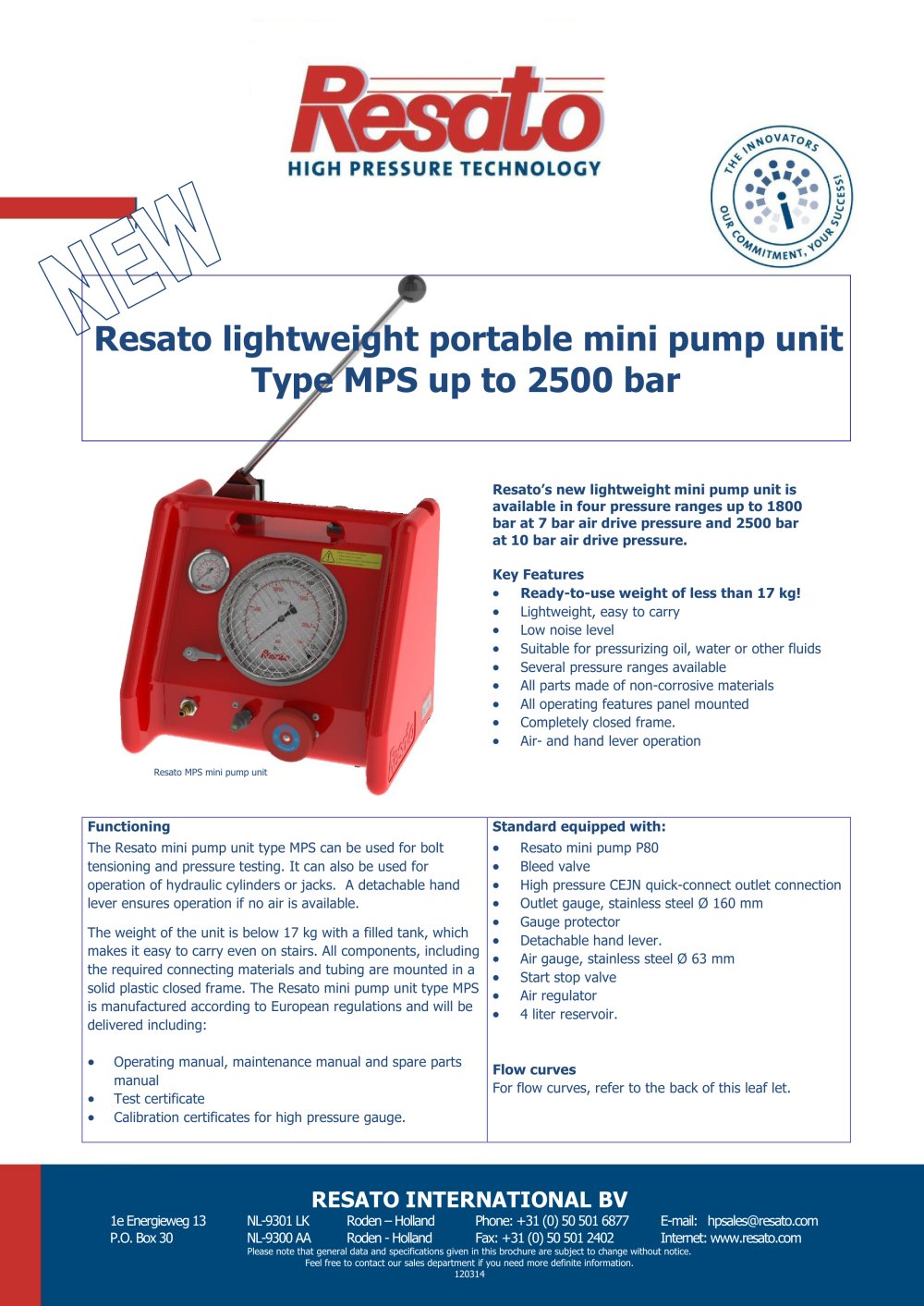

HIGH PRESSURE TECHNOLOGY Resato lightweight portable mini pump unit Resato's new lightweight mini pump unit is available in four pressure ranges up to 1800 Ready-to-use weight of less than 17 kg! Lightweight, easy to carry Suitable for pressurizing oil, water or other fluids Several pressure ranges available All parts made of non-corrosive materials All operating features panel mounted Completely closed frame. Air- and hand lever operation Resato MPS mini pump unit The Resato mini pump unit type MPS can be used for bolt tensioning and pressure testing. It can also be used for operation of hydraulic cylinders or jacks. A detachable hand lever ensures operation if no air is available. The weight of the unit is below 17 kg with a filled tank, which makes it easy to carry even on stairs. All components, including the required connecting materials and tubing are mounted in a solid plastic closed frame. The Resato mini pump unit type MPS is manufactured according to European regulations and will be delivered including: • Operating manual, maintenance manual and spare parts • Test certificate • Calibration certificates for high pressure gauge. Standard equipped with: Resato mini pump P80 Bleed valve High pressure CEJN quick-connect outlet connection Outlet gauge, stainless steel 0 160 mm Gauge protector Detachable hand lever. Air gauge, stainless steel 0 63 mm Start stop valve Flow curves For flow curves, refer to the back of this leaf let. le Energieweg 13 NL-9301LK Roden - Holland Phone:+31 (0) 50 5016877 E-mail: hpsales@resatD.com P.O. Box 30 NL-9300AA Roden - Holland Fax: +31 (0) 50 5012402 Internet: www.resato.com Please note that general data and specifications given in this brochure are subject to change without notice. Feel free to contact our sales department if you need more definite information.

Type table & flow curves Resato MPS series MPS Pump type Actual Max. outlet Volume Max. Tank Male outlet Type ratio pressure per cycle Flow connection Ordering example: MPS-100 ! Pressure at 7 bar air supply (Max. pump air supply is 10 bar) Dimensional drawing le Energieweg 13 NL-9301LK Roden - Holland Phone:+31 (0) 50 5016877 E-mail: hpsales@resatD.com P.O. Box 30 NL-9300AA Roden - Holland Fax: +31 (0) 50 5012402 Internet: www.resato.com Please note that general data and specifications given in this brochure are subject to change without notice. Feel free to contact our sales department if...
