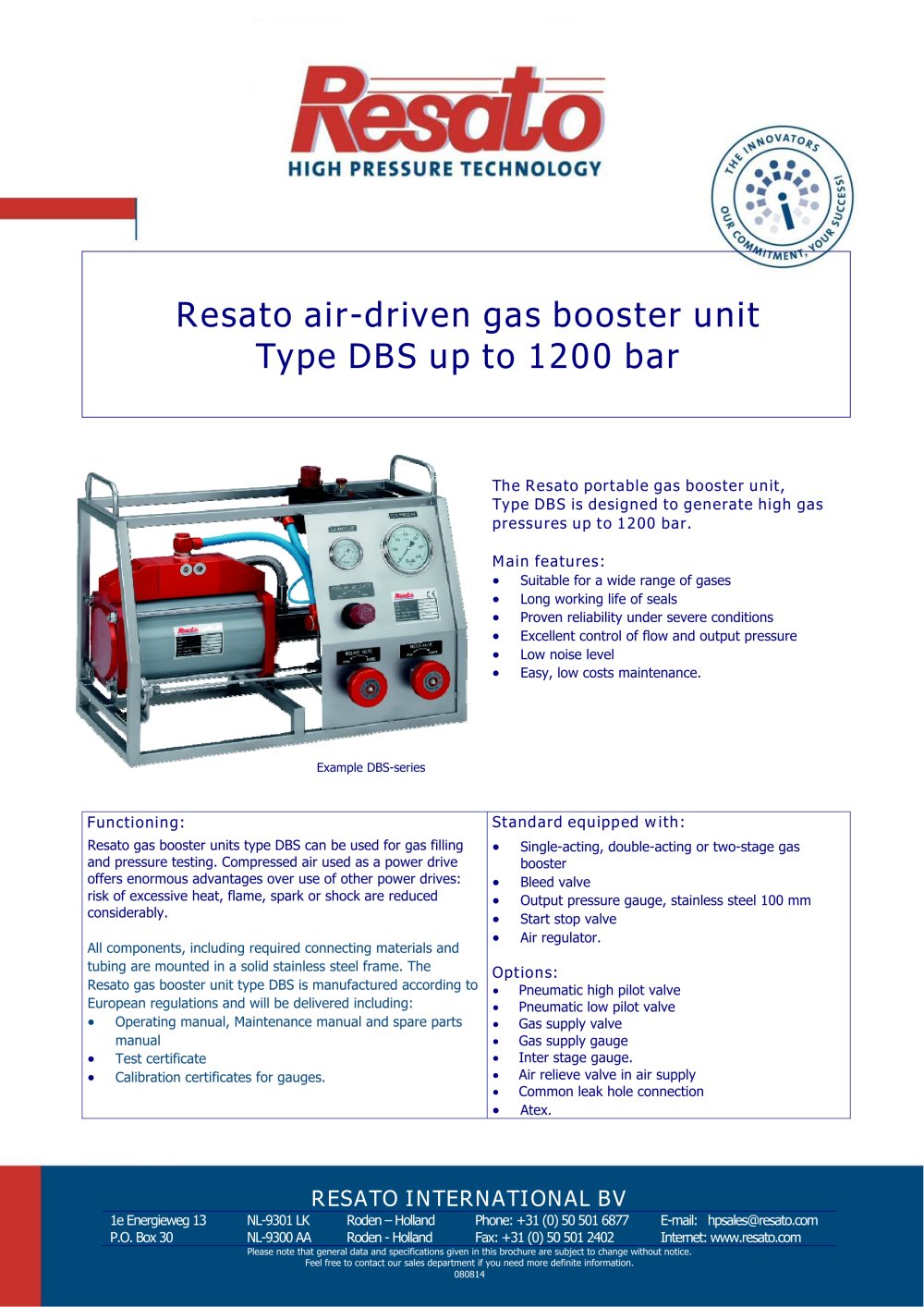

Resato air-driven gas booster unit Type DBS up to 1200 bar

The Resato portable gas booster unit, Type DBS is designed to generate high gas pressures up to 1200 bar.Main features:

Suitable for a wide range of gases Long working life of seals Proven reliability under severe conditions Excellent control of flow and output pressure Low noise level Easy, low costs maintenance.
Example DBS-series

Functioning:Standard equipped with:

Resato gas booster units type DBS can be used for gas filling and pressure testing. Compressed air used as a power drive offers enormous advantages over use of other power drives: risk of excessive heat, flame, spark or shock are reduced considerably.All components, including required connecting materials and tubing are mounted in a solid stainless steel frame. The Resato gas booster unit type DBS is manufactured according to European regulations and will be delivered including: Single-acting, double-acting or two-stage gas booster Bleed valve Output pressure gauge, stainless steel 100 mm Start stop valve Air regulator.

Options:

Pneumatic high pilot valve Pneumatic low pilot valve Operating manual, Maintenance manual and spare parts manual Gas supply valve Gas supply gauge Test certificate Inter stage gauge. Calibration certificates for gauges. Air relieve valve in air supply Common leak hole connection Atex.

RESATO INTERNATIONAL BV

1e Energieweg 13 P.O. Box 30NL-9301 LK NL-9300 AARoden – Holland Roden - HollandPhone: +31 (0) 50 501 6877 Fax: +31 (0) 50 501 2402E-mail: hpsales@resato.com Internet: www.resato.com
Please note that general data and specifications given in this brochure are subject to change without notice. Feel free to contact our sales department if you need more definite information. 080814
