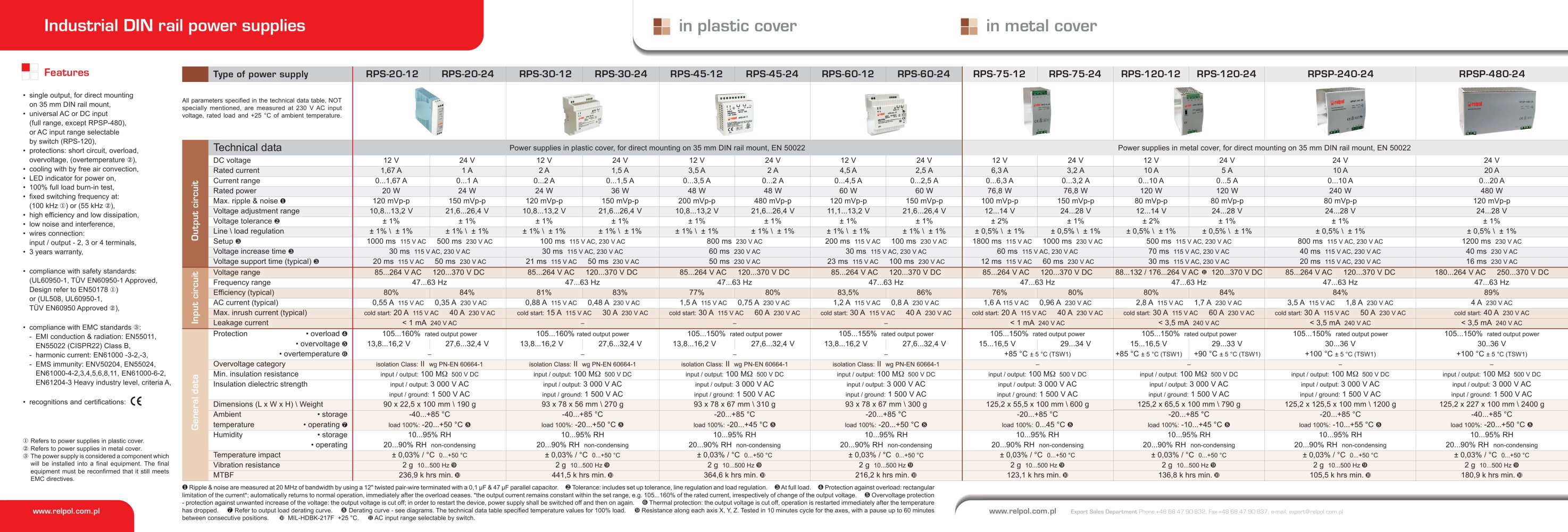

Industrial DIN rail power supplies
in plastic cover
in metal cover
■ Features
single output, for direct mounting on 35 mm DIN rail mount, universal AC or DC input (full range, except RPSP-480), or AC input range selectable by switch (RPS-120), protections: short circuit, overload, overvoltage, (overtemperature @), cooling with by free air convection, LED indicator for power on, 100% full load burn-in test, fixed switching frequency at: (100 kHz®) or (55 kHz®), high efficiency and low dissipation, low noise and interference, wires connection: input / output - 2, 3 or 4 terminals, 3 years warranty,
compliance with safety standards: (UL60950-1, TiV EN60950-1 Approved, Design refer to EN50178 ®) or (UL508, UL60950-1, TiVEN60950 Approved ®),
compliance with EMC standards ®:
- EMI conduction & radiation: EN55011, EN55022 (CISPR22) Class B,
- harmonic current: EN61000-3-2,-3,
- EMS immunity: ENV50204, EN55024, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN61204-3 Heavy industry level, criteria A,
recognitions and certifications: CC
RPS-2G-12
RPS-2G-24
RPS-3G-12
RPS-3G-24
RPS-45-12
RPS-45-24
RPS-BG-12
RPS-BG-24
RPS-75-12
RPS-75-24
RPS-12G-12 RPS-12G-24
RPSP-24G-24
RPSP-48G-24
Type of power supply
All parameters specified in the technical data table, NOT specially mentioned, are measured at 230 V AC input voltage, rated load and +25 °C of ambient temperature.
.LIU
tTS'e-
Technical data
Power supplies in plastic cover, for direct mc
unting on 35 mm DIN rail mount, EN 50022
Power supplies in metal cover, for direct mo
unting on 35 mm DIN rail mount, EN 50022
DC voltage
12 V
24 V
12 V
24 V
12 V
24 V
12 V
24 V
12 V
24 V
12 V
24 V
24 V
24 V
Rated current
1,67 A
1 A
2A
1,5 A
3,5 A
2A
4,5A
2,5 A
6,3A
3,2 A
10A
5A
10A
20 A
Current range
0...1,67A
0...1 A
0...2A
0...1,5 A
0...3,5A
0...2 A
0...4,5A
0...2,5 A
0...6,3A
0...3,2 A
0...10A
0...5 A
0...10A
0...20A
Rated power
20 W
24 W
24 W
36 W
48 W
48 W
60 W
60 W
76,8 W
76,8 W
120 W
120 W
240 W
480 W
Max. ripple & noise O
120 mVp-p
150 mVp-p
120 mVp-p
150 mVp-p
200 mVp-p
480 mVp-p
120 mVp-p
150 mVp-p
100 mVp-p
150 mVp-p
80 mVp-p
80 mVp-p
80 mVp-p
120 mVp-p
Voltage adjustment range
10,8...13,2 V
21,6...26,4 V
10,8...13,2 V
21,6...26,4 V
10,8...13,2 V
21,6...26,4 V
11,1...13,2 V
21,6...26,4 V
12...14 V
24...28 V
12...14 V
24...28 V
24...28 V
24...28 V
Voltage tolerance @
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
±2%
± 1%
±2%
± 1%
± 1%
± 1%
Line \ load regulation
±1%\±1%
± 1%\ ± 1%
±1%\ ± 1%
±1%\ ± 1%
±1%\±1%
± 1%\ ± 1%
±1%\±1%
± 1%\ ± 1%
±0,5%\ ± 1%
±0,5%\ ± 1%
±0,5%\ ± 1%
±0,5%\ ± 1%
±0,5%\ ± 1%
±0,5%\ ± 1%
Setup ©
1000 ms 115vac 500 ms 230vac
100 ms 115 vac, 230 vac
800 ms 230 vac
200 ms 115vac 100ms 230vac
1800ms 115vac 1000 ms 230vac
500 ms 115 vac, 230 vac
800 ms 115 vac, 230 vac
1200 ms 230vac
Voltage increase time ©
30 ms 115 vac, 230 vac
30 ms 115 vac, 230 vac
60 ms 230vac
30 ms 115 vac, 230 vac
60 ms 115 vac, 230 vac
70 ms 115 vac, 230 vac
40 ms 115 vac, 230 vac
40 ms 230vac
Voltage support time (typical) ©
20ms 115vac 50ms 230vac
21 ms 115vac 50ms 230vac
50 ms 230 vac
23ms 115vac 100 ms 230vac
12ms 115vac 60ms 230vac
30 ms 115 vac, 230 vac
20 ms 115 vac, 230 vac
16 ms 230 vac
Voltage range
85...264VAC 120...370VDC
85...264VAC 120...370VDC
85...264VAC 120...370VDC
85...264VAC 120...370VDC
85...264VAC 120...370VDC
88...132/ 176...264VAC © 120...370 V DC
85...264VAC 120...370VDC
180...264VAC 250...370VDC
Frequency range
47...63 Hz
47...63 Hz
47...63 Hz
47...63 Hz
47...63 Hz
47...63 Hz
47...63 Hz
47...63 Hz
Efficiency (typical)
80%
84%
81%
83%
77%
80%
83,5%
86%
76%
80%
80%
84%
84%
89%
AC current (typical)
0,55A 115vac 0,35A 230vac
0,88A 115vac 0,48A 230vac
1,5 A 115 vac 0,75 A 230 vac
1,2A 115vac 0,8A 230vac
1,6A115vac 0,96A 230vac
2,8A 115vac 1,7 A 230vac
3,5A 115vac 1,8A 230vac
4A 230vac
Max. inrush current (typical)
cold start: 20 A 115 VAC 40 A 230 VAC
cold start: 15A 115VAC 30 A 230VAC
cold start: 30 A 115 V AC 60 A 230 V AC
cold start: 30 A 115 V AC 40 A 230 V AC
cold start: 20 A 115 VAC 40 A 230 VAC
cold start: 30 A 115 VAC 60 A 230 VAC
cold start: 30 A 115 V AC 50 A 230 V AC
cold start: 40 A 230 VAC
Leakage current
< 1 mA 240 VAC
-
-
-
< 1 mA 240 VAC
<3,5 mA 240VAC
< 3,5 mA 240VAC
< 3,5 mA 240 VAC
Protection • overload 0
105...160% rated output power
105...160% rated output power
105...150% rated output power
105...155% rated output power
105...150% rated output power
105...150% rated output power
105...150% rated output power
105...150% rated output power
• overvoltage ©
13,8...16,2 V
27,6...32,4 V
13,8...16,2 V
27,6...32,4 V
13,8...16,2 V
27,6...32,4 V
13,8...16,2 V
27,6...32,4 V
15...16,5 V
29...34 V
15...16,5 V
29...33 V
30...36 V
30..36 V
• overtemperature ©
-
-
-
-
+85 °C±5°C (TSW1)
+85 °C±5°C (TSW1)
+90 °C±5°C (TSW1)
+ 100 °C±5°C (TSW1)
+ 100 °C±5°C(TSW1)
Overvoltage category
isolation Class: II wg PN-EN 60664-1
isolation Class: II wg PN-EN 60664-1
isolation Class: II wg PN-EN 60664-1
isolation Class: II wg PN-EN 60664-1
-
-
-
-
Min. insulation resistance
input/output: 100 MQ 500VDC
input/output: 100 MQ 500VDC
input/output: 100 MQ 500VDC
input/output: 100 MQ 500VDC
input/output: 100 MQ 500VDC
input/output: 100 MQ 500VDC
input/output: 100 MQ 500VDC
input/output: 100 MQ 500VDC
Insulation dielectric strength
input/output: 3 000 VAC
input/output: 3 000 VAC
input/output: 3 000 VAC
input/output: 3 000 VAC
input/output: 3 000 VAC
input/output: 3 000 VAC
input/output: 3 000 VAC
input/output: 3 000 VAC
input/ground: 1 500 VAC
input/ground: 1 500 VAC
input/ground: 1 500 VAC
input/ground: 1 500 VAC
input/ground: 1 500 VAC
input/ground: 1 500 VAC
input/ground: 1 500 VAC
input/ground: 1 500 VAC
Dimensions (L xWxH)\ Weight
90x22,5x 100 mm\190g
93x78x 56 mm \ 270 g
93x78x67 mm\310g
93x78x 67 mm \ 300 g
125,2x55,5x 100 mm \ 600 g
125,2x65,5x 100 mm \ 790 g
125,2 x 125,5 x 100 mm \ 1200 g
125,2x227x 100mm\2400g
Ambient^ storage
-40...+85 °C
-40...+85 °C
-20...+85 °C
-20...+85 °C
-20...+85 °C
-20...+85 °C
-20...+85 °C
-40...+85 °C
temperature • operating ©
load 100%: -20...+50 °C ©
load 100%: -20...+50 °C ©
load 100%: -20...+45 °C ©
load100%:-20...+50 °C ©
load 100%: 0...45 °C ©
load100%:-10...+45 °C ©
load100%:-10...+55 °C ©
load 100%: -20...+50 °C ©
Humidity • storage
10...95% RH
10...95% RH
10...95% RH
10...95% RH
10...95% RH
10...95% RH
10...95% RH
10...95% RH
• operating
20...90% RH non-condensing
20...90% RH non-condensing
20...90% RH non-condensing
20...90% RH non-condensing
20...90% RH non-condensing
20...90% RH non-condensing
20...90% RH non-condensing
20...90% RH non-condensing
Temperature impact
±0,03%/°C 0...+50°C
±0,03%/°C 0...+50°C
±0,03%/°C 0...+50°C
±0,03%/°C 0...+50°C
±0,03%/°C 0...+50°C
±0,03%/°C 0...+50°C
±0,03%/°C 0...+50°C
±0,03%/°C 0...+50°C
Vibration resistance
2g 10...500Hz©
2g 10...500 HZ©
2g 10...500 Hz©
2g 10...500Hz©
2g 10...500Hz©
2g 10...500Hz©
2g 10...500Hz©
2g 10...500Hz©
MTBF
236,9 k hrs min. ®
441,5khrs min.®
364,6 khrsmin.®
216,2khrs min.®
123,1 khrsmin. ®
136,8khrsmin.®
105,5khrs min.®
180,9khrs min.®
,4J
o
4J Q.
4-3
® Refers to power supplies in plastic cover.
@ Refers to power supplies in metal cover.
© The power supply is considered a component which will be installed into a final equipment. The final equipment must be reconfirmed that it still meets EMC directives.
O Ripple & noise are measured at 20 MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0,1 uF & 47 uF parallel capacitor. ©Tolerance: includes set up tolerance, line regulation and load regulation. ©Atfullload. 0 Protection against overload: rectangular limitation of the current*; automatically returns to normal operation, immediately after the overload ceases. *the output current remains constant within the set range, e.g. 105...160% of the rated current, irrespectively of change of the output voltage. © Overvoltage protection - protection against unwanted increase of the voltage: the output voltage is cut off; in order to restart the device, power supply shall be switched off and then on again. © Thermal protection: the output voltage is cut off, operation is restarted immediately after the temperature has dropped. ® Refertooutput load derating curve. © Derating curve-see diagrams. Thetechnical data table specifiedtemperature valuesfor 100% load. ©Resistance along each axis X, Y, Z. Tested in 10 minutes cycle for the axes, with a pause up to 60 minutes betweenconsecutivepositions. © MIL-HDBK-217F +25°C. <DACinputrangeselectablebyswitch.
www.relpol.com.pl
www.relpol.com.pl
Export Sales Department Phone +48 68 47 90 832, Fax +48 68 47 90 837, e-mail: export@relpol.com.i
