| Technical data circuit-breakers | ||||||||||||||||||||
| g | ||||||||||||||||||||

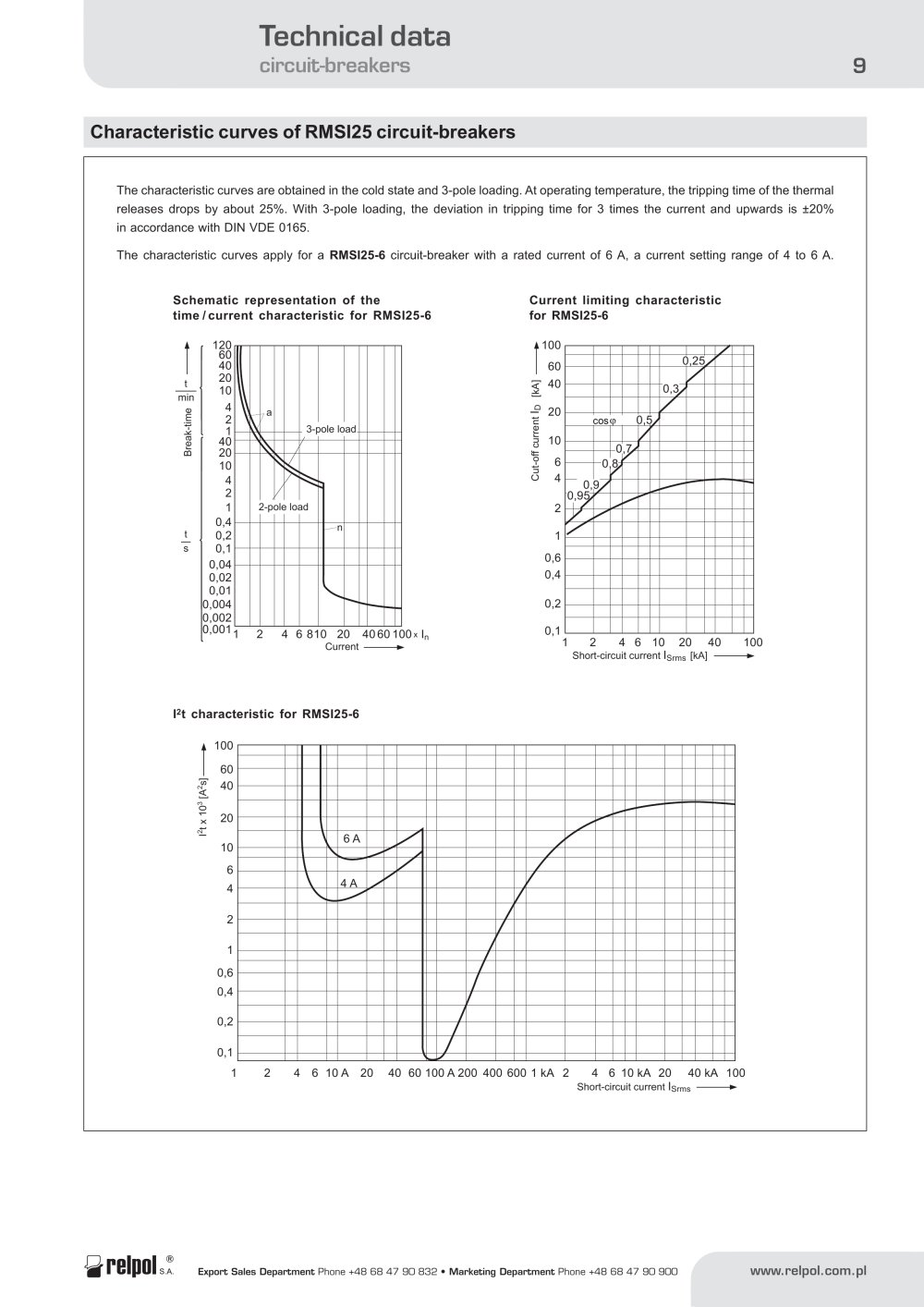

| Characteristic curves of RMSI25 circuit-breakers | ||||||||||||||||||||
| The characteristic curves are obtained in the cold state and 3-pole loading. At operating temperature, the tripping time of the thermal releases drops by about 25%. With 3-pole loading, the deviation in tripping time for 3 times the current and upwards is ±20% in accordance with DIN VDE 0165. The characteristic curves apply for a RMSI25-6 circuit-breaker with a rated current of 6 A, a current setting range of 4 to 6 A. | ||||||||||||||||||||
| Schematic representation of the Current limiting characteristic time/current characteristic for RMSI25-6 for RMSI25-6 | ||||||||||||||||||||
| Short-circuit current Isi-ms [kA] | ||||||||||||||||||||
| I2t characteristic for RMSI25-6 | ||||||||||||||||||||
| * rei poi | ||||||||||||||||||||
