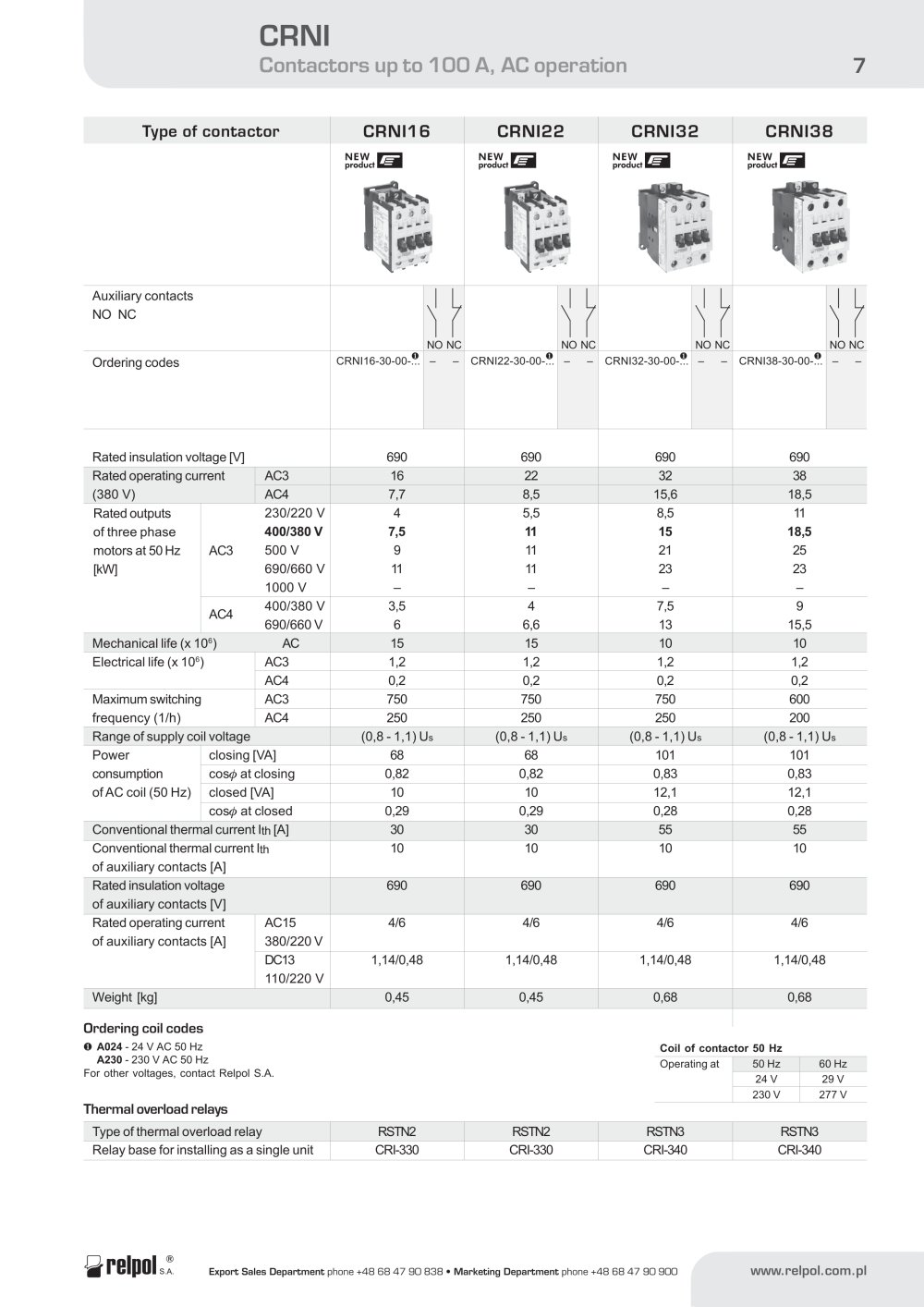

CRNI
Contactors up to 100 A, AC operation
7
CRNI16
CRNI22
CRNI32
CRNI38
Type of contactor
Auxiliary contacts NO NC
NO NC
NO NC
NO NC
NO NC
Ordering codes
CRNI16-30-00-*.
CRNI22-30-00-*.
CRNI32-30-00-*.
CRNI38-30-00-*.
Rated insulation voltage [V]
690
690
690
690
Rated operating current (380 V)
AC3
16
22
32
38
AC4
7,7
8,5
15,6
18,5
Rated outputs of three phase motors at 50 Hz [kW]
230/220 V 400/380 V
AC3 500 V
690/660 V 1000 V
4
7,5
9
11
5,5 11
11
11
8,5
15
21
23
11
18,5
25
23
AC4 400/380 V 690/660 V
3,5 6
4
6,6
7,5 13
9
15,5
Mechanical life (x 106) AC
15
15
10
10
Electrical life (x 106)
AC3
1,2
1,2
1,2
1,2
AC4
0,2
0,2
0,2
0,2
Maximum switching frequency (1/h)
AC3
750
750
750
600
AC4
250
250
250
200
Range of supply coil voltage
(0,8 - 1,1) Us
(0,8 - 1,1) Us
(0,8 - 1,1) Us
(0,8 - 1,1) Us
Power
consumption
of AC coil (50 Hz)
closing [VA]
68
68
101
101
cos^ at closing
0,82
0,82
0,83
0,83
closed [VA]
10
10
12,1
12,1
cos^ at closed
0,29
0,29
0,28
0,28
Conventional thermal current Ith [A]
30
30
55
55
Conventional thermal current Ith of auxiliary contacts [A]
10
10
10
10
Rated insulation voltage of auxiliary contacts [V]
690
690
690
690
Rated operating current of auxiliary contacts [A]
AC15
380/220 V
4/6
4/6
4/6
4/6
DC13 110/220 V
1,14/0,48
1,14/0,48
1,14/0,48
1,14/0,48
Weight [kg]
0,45
0,45
0,68
0,68
Ordering coil codes
© A024 - 24 V AC 50 Hz A230 - 230 V AC 50 Hz
For other voltages, contact Relpol S.A.
Thermal overload relays
Coil of contactor 50 Hz
Operating at
50 Hz
60 Hz
24 V
29 V
230 V
277 V
Type of thermal overload relay
RSTN2
RSTN2
RSTN3
RSTN3
Relay base for installing as a single unit
CRI-330
CRI-330
CRI-340
CRI-340
* relpol
S.A. Export Sales Department phone +48 68 47 90 838 • Marketing Department phone +48 68 47 90 900 www.relpol.com.pl
