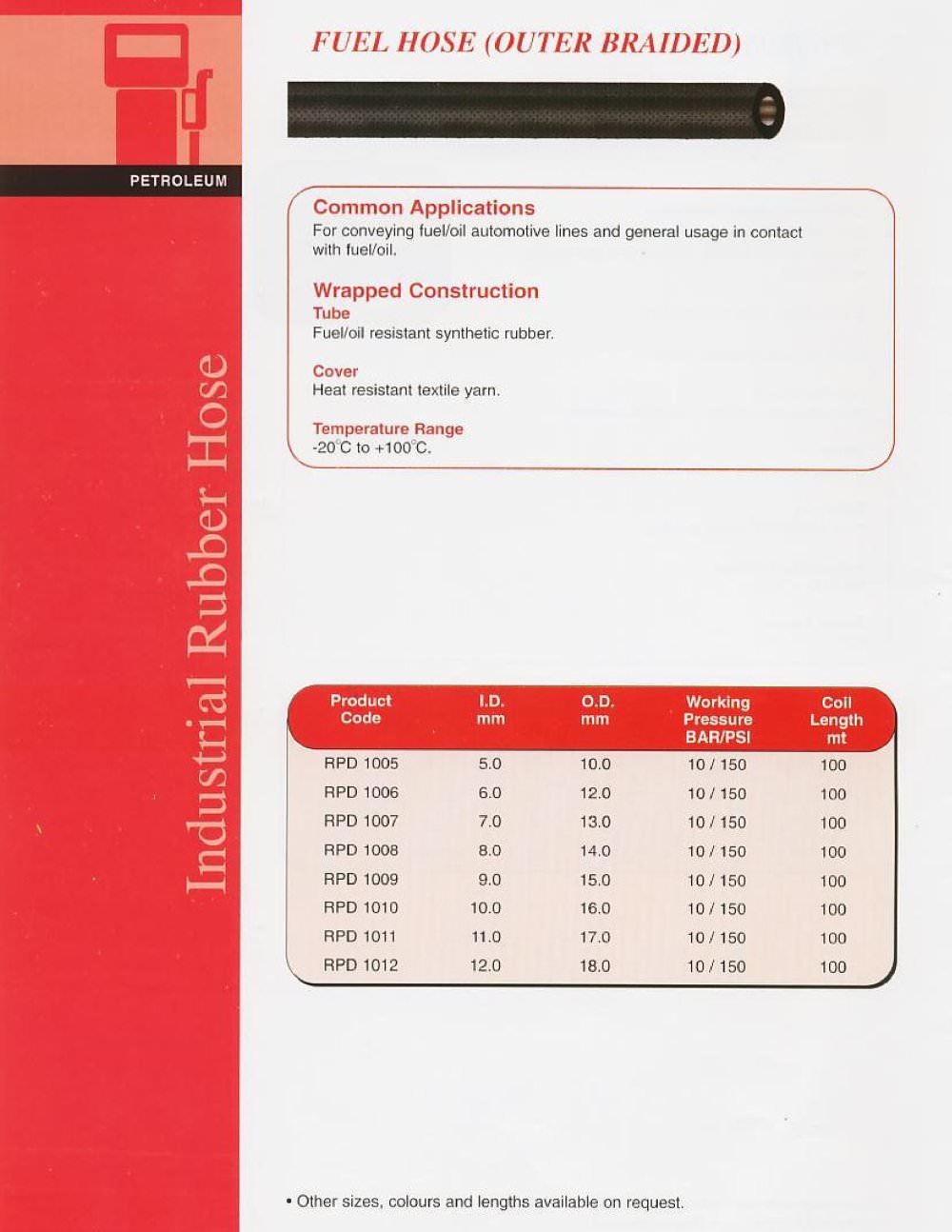

FUEL HOSE (OUTER BRAIDED)
PETROLEUM
For conveying fuel/oil automotive lines and general usage in contact with fuel/oil.
Wrapped Construction
Tube
Fuel/oil resistant synthetic rubber. Cover
Heat resistant textile yarn.
Temperature Range -20 C to+100 C.
Product Code
I.D. mm
O.D. mm
Working Pressure BAR7PSI
Coil Length mt
RPD 1005
5.0
10.0
10/150
100
RPD 1006
6.0
12.0
10/150
100
RPD 1007
7.0
13.0
10/150
100
RPD 1008
8.0
14.0
10/150
100
RPD 1009
9.0
15.0
10/150
100
RPD 1010
10.0
16.0
10/150
100
RPD 1011
11.0
17.0
10/150
100
RPD 1012
12.0
18.0
10/150
100
Other sizes, colours and lengths available on request.
