- 1 -

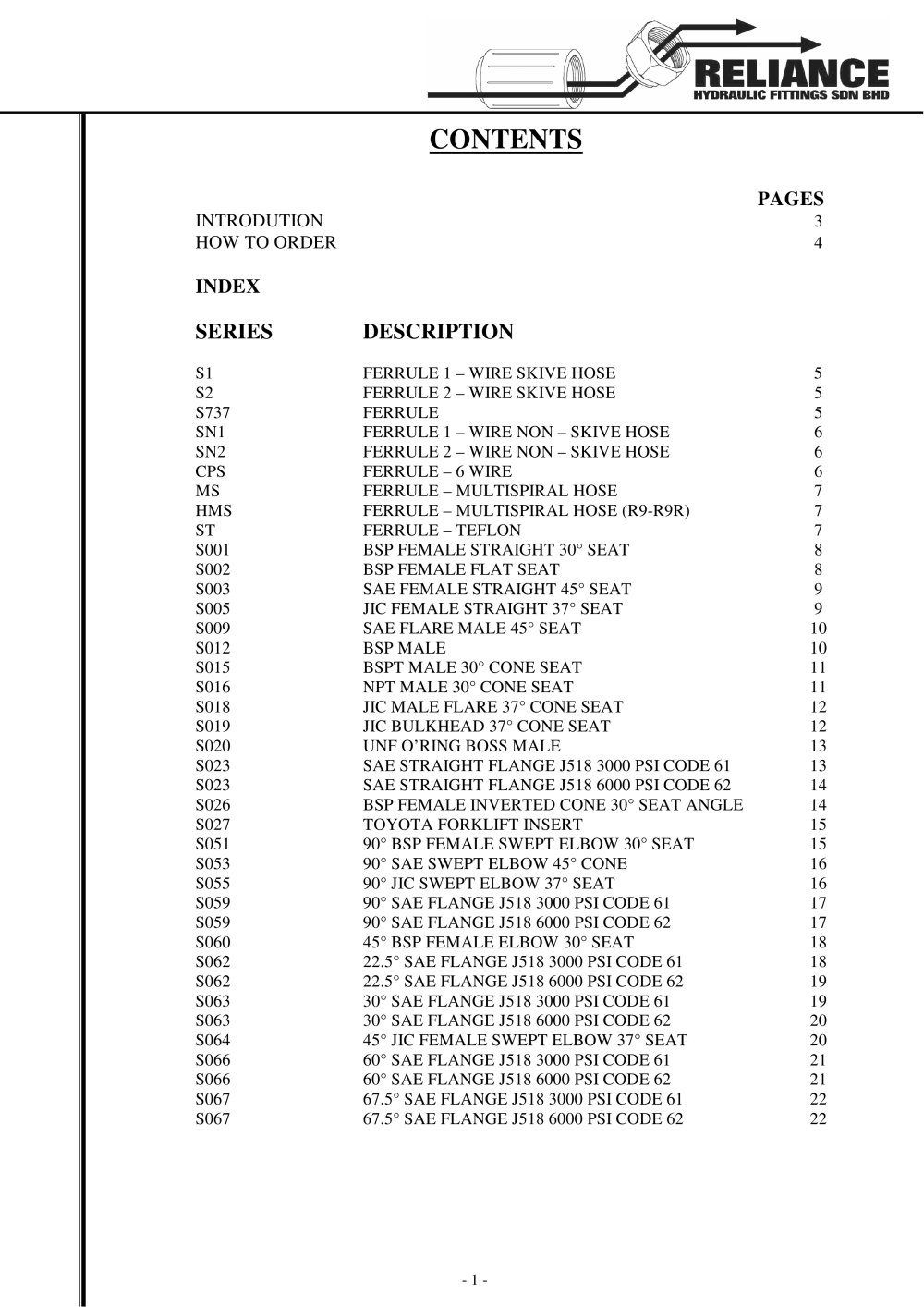

Hydraulic Fitting - 37225 CONTENTS

PAGES

INTRODUTION

3

HOW TO ORDER

4

INDEX

SERIES DESCRIPTION

S1 FERRULE 1 – WIRE SKIVE HOSE 5 S2 FERRULE 2 – WIRE SKIVE HOSE 5 S737 FERRULE 5 SN1 FERRULE 1 – WIRE NON – SKIVE HOSE 6 SN2 FERRULE 2 – WIRE NON – SKIVE HOSE 6 CPS FERRULE – 6 WIRE 6 MS FERRULE – MULTISPIRAL HOSE 7 HMS FERRULE – MULTISPIRAL HOSE (R9-R9R) 7 ST FERRULE – TEFLON 7 S001 BSP FEMALE STRAIGHT 30° SEAT 8 S002 BSP FEMALE FLAT SEAT 8 S003 SAE FEMALE STRAIGHT 45° SEAT 9 S005 JIC FEMALE STRAIGHT 37° SEAT 9 S009 SAE FLARE MALE 45° SEAT 10 S012 BSP MALE 10 S015 BSPT MALE 30° CONE SEAT 11 S016 NPT MALE 30° CONE SEAT 11 S018 JIC MALE FLARE 37° CONE SEAT 12 S019 JIC BULKHEAD 37° CONE SEAT 12 S020 UNF O’RING BOSS MALE 13 S023 SAE STRAIGHT FLANGE J518 3000 PSI CODE 61 13 S023 SAE STRAIGHT FLANGE J518 6000 PSI CODE 62 14 S026 BSP FEMALE INVERTED CONE 30° SEAT ANGLE 14 S027 TOYOTA FORKLIFT INSERT 15 S051 90° BSP FEMALE SWEPT ELBOW 30° SEAT 15 S053 90° SAE SWEPT ELBOW 45° CONE 16 S055 90° JIC SWEPT ELBOW 37° SEAT 16 S059 90° SAE FLANGE J518 3000 PSI CODE 61 17 S059 90° SAE FLANGE J518 6000 PSI CODE 62 17 S060 45° BSP FEMALE ELBOW 30° SEAT 18 S062 22.5° SAE FLANGE J518 3000 PSI CODE 61 18 S062 22.5° SAE FLANGE J518 6000 PSI CODE 62 19 S063 30° SAE FLANGE J518 3000 PSI CODE 61 19 S063 30° SAE FLANGE J518 6000 PSI CODE 62 20 S064 45° JIC FEMALE SWEPT ELBOW 37° SEAT 20 S066 60° SAE FLANGE J518 3000 PSI CODE 61 21 S066 60° SAE FLANGE J518 6000 PSI CODE 62 21 S067 67.5° SAE FLANGE J518 3000 PSI CODE 61 22 S067 67.5° SAE FLANGE J518 6000 PSI CODE 62 22
