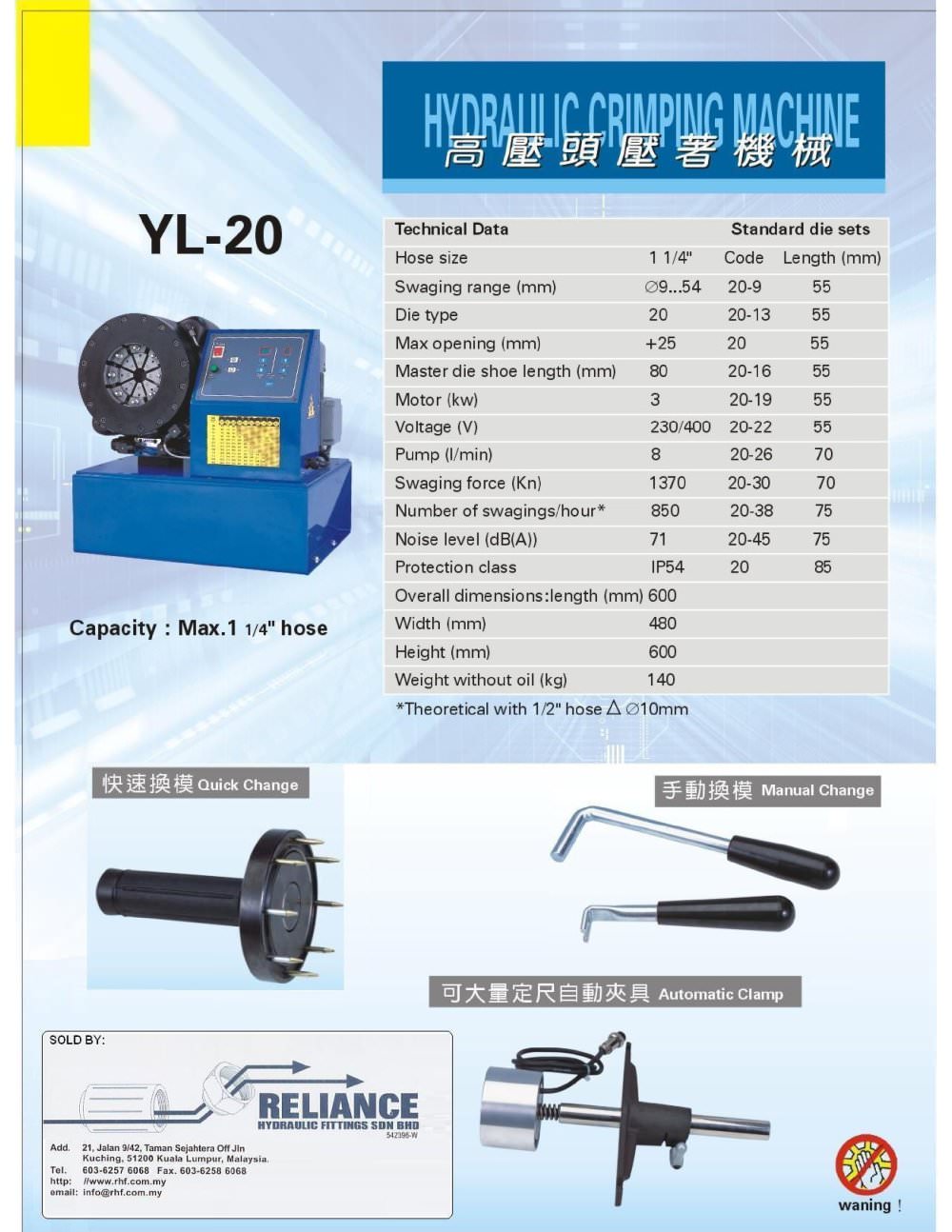

YL-20


Technical Data		Standard die sets
Hose size	1 1/4"	Code	Length (mm)
Swaging range (mm)	09...54	20-9	55
Die type	20	20-13	55
Max opening (mm)	+25	20	55
Master die shoe length (mm)	80	20-16	55
Motor (kw)	3	20-19	55
Voltage (V)	230/400	20-22	55
Pump (l/min)	00	20-26	70
Swaging force (Kn)	1370	20-30	70
Number of swagings/hour*	850	20-38	75
Noise level (dB(A))	71	20-45	75
Protection class	IP54	20	85
Overall dimensions:length (mm	600
Width (mm)	480
Height (mm)	600
Weight without oil (kg)	140

Capacity : Max.1 1/4" hose

^Theoretical with 1/2" hose A 010mm

Quick Change

Manual Change

°IXS!^Rêil]^S Automatic Clamp

SOLD BY:

RELIANCE

HYDRAULIC FITTINGS SDN BHD

S42396-W

Add. 21, Jalan 9/42, Taman Sojahiera Off Jln

Kuching, 51200 Kuala Lumpur, Malaysia. Tel. 603-6257 6068 Fax. 603-6258 6068 http: //www.rhf.com.my email: info@rhf.com.my

waning !
