2200

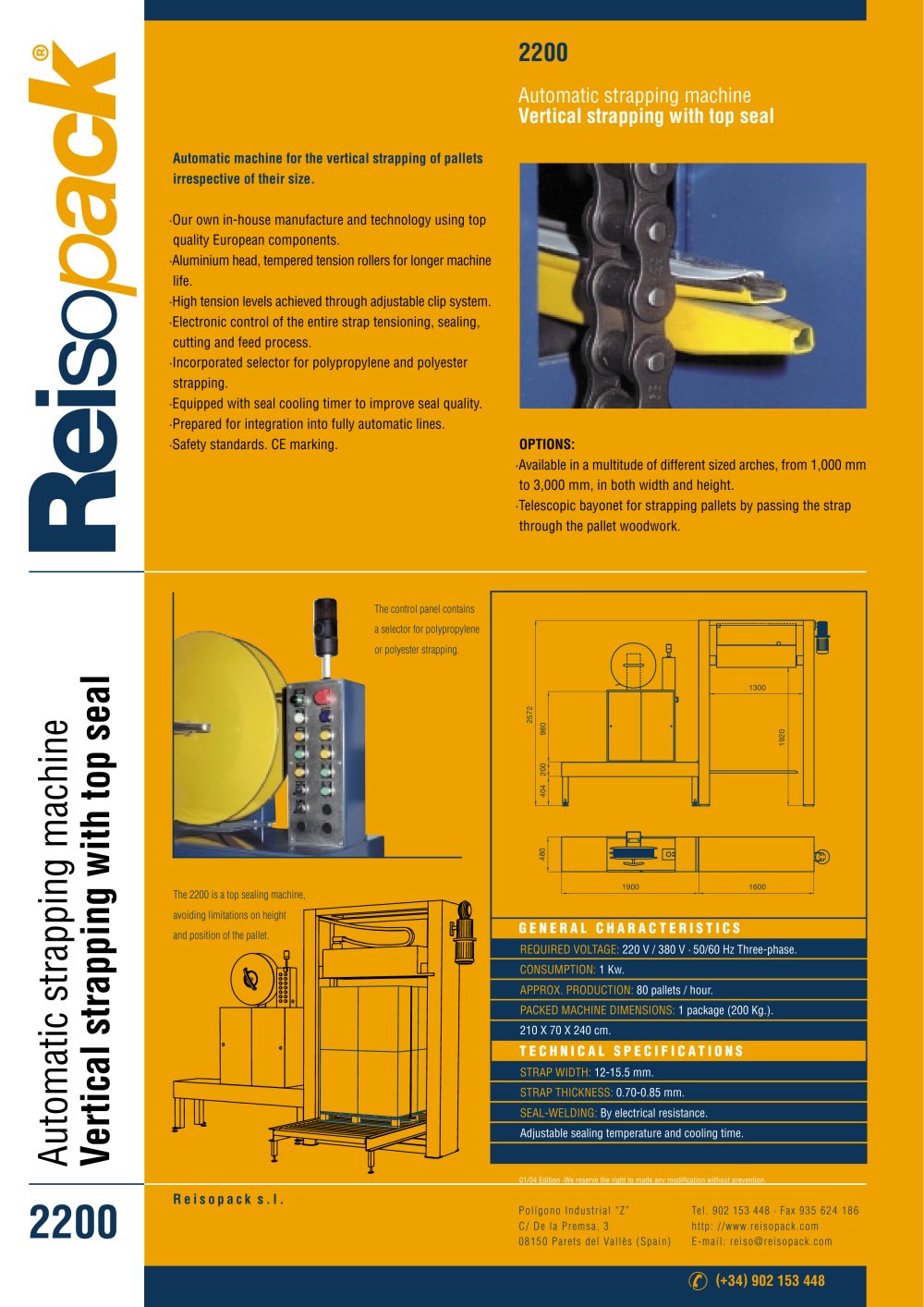

Automatic strapping machine Vertical strapping with top seal
Automatic machine for the vertical strapping of pallets irrespective of their size. ·Our own in-house manufacture and technology using top quality European components.·Aluminium head, tempered tension rollers for longer machinelife.·High tension levels achieved through adjustable clip system.·Electronic control of the entire strap tensioning, sealing, cutting and feed process.·Incorporated selector for polypropylene and polyester strapping.·Equipped with seal cooling timer to improve seal quality. ·Prepared for integration into fully automatic lines. ·Safety standards. CE marking. OPTIONS: ·Available in a multitude of different sized arches, from 1,000 mmto 3,000 mm, in both width and height.·Telescopic bayonet for strapping pallets by passing the strap through the pallet woodwork.The control panel containsa selector for polypropylene or polyester strapping. 1300 1920 2572980200404 480 19001600 The 2200 is a top sealing machine,avoiding limitations on height and position of the pallet. GENERAL CHARACTERISTICSTECHNICAL SPECIFICATIONS
REQUIRED VOLTAGE: 220 V / 380 V ·50/60 Hz Three-phase.CONSUMPTION: 1 Kw.APPROX. PRODUCTION: 80 pallets / hour.PACKED MACHINE DIMENSIONS: 1 package (200 Kg.).210 X 70 X 240 cm.STRAP WIDTH: 12-15.5 mm.STRAP THICKNESS: 0.70-0.85 mm.SEAL-WELDING: By electrical resistance.Adjustable sealing temperature and cooling time. Automatic strapping machine Vertical strapping with top seal 01/04 Edition ·We reserve the right to made any modification without prevention. Reisopack s.l.
