1900

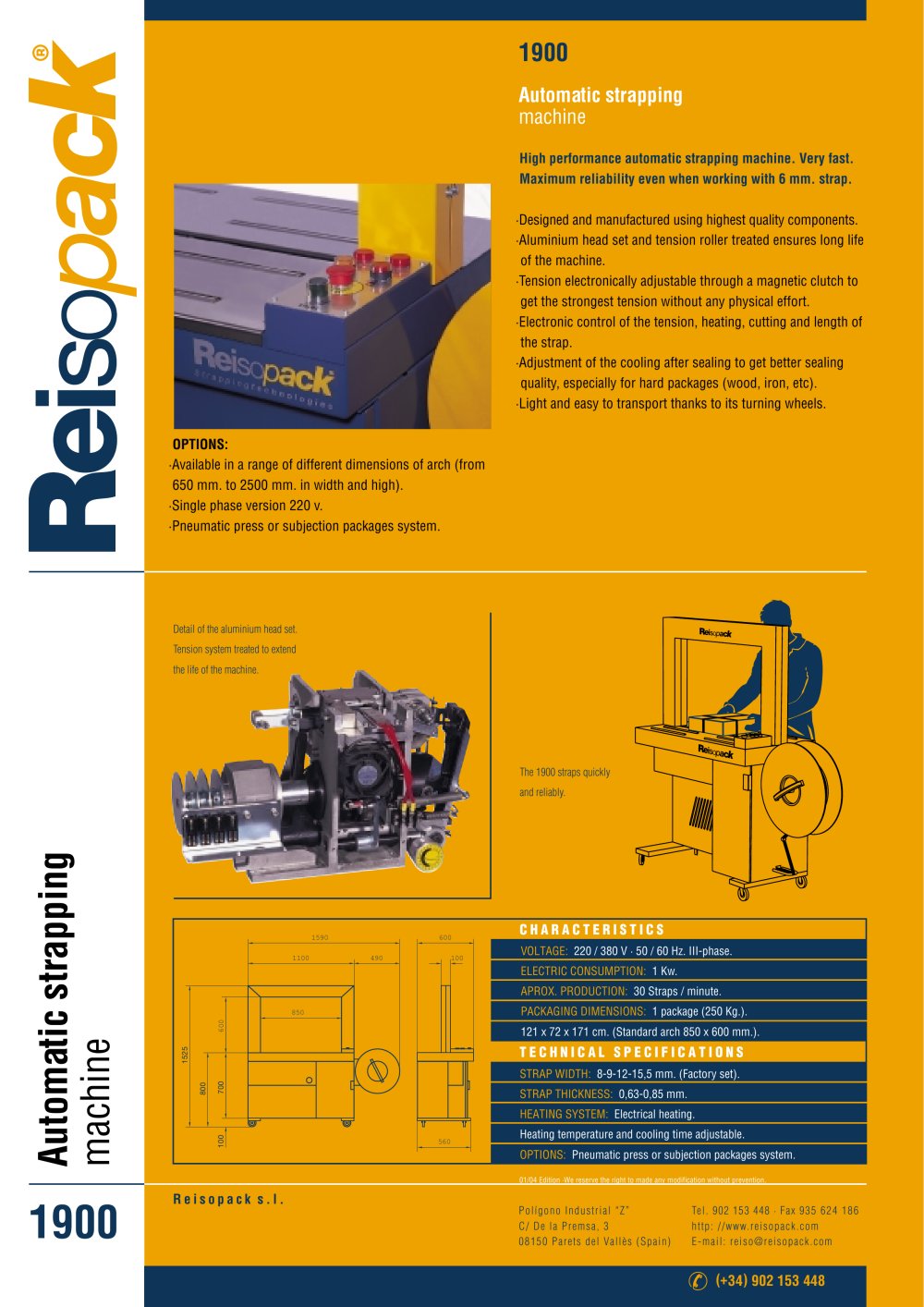

Automatic strapping machine
High performance automatic strapping machine. Very fast. Maximum reliability even when working with 6 mm. strap. ·Designed and manufactured using highest quality components.·Aluminium head set and tension roller treated ensures long lifeof the machine.·Tension electronically adjustable through a magnetic clutch to get the strongest tension without any physical effort.·Electronic control of the tension, heating, cutting and length of the strap.·Adjustment of the cooling after sealing to get better sealing quality, especially for hard packages (wood, iron, etc).·Light and easy to transport thanks to its turning wheels. OPTIONS: ·Available in a range of different dimensions of arch (from 650 mm. to 2500 mm. in width and high).·Single phase version 220 v. ·Pneumatic press or subjection packages system.Detail of the aluminium head set.Tension system treated to extend the life of the machine.The 1900 straps quicklyand reliably. CHARACTERISTICS
VOLTAGE: 220 / 380 V · 50 / 60 Hz. III-phase.ELECTRIC CONSUMPTION: 1 Kw.APROX. PRODUCTION: 30 Straps / minute.PACKAGING DIMENSIONS: 1 package (250 Kg.).121 x 72 x 171 cm. (Standard arch 850 x 600 mm.). 85011001590490600100 560 600 1525800700 TECHNICAL SPECIFICATIONS
STRAP WIDTH: 8-9-12-15,5 mm. (Factory set).STRAP THICKNESS: 0,63-0,85 mm.HEATING SYSTEM: Electrical heating.Heating temperature and cooling time adjustable. OPTIONS: Pneumatic press or subjection packages system. 100 Automatic strapping machine 01/04 Edition ·We reserve the right to made any modification without prevention. Reisopack s.l.
