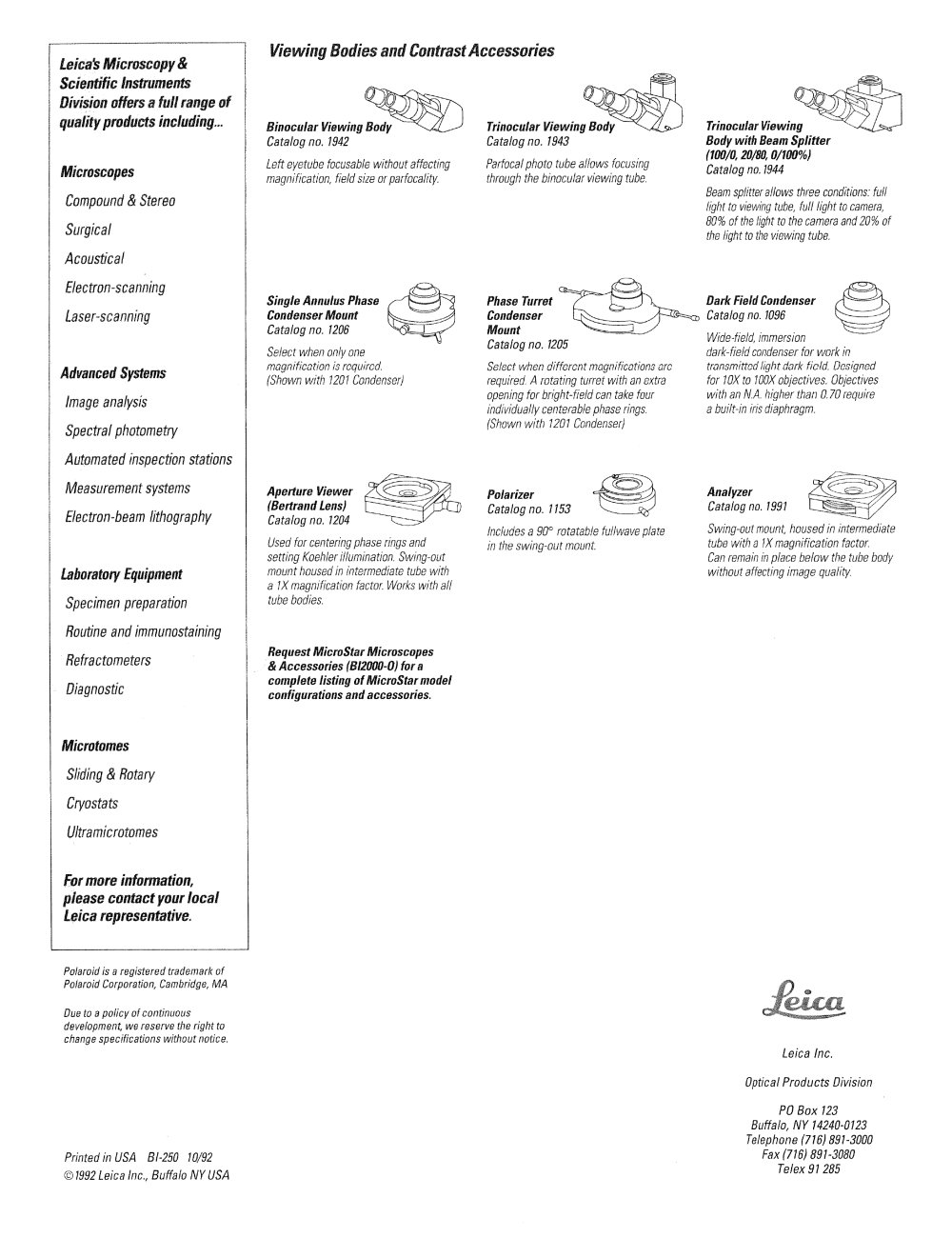

| Viewing Bodies and Contrast Accessories | ||||||||||||||||||||||||||||||||||||
| Leva's Microscopy & bcientmc instruments Division offers a full range of quality products including... Compound & Stereo Surgical Acoustical Electron-scanning Laser-scanning Advanced Systems Image analysis Spectral photometry Automated inspection stations Measurement systems Electron-beam lithography Laboratory Equipment Specimen preparation Routine and immunostaining Refractometers Diagnostic Microtomes Sliding & Rotary Cryostats Ultramicrotomes For more information, please contact your local Leica representative. Polaroid is a registered trademark of Polaroid Corporation, Cambridge, MA Due to a policy of continuous development, we reserve the right to change specifications without notice. | ||||||||||||||||||||||||||||||||||||
| Trinocular Viewing Body with Beam Splitter (100/0, 20/80, 0/100%) Catalog no. 1944 Beam splitter allows three conditions: full light to viewing tube, full light to camera, 80% of the light to the camera and 20% of the light to the viewing tube. | ||||||||||||||||||||||||||||||||||||
| Trinocular Viewing Body Catalog no. 1943 Parfocal photo tube allows focusing through the binocular viewing tube. | ||||||||||||||||||||||||||||||||||||
| Binocular Viewing Body Catalog no. 1942 Left eyetube focusable without affecting magnification, field size orparfocality. | ||||||||||||||||||||||||||||||||||||
| Dark Field Condenser Catalog no. 1096 Wide-field, immersion dark-field condenser for work in transmitted light dark-field. Designed for WXto WOX objectives. Objectives with an N.A. higher than 0.70 require a built-in iris diaphragm. | ||||||||||||||||||||||||||||||||||||
| Condei Catalog no. 1206 Select when only one magnification is required. (Shown with 1201 Condenser) | ||||||||||||||||||||||||||||||||||||
| Catalog no. 1205 Select when different magnifications are required. A rotating turret with an extra opening for bright-field can take four individually centerable phase rings. (Shown with 1201 Condenser) | ||||||||||||||||||||||||||||||||||||
| Aperture Viewer ^^^^^ (Bertrand Lens) {^^=E^pXi Catalog no. 1204 Used for centering phase rings and setting Koehler illumination. Swing-out mount housed in intermediate tube with a 1X magnification factor. Works with ail tube bodies. | ||||||||||||||||||||||||||||||||||||
| Analyzer Catalog no. 1991 | ||||||||||||||||||||||||||||||||||||
| Polarizer Catalog no. 7153 | ||||||||||||||||||||||||||||||||||||
| Swing-out mount, housed in intermediate tube with a 1X magnification factor. Can remain in place below the tube body without affecting image quality. | ||||||||||||||||||||||||||||||||||||
| Includes a 90° rotatable fullwave plate in the swing-out mount. | ||||||||||||||||||||||||||||||||||||
| & Accessories (BI2000-0) for a complete listing of MicroStar model configurations and accessories. | ||||||||||||||||||||||||||||||||||||
| Leica Inc. | ||||||||||||||||||||||||||||||||||||
| Optical Products Division PO Box 123 Buffalo, NY 14240-0123 Telephone (716) 891-3000 Fax (716) 891-3080 Telex 91285 | ||||||||||||||||||||||||||||||||||||
| Printed in USA Bi-250 10/92 © 1992 Leica Inc., Buffalo NY USA | ||||||||||||||||||||||||||||||||||||
