Reichert r

2

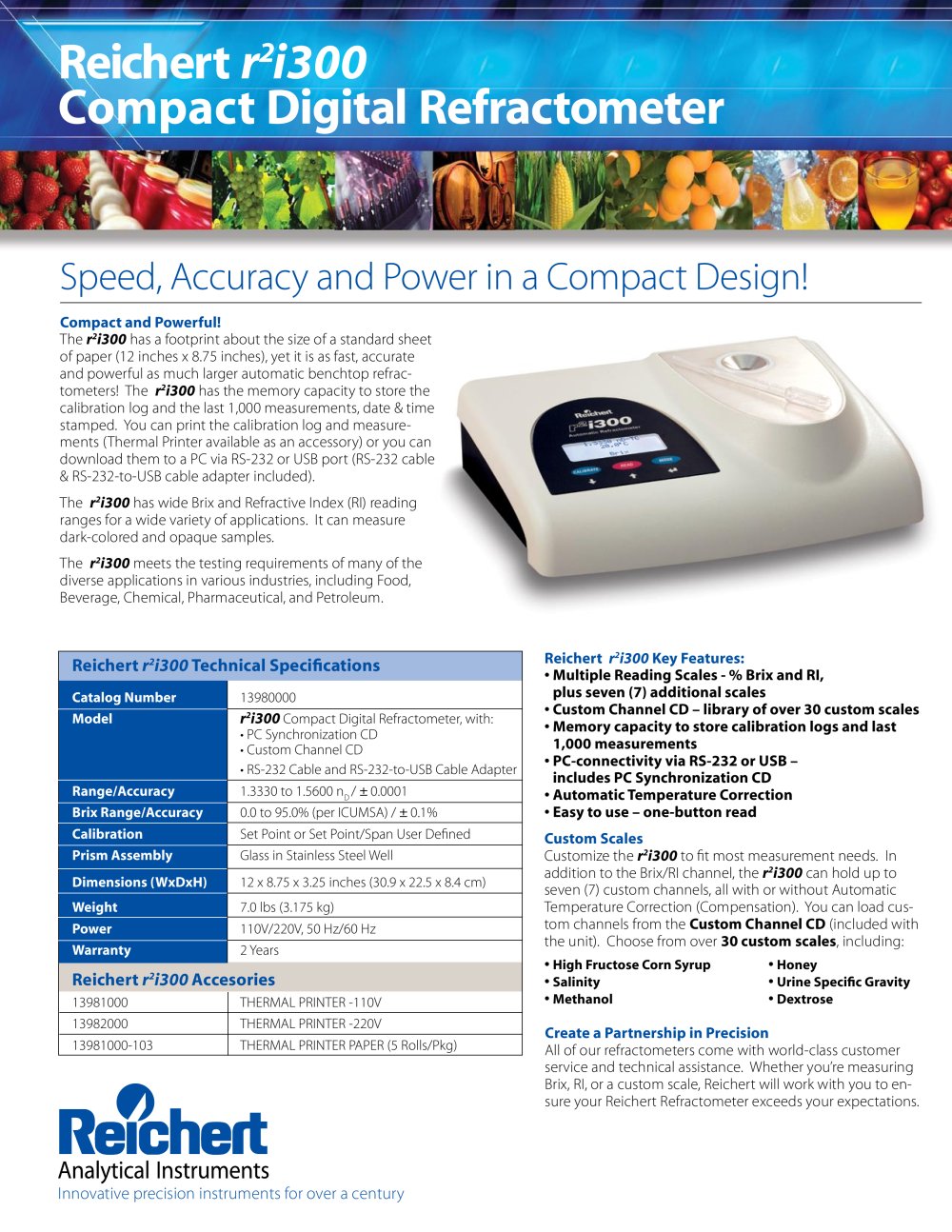

i300 Compact Digital Refractometer

Speed, Accuracy and Power in a Compact Design!

Compact and Powerful! r The r
2 i300 has a footprint about the size of a standard sheet of paper (12 inches x 8.75 inches), yet it is as fast, accurate and powerful as much larger automatic benchtop refrac- tometers! The r
2 i300 has the memory capacity to store the calibration log and the last 1,000 measurements, date & time stamped. You can print the calibration log and measure- ments (Thermal Printer available as an accessory) or you can download them to a PC via RS-232 or USB port (RS-232 cable & RS-232-to-USB cable adapter included).The
2 i300 has wide Brix and Refractive Index (RI) reading ranges for a wide variety of applications. It can measure dark-colored and opaque samples. The r
2 i300 meets the testing requirements of many of the diverse applications in various industries, including Food, Beverage, Chemical, Pharmaceutical, and Petroleum.

Reichert r

2

i300 Technical Specifications

Reichert r
2 i300 Key Features: • Multiple Reading Scales - % Brix and RI, plus seven (7) additional scales• Custom Channel CD – library of over 30 custom scales • Memory capacity to store calibration logs and last 1,000 measurements• PC-connectivity via RS-232 or USB – includes PC Synchronization CD• Automatic Temperature Correction • Easy to use – one-button read
Catalog Number 13980000 Model r
2 i300
Compact Digital Refractometer, with: • PC Synchronization CD • Custom Channel CD • RS-232 Cable and RS-232-to-USB Cable Adapter RI Range/Accuracy 1.3330 to 1.5600 n D / ± 0.0001 Brix Range/Accuracy 0.0 to 95.0% (per ICUMSA) / ± 0.1% Calibration Set Point or Set Point/Span User Dened Custom Scales
Prism Assembly Glass in Stainless Steel Well Customize the r
2 i300 to t most measurement needs. In addition to the Brix/RI channel, the Custom Channel CD (included with the unit). Choose from over 30 custom scales
2 Dimensions (WxDxH) 12 x 8.75 x 3.25 inches (30.9 x 22.5 x 8.4 cm) r i300 can hold up to seven (7) custom channels, all with or without Automatic Temperature Correction (Compensation). You can load cus- tom channels from the , including:
Weight 7.0 lbs (3.175 kg) •
Power 110V/220V, 50 Hz/60 Hz Warranty 2 Years High Fructose Corn Syrup •
Honey

Reichert r

2

i300 Accesories

•
Salinity •
Urine Specific Gravity 13981000 THERMAL PRINTER -110V13982000 THERMAL PRINTER -220V 13981000-103 THERMAL PRINTER PAPER (5 Rolls/Pkg) •
Methanol •
Dextrose Create a Partnership in Precision All of our refractometers come with world-class customer service and technical assistance. Whether you’re measuring Brix, RI, or a custom scale, Reichert will work with you to en- sure your Reichert Refractometer exceeds your expectations.

Innovative precision instruments for over a century
