IOPac

®

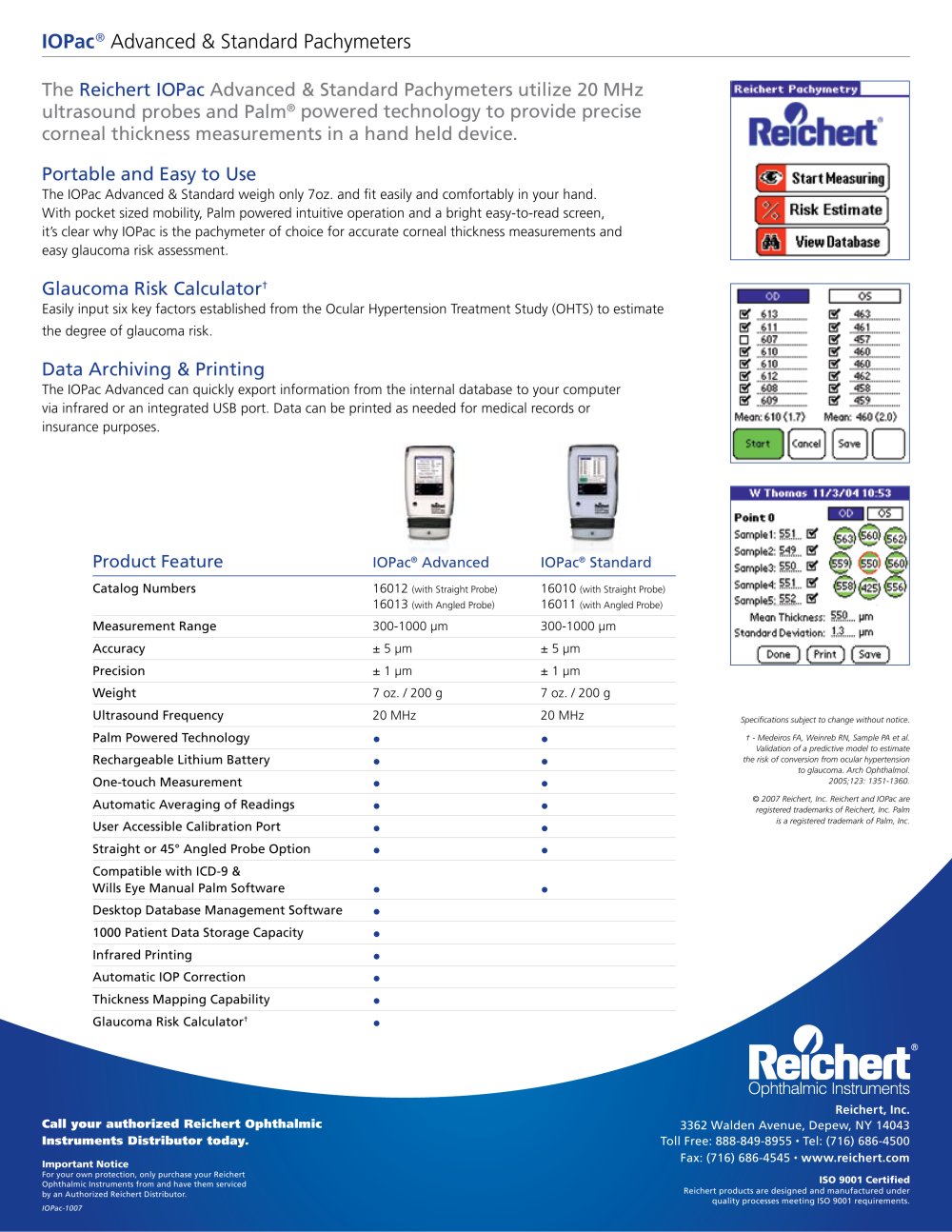

Advanced & Standard Pachymeters The Reichert IOPac Advanced & Standard Pachymeters utilize 20 MHz ultrasound probes and Palm

®

powered technology to provide precise corneal thickness measurements in a hand held device. Portable and Easy to Use

The IOPac Advanced & Standard weigh only 7oz. and fit easily and comfortably in your hand. With pocket sized mobility, Palm powered intuitive operation and a bright easy-to-read screen, it’s clear why IOPac is the pachymeter of choice for accurate corneal thickness measurements and easy glaucoma risk assessment.

Glaucoma Risk Calculator

†

Easily input six key factors established from the Ocular Hypertension Treatment Study (OHTS) to estimate the degree of glaucoma risk.

Data Archiving & Printing

The IOPac Advanced can quickly export information from the internal database to your computer via infrared or an integrated USB port. Data can be printed as needed for medical records or insurance purposes.

Product Feature

IOPac

®

Advanced IOPac

®

Standard

Catalog Numbers 16012
(with Straight Probe) 16010
(with Straight Probe) 16013
(with Angled Probe) 16011
(with Angled Probe) Measurement Range 300-1000 µm 300-1000 µm Accuracy ± 5 µm ± 5 µm Precision ± 1 µm ± 1 µm Weight 7 oz. / 200 g 7 oz. / 200 g Ultrasound Frequency 20 MHz 20 MHz
Specifications subject to change without notice.† - Medeiros FA, Weinreb RN, Sample PA et al. Validation of a predictive model to estimate the risk of conversion from ocular hypertension to glaucoma. Arch Ophthalmol. 2005;123: 1351-1360.© 2007 Reichert, Inc. Reichert and IOPac are registered trademarks of Reichert, Inc. Palm is a registered trademark of Palm, Inc. Palm Powered Technology

s s

Rechargeable Lithium Battery

s s

One-touch Measurement

s s

Automatic Averaging of Readings

s s

User Accessible Calibration Port

s s

Straight or 45° Angled Probe Option

s s

Compatible with ICD-9 & Wills Eye Manual Palm Software

s

Desktop Database Management Software

s

1000 Patient Data Storage Capacity

s

Infrared Printing

s

Automatic IOP Correction

s

Thickness Mapping Capability

s

Glaucoma Risk Calculator
†

s

Reichert, Inc. Call your authorized Reichert Ophthalmic Instruments Distributor today. 3362 Walden Avenue, Depew, NY 14043Toll Free: 888-849-8955 s Tel: (716) 686-4500Fax: (716) 686-4545 Important Notice s www.reichert.com For your own protection, only purchase your ReichertOphthalmic Instruments from and have them serviced by an Authorized Reichert Distributor. ISO 9001 Certified Reichert products are designed and manufactured under quality processes meeting ISO 9001 requirements. IOPac-1007
