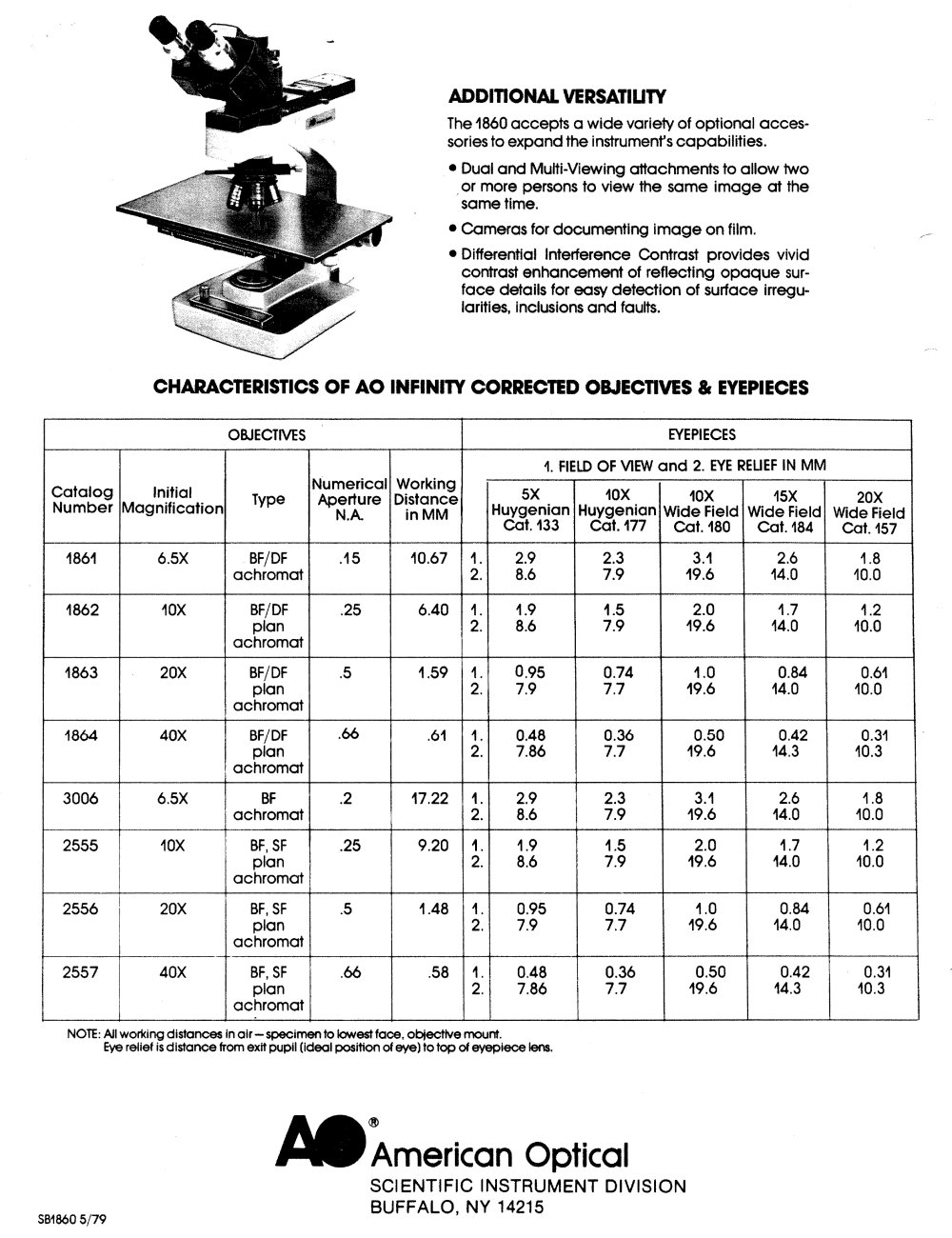

ADDITIONAL VERSATILITY

The 1860 accepts a wide variety of optional accessories to expand the instrument's capabilities.

• Dual and Multi-Viewing attachments to allow two or more persons to view the same image at the same time.

• Cameras for documenting image on film.

• Differential Interference Contrast provides vivid contrast enhancement of reflecting opaque surface details for easy detection of surface irregularities, inclusions and faults.

CHARACTERISTICS OF AO INFINITY CORRECTED OBJECTIVES & EYEPIECES

OBJECTIVES

EYEPIECES

Numerical Aperture NA

Working Distance in MM

1. FIELD OF VIEW and 2. EYE RELIEF IN MM

Catalog Number

Initial Magnification

Type

Huygenian Cat. 133

10X Huygenian Cat. 177

10X Wide Field Cat. 180

15X Wide Field Cat. 184

20X Wide Field Cat. 157

1861

6.5X

BF/DF achromat

.15

10.67

1. 2.

2.9 8.6

2.3 7.9

3.1 19.6

2.6 14.0

1.8 10.0

1862

10X

BF/DF plan achromat

.25

6.40

1. 2.

1.9 8.6

1.5 7.9

2.0 19.6

1.7 14.0

1.2 10.0

1863

20X

BF/DF plan achromat

1.59

1. 2.

0.95 7.9

0.74 7.7

1.0 19.6

0.84 14.0

0.61 10.0

a a i. a "IOCK+

a nv

or lr\r Dr/ Ur

plan achromat

AA .w

L. a

.Ol

1 .

n ao

7.86

u.ao 7.7

U.UU

19.6

n a <~l

14.3

O 1A

U.O'I

10.3

3006

6.5X

achromat

17.22

1. 2.

2.9 8.6

2.3 7.9

3.1 19.6

2.6 14.0

1.8 10.0

2555

10X

BF, SF plan achromat

.25

9.20

1.9 8.6

1.5 7.9

2.0 19.6

1.7 14.0

1.2 10.0

2556

20X

BF, SF plan achromat

1.48

1. 2.

0.95 7.9

0.74 7.7

1.0 19.6

0.84 14.0

0.61 10.0

2557

40X

BF, SF plan achromat

.66

.58

1. 2.

0.48 7.86

0.36 7.7

0.50 19.6

0.42 14.3

0.31 10.3

NOTE: All working distances in air—specimen to lowest face, objective mount.

Eye relief is distance from exit pupil (ideal position of eye) to top of eyepiece lens.

American Optical

SCIENTIFIC INSTRUMENT DIVISION BUFFALO, NY 14215

SB1860 5/79
