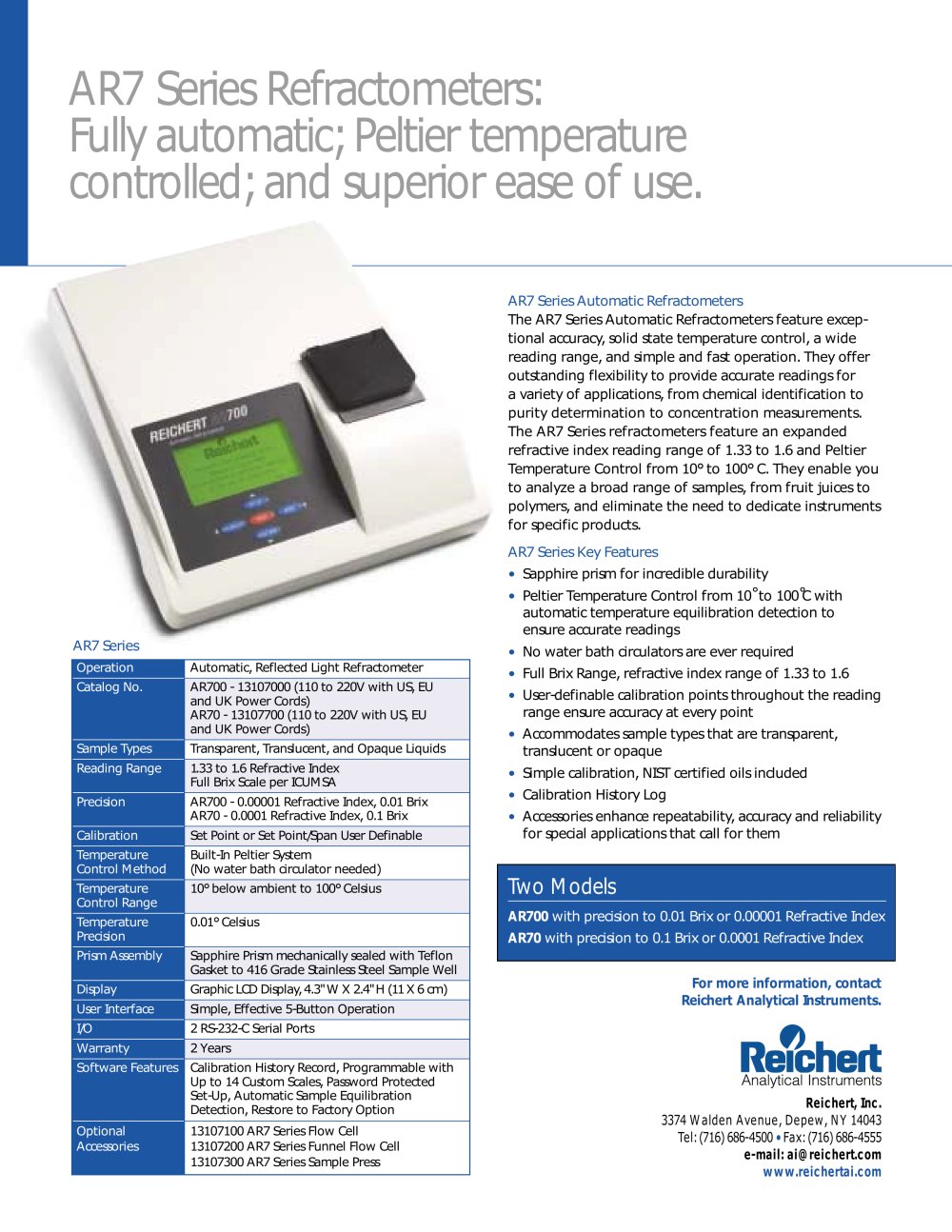

AR7 Series Refractometers - Reichert Inc - #1

AR Ocllcb Re idULUmclcISi

Fully automatic; Ffeltier temperature controlled; and superior ease of use.

AR7 Series Automatic Refractometers The AR7 Series Automatic Refractometers feature excep­tional accuracy, solid state temperature control, a wide reading range, and simple and fast operation. They offer outstanding flexibility to provide accurate readings for a variety of applications, from chemical identification to purity determination to concentration measurements. The AR7 Series refractometers feature an expanded refractive index reading range of 1.33 to 1.6 and Peltier Temperature Control from 10°to 100°C. They enable you to analyze a broad range of samples, from fruit juices to polymers, and eliminate the need to dedicate instruments for specific products.

AR7 Series Key Features

• Sapphire prism for incredible durability

• Peltier Temperature Control from 10° to 100°C with automatic temperature equilibration detection to ensure accurate readings

• No water bath circulators are ever required

• Full Brix Range, refractive index range of 1.33 to 1.6

• User-definable calibration points throughout the reading range ensure accuracy at every point

• Accommodates sample types that are transparent, translucent or opaque

• Simple calibration, NIST certified oils included

• Calibration History Log

• Accessories enhance repeatability, accuracy and reliability for special applications that call for them

AR7 Series

Operation

Automatic, Reflected Light Refractometer

AR700 - 13107000 (110 to 220V with US EU and UK Power Cords) AR70 - 13107700 (110 to 220V with US, EU and UK Power Cords)

Transparent, Translucent, and Opaque Liquids

Reading Range

1.33 to 1.6 Refractive Index Full Brix Scale per ICUMSA

AR700 - 0.00001 Refractive Index, 0.01 Brix AR70 - 0.0001 Refractive Index, 0.1 Brix

Set Point or Set Point/Span User Definable

Temperature Control Method

Built-In Peltier System

(No water bath circulator needed)

Temperature Control Range

10°below ambient to 100°CelSus

0 with precision to 0.01 Brix or 0.00001 Refractive Index with precision to 0.1 Brix or 0.0001 Refractive

Temperature Precision

0.01°CelSus

Prism Assembly

Sapphire Prism mechanically sealed with Teflon Gasket to 416 Grade Stainless Steel Sample Well

Display

Graphic LCD Display, 4.3"W X 2.4"H (11X6 cm)

rVIU ICI L ni I

Smple, Effective 5-Button Operation

User Interface

I/O

2 RS-232-C Serial Ports

Analytical Instruments

Reichert, Inc.

3374 Walden Avenue, Depew, NY 14043 Tel: (716) 686-4500 • Fax: (716) 686-4555 e-mail: ai@reichert.com www.reichertai.com

Warranty

2 Years

Software Features Calibration History Record, Programmable with Up to 14 Custom Scales, Password Protected Set-Up, Automatic Sample Equilibration Detection, Restore to Factory Option

Optional Accessories

13107100 AR7 Series Row Cell 13107200 AR7 Series Runnel Flow Cell 13107300 AR7 Series Sample Press
