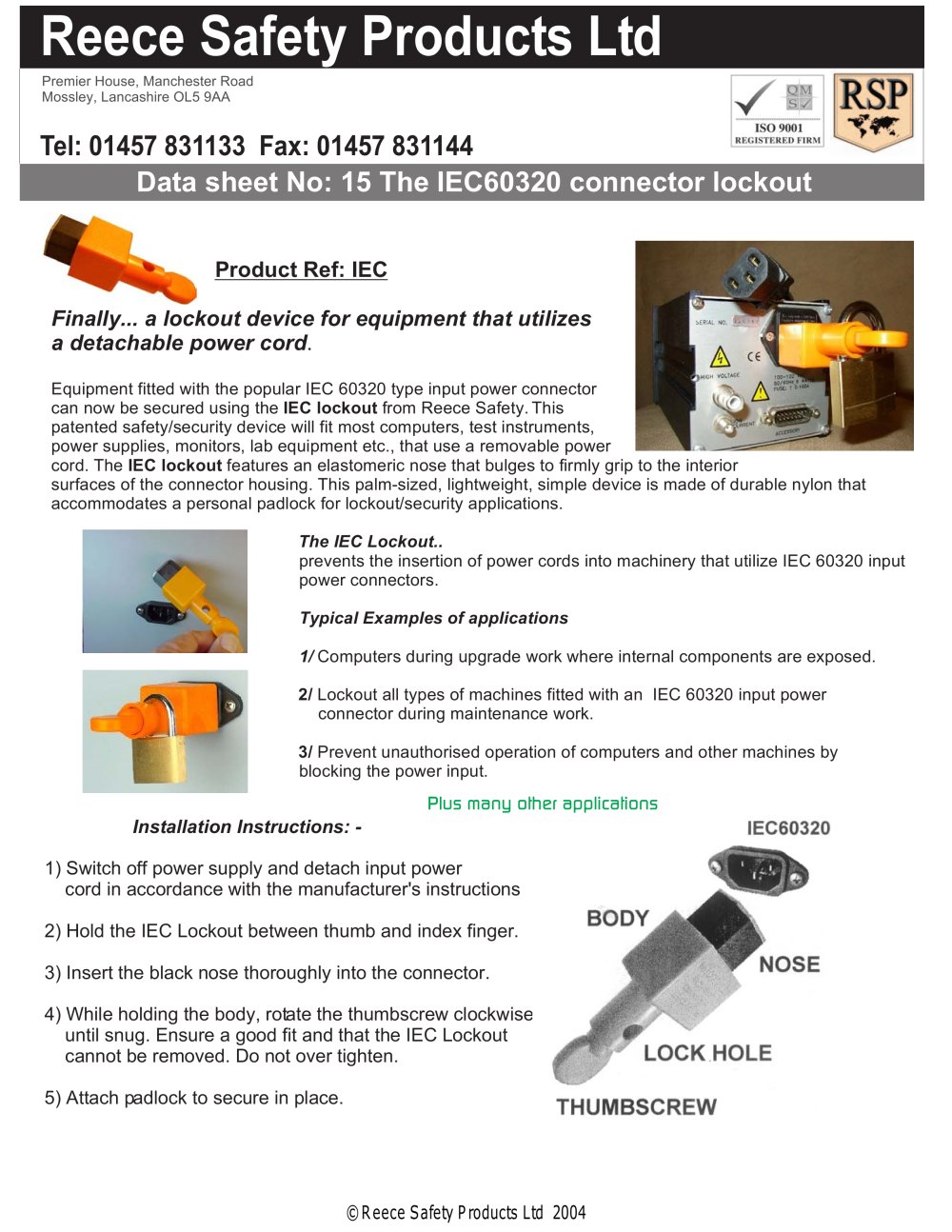

Reece Safety Products Ltd Tel: 01457 831133 Fax: 01457 831144 Data sheet No: 15 The IEC60320 connector lockout © Reece Safety Products Ltd 2004 Product Ref: IEC Finally... a lockout device for equipment that utilizes a detachable power cord. Equipment fitted with the popular IEC 60320 type input power connector can now be secured using the IEC lockout from Reece Safety. This patented safety/security device will fit most computers, test instruments, power supplies, monitors, lab equipment etc., that use a removable power cord. The IEC lockout features an elastomeric nose that bulges to firmly grip to the interior surfaces of the connector housing. This palm-sized, lightweight, simple device is made of durable nylon that accommodates a personal padlock for lockout/security applications. The IEC Lockout.. prevents the insertion of power cords into machinery that utilize IEC 60320 input power connectors. Typical Examples of applications 1/ Computers during upgrade work where internal components are exposed. 2/ Lockout all types of machines fitted with an IEC 60320 input power connector during maintenance work. 3/ Prevent unauthorised operation of computers and other machines by blocking the power input. Installation Instructions: - 1) Switch off power supply and detach input power cord in accordance with the manufacturer's instructions 2) Hold the IEC Lockout between thumb and index finger. 3) Insert the black nose thoroughly into the connector. 4) While holding the body, rotate the thumbscrew clockwise until snug. Ensure a good fit and that the IEC Lockout cannot be removed. Do not over tighten. 5) Attach padlock to secure in place. Plus many other applications Premier House, Manchester Road Mossley, Lancashire OL5 9AA
