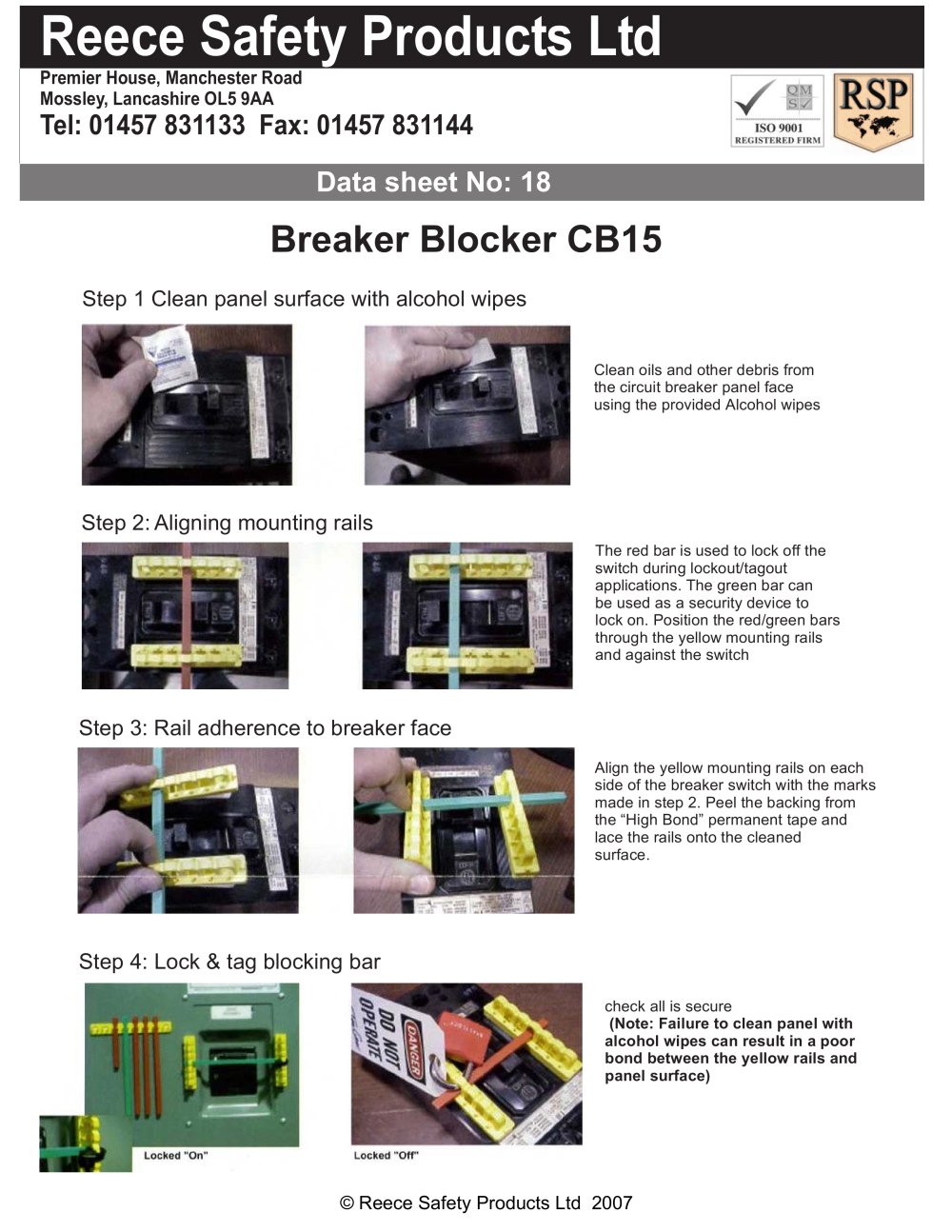

Reece Safety Products Ltd Premier House, Manchester Road Mossley, Lancashire OL5 9AA Tel: 01457 831133 Fax: 01457 831144 Data sheet No: 18 © Reece Safety Products Ltd 2007 Step 1 Clean panel surface with alcohol wipes Step 2: Aligning mounting rails Step 3: Rail adherence to breaker face Step 4: Lock & tag blocking bar Breaker Blocker CB15 Clean oils and other debris from the circuit breaker panel face using the provided Alcohol wipes The red bar is used to lock off the switch during lockout/tagout applications. The green bar can be used as a security device to lock on. Position the red/green bars through the yellow mounting rails and against the switch Align the yellow mounting rails on each side of the breaker switch with the marks made in step 2. Peel the backing from the “High Bond” permanent tape and lace the rails onto the cleaned surface. check all is secure (Note: Failure to clean panel with alcohol wipes can result in a poor bond between the yellow rails and panel surface)
