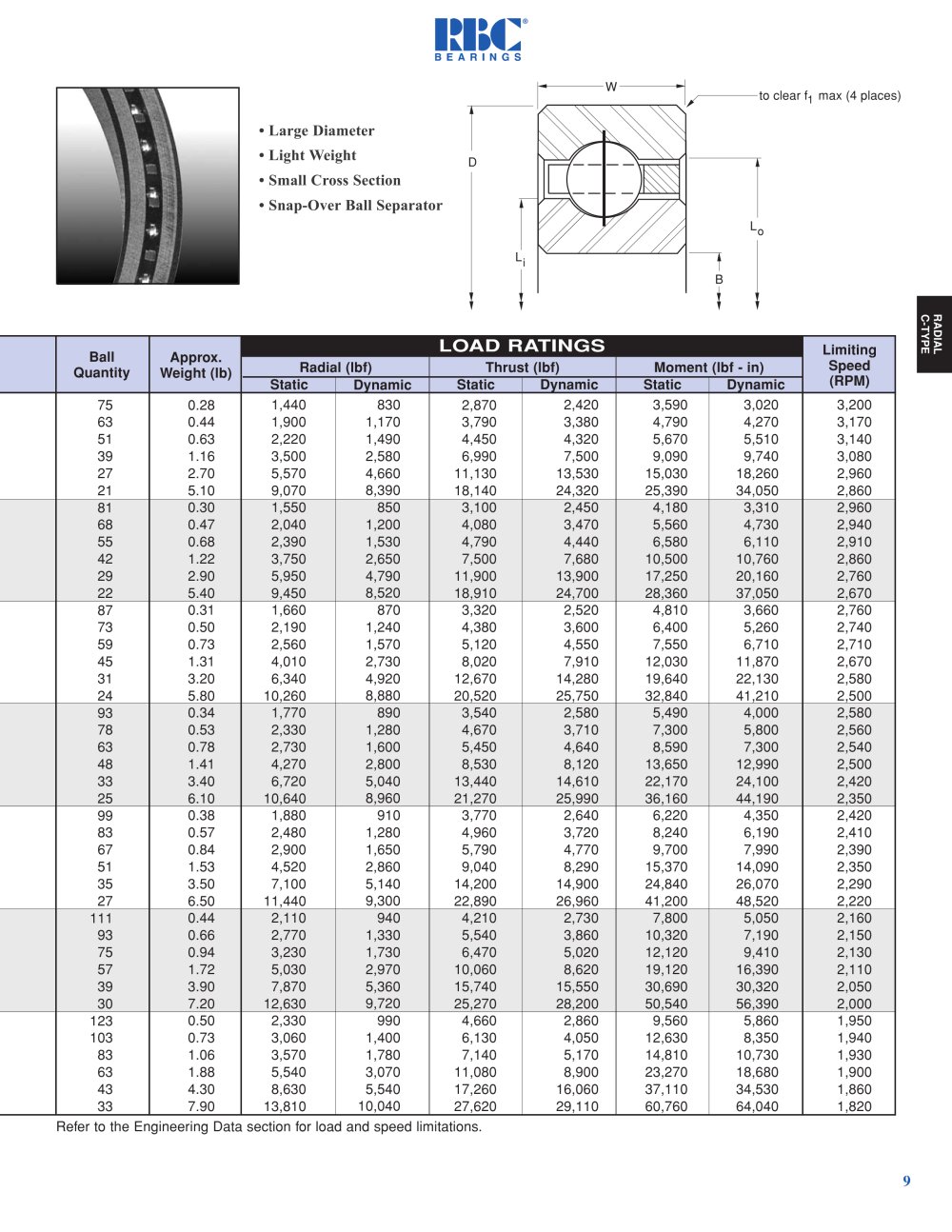

to clear f₁ max (4 places)

rge Diameter

ght Weight _D

iall Cross Section ap-Over Ball Separator

TD E ^A

m I—


Ball Quantity	Approx. Weight (lb)	LOAD RATINGS						Limiting
		Radial (lbf)		Thrust (lbf)		Moment (lbf - in)		Speed
		Static	Dynamic	Static	Dynamic	Static	Dynamic	(RPM)
75	0.28	1,440	830	2,870	2,420	3,590	3,020	3,200
63	0.44	1,900	1,170	3,790	3,380	4,790	4,270	3,170
51	0.63	2,220	1,490	4,450	4,320	5,670	5,510	3,140
39	1.16	3,500	2,580	6,990	7,500	9,090	9,740	3,080
27	2.70	5,570	4,660	11,130	13,530	15,030	18,260	2,960
21	5.10	9,070	8,390	18,140	24,320	25,390	34,050	2,860
81	0.30	1,550	850	3,100	2,450	4,180	3,310	2,960
68	0.47	2,040	1,200	4,080	3,470	5,560	4,730	2,940
55	0.68	2,390	1,530	4,790	4,440	6,580	6,110	2,910
42	1.22	3,750	2,650	7,500	7,680	10,500	10,760	2,860
29	2.90	5,950	4,790	11,900	13,900	17,250	20,160	2,760
22	5.40	9,450	8,520	18,910	24,700	28,360	37,050	2,670
87	0.31	1,660	870	3,320	2,520	4,810	3,660	2,760
73	0.50	2,190	1,240	4,380	3,600	6,400	5,260	2,740
59	0.73	2,560	1,570	5,120	4,550	7,550	6,710	2,710
45	1.31	4,010	2,730	8,020	7,910	12,030	11,870	2,670
31	3.20	6,340	4,920	12,670	14,280	19,640	22,130	2,580
24	5.80	10,260	8,880	20,520	25,750	32,840	41,210	2,500
93	0.34	1,770	890	3,540	2,580	5,490	4,000	2,580
78	0.53	2,330	1,280	4,670	3,710	7,300	5,800	2,560
63	0.78	2,730	1,600	5,450	4,640	8,590	7,300	2,540
48	1.41	4,270	2,800	8,530	8,120	13,650	12,990	2,500
33	3.40	6,720	5,040	13,440	14,610	22,170	24,100	2,420
25	6.10	10,640	8,960	21,270	25,990	36,160	44,190	2,350
99	0.38	1,880	910	3,770	2,640	6,220	4,350	2,420
83	0.57	2,480	1,280	4,960	3,720	8,240	6,190	2,410
67	0.84	2,900	1,650	5,790	4,770	9,700	7,990	2,390
51	1.53	4,520	2,860	9,040	8,290	15,370	14,090	2,350
35	3.50	7,100	5,140	14,200	14,900	24,840	26,070	2,290
27	6.50	11,440	9,300	22,890	26,960	41,200	48,520	2,220
111	0.44	2,110	940	4,210	2,730	7,800	5,050	2,160
93	0.66	2,770	1,330	5,540	3,860	10,320	7,190	2,150
75	0.94	3,230	1,730	6,470	5,020	12,120	9,410	2,130
57	1.72	5,030	2,970	10,060	8,620	19,120	16,390	2,110
39	3.90	7,870	5,360	15,740	15,550	30,690	30,320	2,050
30	7.20	12,630	9,720	25,270	28,200	50,540	56,390	2,000
123	0.50	2,330	990	4,660	2,860	9,560	5,860	1,950
103	0.73	3,060	1,400	6,130	4,050	12,630	8,350	1,940
83	1.06	3,570	1,780	7,140	5,170	14,810	10,730	1,930
63	1.88	5,540	3,070	11,080	8,900	23,270	18,680	1,900
43	4.30	8,630	5,540	17,260	16,060	37,110	34,530	1,860
33	7.90	13,810	10,040	27,620	29,110	60,760	64,040	1,820

Refer to the Engineering Data section for load and speed limitations.
