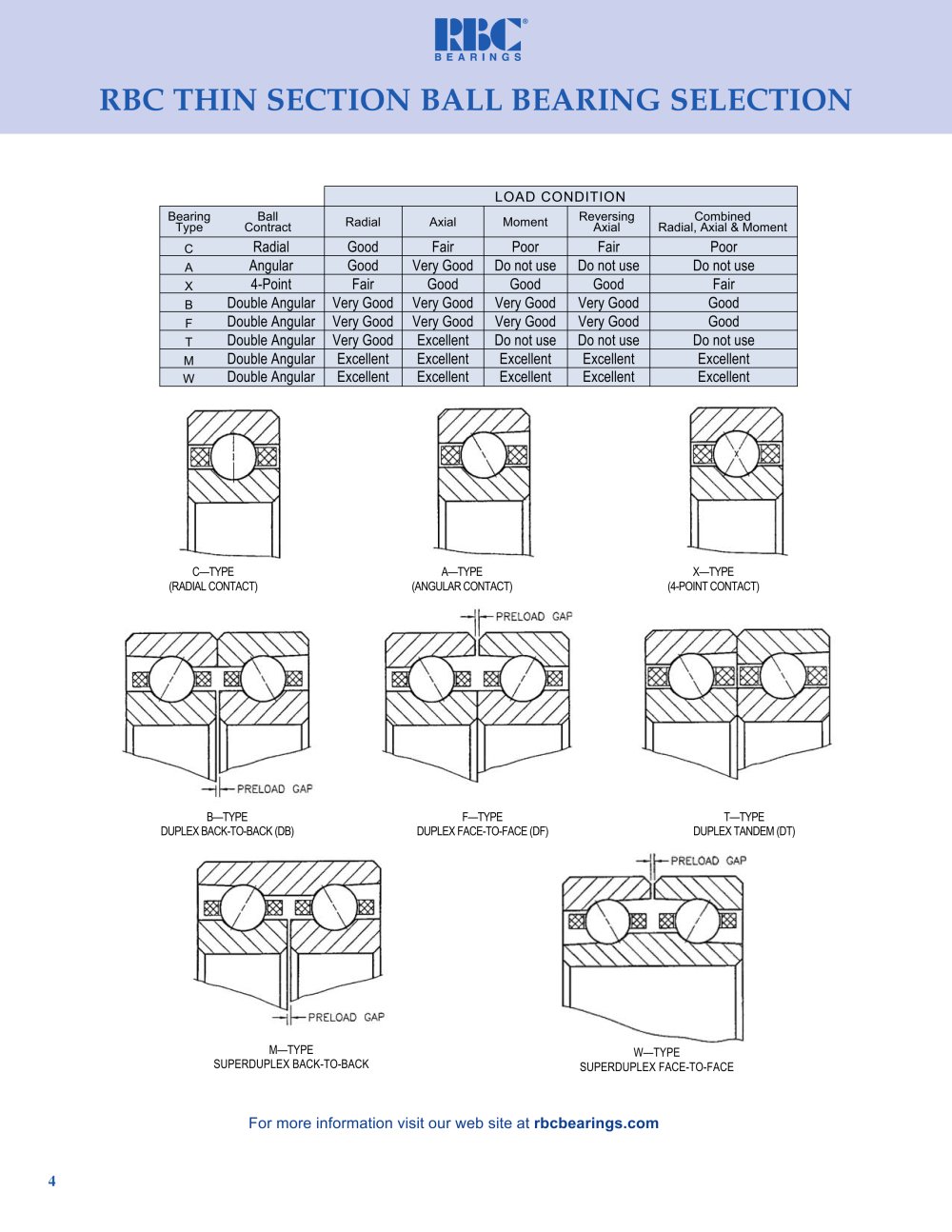

LOAD CONDITION


Bearing Type	Ball Contract	Radial	Axial	Moment	Reversing Axial	Combined Radial, Axial & Moment
C	Radial	Good	Fair	Poor	Fair	Poor
A	Angular	Good	Very Good	Do not use	Do not use	Do not use
X	4-Point	Fair	Good	Good	Good	Fair
B	Double Angular	Very Good	Very Good	Very Good	Very Good	Good
F	Double Angular	Very Good	Very Good	Very Good	Very Good	Good
T	Double Angular	Very Good	Excellent	Do not use	Do not use	Do not use
M	Double Angular	Excellent	Excellent	Excellent	Excellent	Excellent
W	Double Angular	Excellent	Excellent	Excellent	Excellent	Excellent

C-TYPE (RADIAL CONTACT)

A—TYPE (ANGULAR CONTACT)

X-TYPE (4-POINT CONTACT)

r—PRELOAD GAP

B-TYPE DUPLEX BACK-TO-BACK (DB)

F—TYPE DUPLEX FACE-TO-FACE (DF)

T—TYPE DUPLEX TANDEM (DT)

—H r—PRELOAD GAP

h— PRELOAD GAP

M—TYPE

SUPERDUPLEX BACK-TO-BACK

W—TYPE SUPERDUPLEX FACE-TO-FACE
