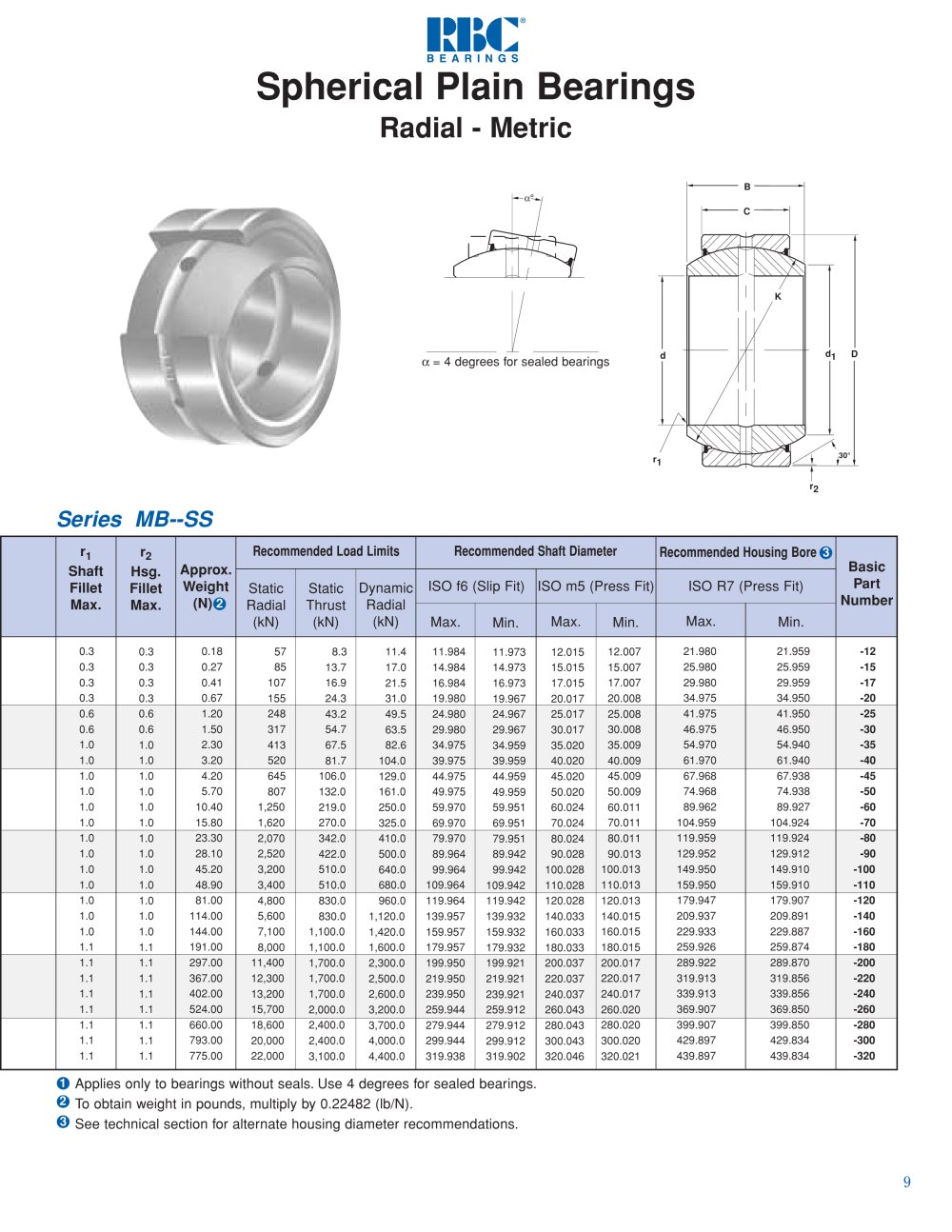

Spherical Plain Bearings

Radial - Metric

^r2

Series MB--SS



^r1			Recommended Load Limits			Recommended Shaft Diameter				Recommended Housing Bore 3
Shaft	Hsg.	Approx.										Basic
Shaft	Hsg.	Approx.										Basic
Fillet	Fillet	Weight	Static	Static	Dynamic	ISO f6 (Slip Fit)		ISO m5 (Press Fit)		ISO R7 (Press Fit)		Part
Max.	Max.		Radial	Thrust	Dynamic							Number
Max.	Max.		Radial	Thrust	Radial							Number
			(kN)	(kN)	(kN)	Max.	Min.	Max.	Min.	Max.	Min.
0.3	0.3	0.18	57	8.3	11.4	11.984	11.973	12.015	12.007	21.980	21.959	-12
0.3	0.3	0.27	85	13.7	17.0	14.984	14.973	15.015	15.007	25.980	25.959	-15
0.3	0.3	0.41	107	16.9	21.5	16.984	16.973	17.015	17.007	29.980	29.959	-17
0.3	0.3	0.67	155	24.3	31.0	19.980	19.967	20.017	20.008	34.975	34.950	-20
0.6	0.6	1.20	248	43.2	49.5	24.980	24.967	25.017	25.008	41.975	41.950	-25
0.6	0.6	1.50	317	54.7	63.5	29.980	29.967	30.017	30.008	46.975	46.950	-30
1.0	1.0	2.30	413	67.5	82.6	34.975	34.959	35.020	35.009	54.970	54.940	-35
1.0	1.0	3.20	520	81.7	104.0	39.975	39.959	40.020	40.009	61.970	61.940	-40
1.0	1.0	4.20	645	106.0	129.0	44.975	44.959	45.020	45.009	67.968	67.938	-45
1.0	1.0	5.70	807	132.0	161.0	49.975	49.959	50.020	50.009	74.968	74.938	-50
1.0	1.0	10.40	1,250	219.0	250.0	59.970	59.951	60.024	60.011	89.962	89.927	-60
1.0	1.0	15.80	1,620	270.0	325.0	69.970	69.951	70.024	70.011	104.959	104.924	-70
1.0	1.0	23.30	2,070	342.0	410.0	79.970	79.951	80.024	80.011	119.959	119.924	-80
1.0	1.0	28.10	2,520	422.0	500.0	89.964	89.942	90.028	90.013	129.952	129.912	-90
1.0	1.0	45.20	3,200	510.0	640.0	99.964	99.942	100.028	100.013	149.950	149.910	-100
1.0	1.0	48.90	3,400	510.0	680.0	109.964	109.942	110.028	110.013	159.950	159.910	-110
1.0	1.0	81.00	4,800	830.0	960.0	119.964	119.942	120.028	120.013	179.947	179.907	-120
1.0	1.0	114.00	5,600	830.0	1,120.0	139.957	139.932	140.033	140.015	209.937	209.891	-140
1.0	1.0	144.00	7,100	1,100.0	1,420.0	159.957	159.932	160.033	160.015	229.933	229.887	-160
1.1	1.1	191.00	8,000	1,100.0	1,600.0	179.957	179.932	180.033	180.015	259.926	259.874	-180
1.1	1.1	297.00	11,400	1,700.0	2,300.0	199.950	199.921	200.037	200.017	289.922	289.870	-200
1.1	1.1	367.00	12,300	1,700.0	2,500.0	219.950	219.921	220.037	220.017	319.913	319.856	-220
1.1	1.1	402.00	13,200	1,700.0	2,600.0	239.950	239.921	240.037	240.017	339.913	339.856	-240
1.1	1.1	524.00	15,700	2,000.0	3,200.0	259.944	259.912	260.043	260.020	369.907	369.850	-260
1.1	1.1	660.00	18,600	2,400.0	3,700.0	279.944	279.912	280.043	280.020	399.907	399.850	-280
1.1	1.1	793.00	20,000	2,400.0	4,000.0	299.944	299.912	300.043	300.020	429.897	429.834	-300
1.1	1.1	775.00	22,000	3,100.0	4,400.0	319.938	319.902	320.046	320.021	439.897	439.834	-320

j) Applies only to bearings without seals. Use 4 degrees for sealed bearings.

I³ See technical section for alternate housing diameter recommendations.
