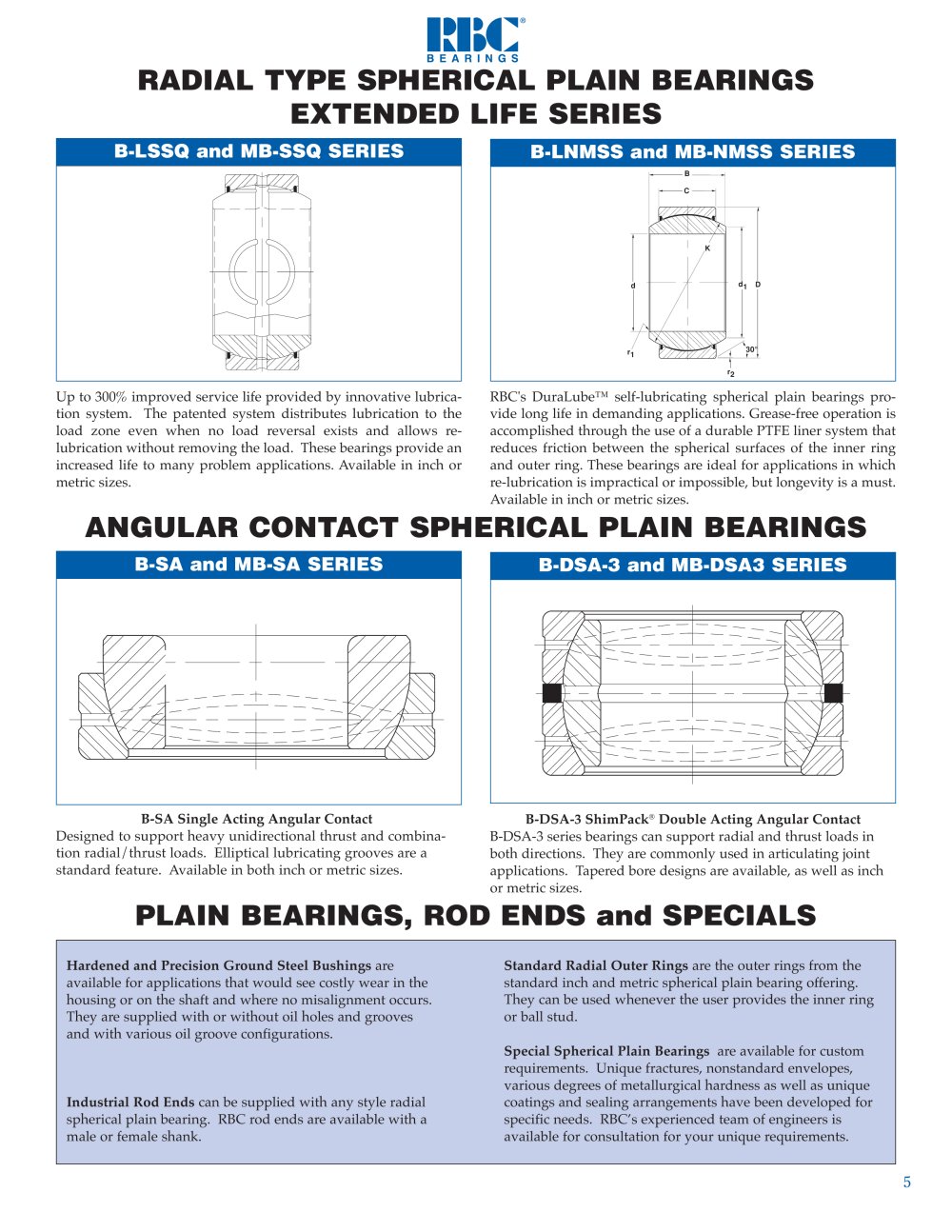

RADIAL TYPE SPHERICAL PLAIN BEARINGSEXTENDED LIFE SERIES

B-LSSQ and MB-SSQ SERIES B-LNMSS and MB-NMSS SERIES

r2r130°Dd1d BCK Up to 300% improved service life provided by innovative lubrica- tion system. The patented system distributes lubrication to the load zone even when no load reversal exists and allows re- lubrication without removing the load. These bearings provide an increased life to many problem applications. Available in inch or metric sizes.RBC's DuraLube™ self-lubricating spherical plain bearings pro-vide long life in demanding applications. Grease-free operation is accomplished through the use of a durable PTFE liner system that reduces friction between the spherical surfaces of the inner ring and outer ring. These bearings are ideal for applications in which re-lubrication is impractical or impossible, but longevity is a must. Available in inch or metric sizes.

ANGULAR CONTACT SPHERICAL PLAIN BEARINGS

B-SA and MB-SA SERIES B-DSA-3 and MB-DSA3 SERIES

B-DSA-3 ShimPack B-SASingle Acting Angular Contact
® Standard Radial Outer Rings Double Acting Angular Contact Designed to support heavy unidirectional thrust and combina- tion radial/thrust loads. Elliptical lubricating grooves are a standard feature. Available in both inch or metric sizes. B-DSA-3 series bearings can support radial and thrust loads in both directions. They are commonly used in articulating joint applications. Tapered bore designs are available, as well as inch or metric sizes. are the outer rings from thestandard inch and metric spherical plain bearing offering. They can be used whenever the user provides the inner ring or ball stud. Special Spherical Plain Bearings are available for customrequirements. Unique fractures, nonstandard envelopes, various degrees of metallurgical hardness as well as unique coatings and sealing arrangements have been developed for specific needs. RBC’s experienced team of engineers is available for consultation for your unique requirements.

PLAIN BEARINGS, ROD ENDS and SPECIALS

Hardened and Precision Ground Steel Bushings are available for applications that would see costly wear in the housing or on the shaft and where no misalignment occurs. They are supplied with or without oil holes and grooves and with various oil groove configurations. Industrial Rod Ends can be supplied with any style radialspherical plain bearing. RBC rod ends are available with a male or female shank.

5
