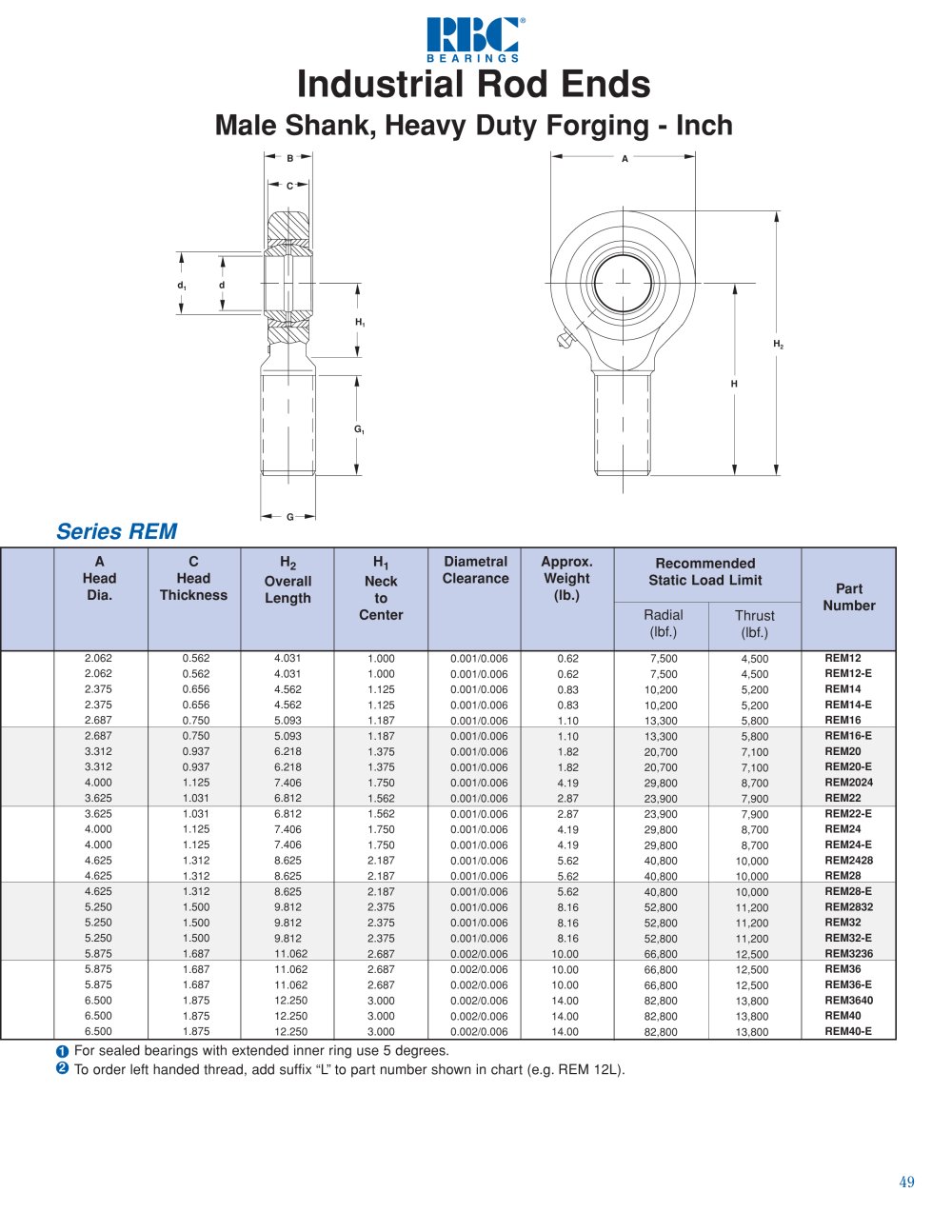

BEARINGS

Industrial Rod Ends

Male Shank, Heavy Duty Forging

Inch

H₂

Series REM



A	C	H₂	Hi	Diametral	Approx.	Recommended
Head	Head	Overall	Neck	Clearance	Weight	Static Load Limit
Dia.	Thickness	Length	to		(lb.)			part
		Length	to		(lb.)			Number
			Center			Radial	Thrust	Number
						(Ibf.)	(lbf.)
2.062	0.562	4.031	1.000	0.001/0.006	0.62	7,500	4,500	REM12
2.062	0.562	4.031	1.000	0.001/0.006	0.62	7,500	4,500	REM12-E
2.375	0.656	4.562	1.125	0.001/0.006	0.83	10,200	5,200	REM14
2.375	0.656	4.562	1.125	0.001/0.006	0.83	10,200	5,200	REM14-E
2.687	0.750	5.093	1.187	0.001/0.006	1.10	13,300	5,800	REM16
2.687	0.750	5.093	1.187	0.001/0.006	1.10	13,300	5,800	REM16-E
3.312	0.937	6.218	1.375	0.001/0.006	1.82	20,700	7,100	REM20
3.312	0.937	6.218	1.375	0.001/0.006	1.82	20,700	7,100	REM20-E
4.000	1.125	7.406	1.750	0.001/0.006	4.19	29,800	8,700	REM2024
3.625	1.031	6.812	1.562	0.001/0.006	2.87	23,900	7,900	REM22
3.625	1.031	6.812	1.562	0.001/0.006	2.87	23,900	7,900	REM22-E
4.000	1.125	7.406	1.750	0.001/0.006	4.19	29,800	8,700	REM24
4.000	1.125	7.406	1.750	0.001/0.006	4.19	29,800	8,700	REM24-E
4.625	1.312	8.625	2.187	0.001/0.006	5.62	40,800	10,000	REM2428
4.625	1.312	8.625	2.187	0.001/0.006	5.62	40,800	10,000	REM28
4.625	1.312	8.625	2.187	0.001/0.006	5.62	40,800	10,000	REM28-E
5.250	1.500	9.812	2.375	0.001/0.006	8.16	52,800	11,200	REM2832
5.250	1.500	9.812	2.375	0.001/0.006	8.16	52,800	11,200	REM32
5.250	1.500	9.812	2.375	0.001/0.006	8.16	52,800	11,200	REM32-E
5.875	1.687	11.062	2.687	0.002/0.006	10.00	66,800	12,500	REM3236
5.875	1.687	11.062	2.687	0.002/0.006	10.00	66,800	12,500	REM36
5.875	1.687	11.062	2.687	0.002/0.006	10.00	66,800	12,500	REM36-E
6.500	1.875	12.250	3.000	0.002/0.006	14.00	82,800	13,800	REM3640
6.500	1.875	12.250	3.000	0.002/0.006	14.00	82,800	13,800	REM40
6.500	1.875	12.250	3.000	0.002/0.006	14.00	82,800	13,800	REM40-E

For sealed bearings with extended inner ring use 5 degrees.

To order left handed thread, add suffix "L" to part number shown in chart (e.g. REM 12L).
