iriu:

BEARINGS

BC originated the precision ground single fracture spherical plain bearing and continues to be the leader in design and innovation. Listed below are the basic types of spherical plain bearings that RBC makes with pertinent selection criteria.

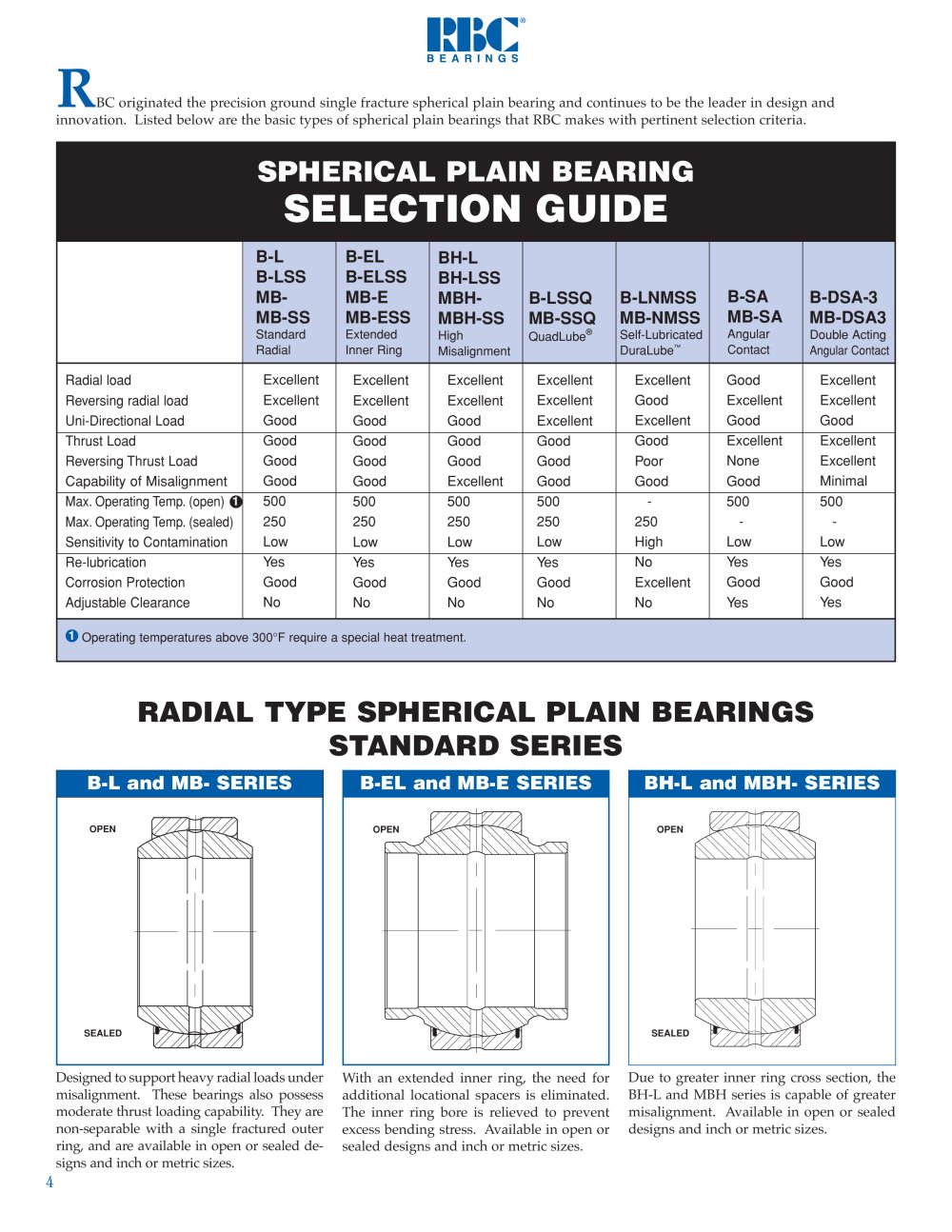

SPHERICAL PLAIN BEARING

SELECTION GUIDE



	B-L	B-EL	BH-L
	B-LSS	B-ELSS	BH-LSS
	MB-	MB-E	MBH-	B-LSSQ	B-LNMSS	B-SA	B-DSA-3
	MB-SS	MB-ESS	MBH-SS	MB-SSQ	MB-NMSS	MB-SA	MB-DSA3
	Standard	Extended	High	QuadLube®	Self-Lubricated	Angular	Double Acting
	Radial	Inner Ring	Misalignment		DuraLube™	Contact	Angular Contact
Radial load	Excellent	Excellent	Excellent	Excellent	Excellent	Good	Excellent
Reversing radial load	Excellent	Excellent	Excellent	Excellent	Good	Excellent	Excellent
Uni-Directional Load	Good	Good	Good	Excellent	Excellent	Good	Good
Thrust Load	Good	Good	Good	Good	Good	Excellent	Excellent
Reversing Thrust Load	Good	Good	Good	Good	Poor	None	Excellent
Capability of Misalignment	Good	Good	Excellent	Good	Good	Good	Minimal
Max. Operating Temp. (open)F	500	500	500	500	-	500	500
Max. Operating Temp. (sealed)	250	250	250	250	250	-	-
Sensitivity to Contamination	Low	Low	Low	Low	High	Low	Low
Re-lubrication	Yes	Yes	Yes	Yes	No	Yes	Yes
Corrosion Protection	Good	Good	Good	Good	Excellent	Good	Good
Adjustable Clearance	No	No	No	No	No	Yes	Yes
10perating temperatures above 300°F require a special heat treatment.

RADIAL TYPE SPHERICAL PLAIN BEARINGS

STANDARD SERIES

-EL and MB-E SERIES

BH-L and MBH- SERIES

Y //A

OPEN

SEALED

Designed to support heavy radial loads under

misalignment. These bearings also possess moderate thrust loading capability. They are non-separable with a single fractured outer ring, and are available in open or sealed designs and inch or metric sizes.

Due to greater inner ring cross section, the BH-L and MBH series is capable of greater misalignment. Available in open or sealed designs and inch or metric sizes.

With an extended inner ring, the need for additional locational spacers is eliminated. The inner ring bore is relieved to prevent excess bending stress. Available in open or sealed designs and inch or metric sizes.
