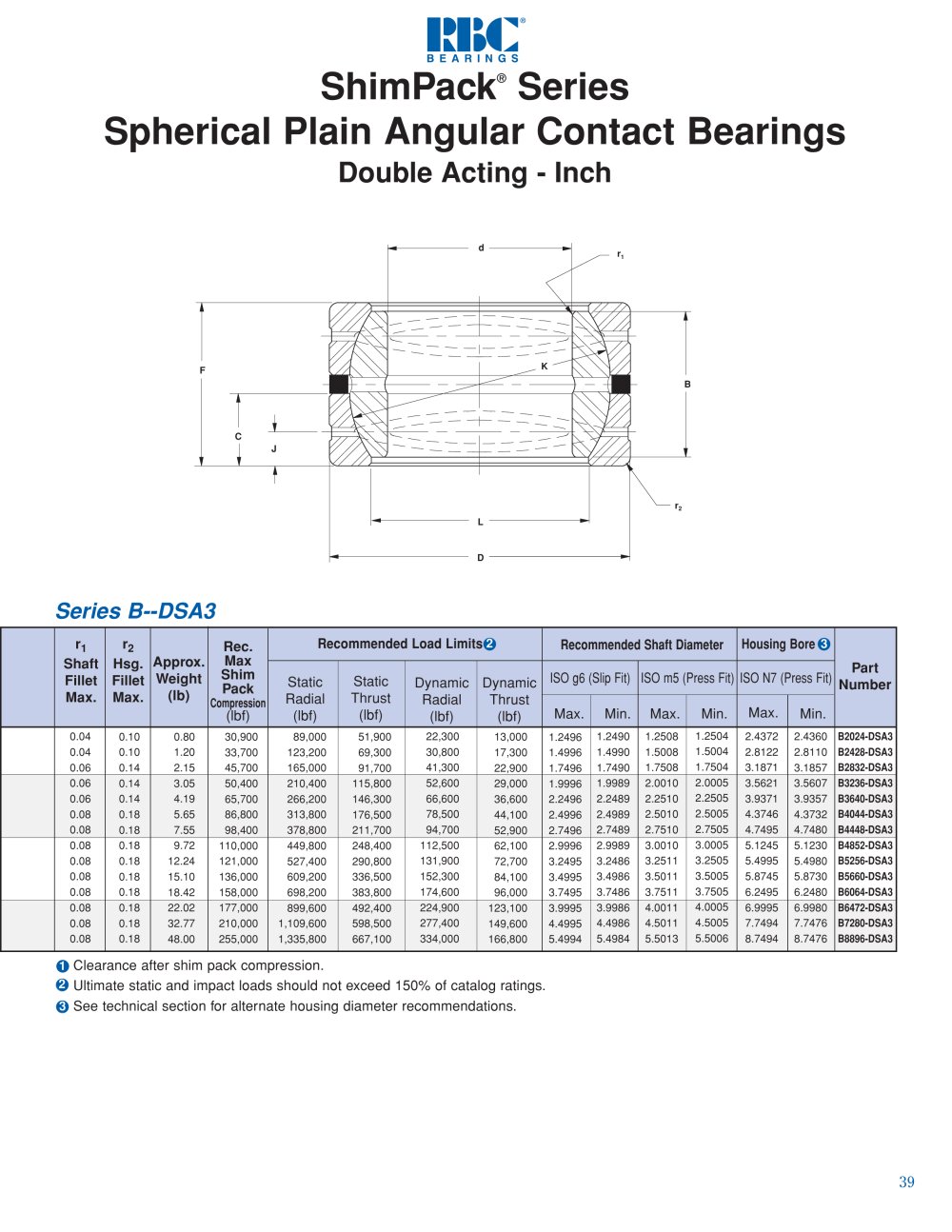

ShimPack Series Spherical Plain Angular Contact Bearings

Double Acting - Inch

Series B--DSA3



^r1 Shaft Fillet Max.	Hsg. Fillet Max.	Approx. Weight (lb)	Rec. Max Shim Pack Compression (Ibf)	Recommended Load Limits 2)				Recommended Shaft Diameter				Housing Bore 3		Part Number
				Static Radial (Ibf)	Static Thrust (Ibf)	Dynamic RadiaI (Ibf)	Dynamic Thrust (Ibf)	ISO g6 (Slip Fit)		ISO m5 (Press Fit)		ISO N7 (Press Fit)
				Static Radial (Ibf)	Static Thrust (Ibf)	Dynamic RadiaI (Ibf)	Dynamic Thrust (Ibf)	Max.	Min.	Max.	Min.	Max.	Min.
0.04 0.04 0.06	0.10 0.10 0.14	0.80 1.20 2.15	30,900 33,700 45,700		51,900 69,300 91,700		13,000 17,300 22,900	1.2496 1.4996 1.7496	1.2490 1.4990 1.7490	1.2508 1.5008 1.7508	1.2504 1.5004 1.7504	2.4372 2.8122 3.1871	2.4360 2.8110 3.1857	B2024-DSA3 B2428-DSA3 B2832-DSA3
0.04 0.04 0.06	0.10 0.10 0.14	0.80 1.20 2.15	30,900 33,700 45,700	89,000 123,200 165,000	51,900 69,300 91,700	22,300 30,800 41,300	13,000 17,300 22,900	1.2496 1.4996 1.7496	1.2490 1.4990 1.7490	1.2508 1.5008 1.7508	1.2504 1.5004 1.7504	2.4372 2.8122 3.1871	2.4360 2.8110 3.1857	B2024-DSA3 B2428-DSA3 B2832-DSA3
0.06 0.06 0.08 0.08	0.14 0.14 0.18 0.18	3.05 4.19 5.65 7.55	50,400 65,700 86,800 98,400	210,400 266,200 313,800 378,800	115,800 146,300 176,500 211,700	52,600 66,600 78,500 94,700	29,000 36,600 44,100 52,900	1.9996 2.2496 2.4996 2.7496	1.9989 2.2489 2.4989 2.7489	2.0010 2.2510 2.5010 2.7510	2.0005 2.2505 2.5005 2.7505	3.5621 3.9371 4.3746 4.7495	3.5607 3.9357 4.3732 4.7480	B3236-DSA3 B3640-DSA3 B4044-DSA3 B4448-DSA3
0.08 0.08 0.08 0.08	0.18 0.18 0.18 0.18	9.72 12.24 15.10 18.42	110,000 121,000 136,000 158,000	449,800 527,400 609,200 698,200	248,400 290,800 336,500 383,800	112,500 131,900 152,300 174,600	62,100 72,700 84,100 96,000	2.9996 3.2495 3.4995 3.7495	2.9989 3.2486 3.4986 3.7486	3.0010 3.2511 3.5011 3.7511	3.0005 3.2505 3.5005 3.7505	5.1245 5.4995 5.8745 6.2495	5.1230 5.4980 5.8730 6.2480	B4852-DSA3 B5256-DSA3 B5660-DSA3 B6064-DSA3
0.08 0.08 0.08	0.18 0.18 0.18	22.02 32.77 48.00	177,000 210,000 255,000	899,600 1,109,600 1,335,800	492,400 598,500 667,100	224,900 277,400 334,000	123,100 149,600 166,800	3.9995 4.4995 5.4994	3.9986 4.4986 5.4984	4.0011 4.5011 5.5013	4.0005 4.5005 5.5006	6.9995 7.7494 8.7494	6.9980 7.7476 8.7476	B6472-DSA3 B7280-DSA3 B8896-DSA3

Clearance after shim pack compression. Ultimate static and impact loads should not See technical section for alternate housing

exceed 150% of catalog ratings. diameter recommendations.
