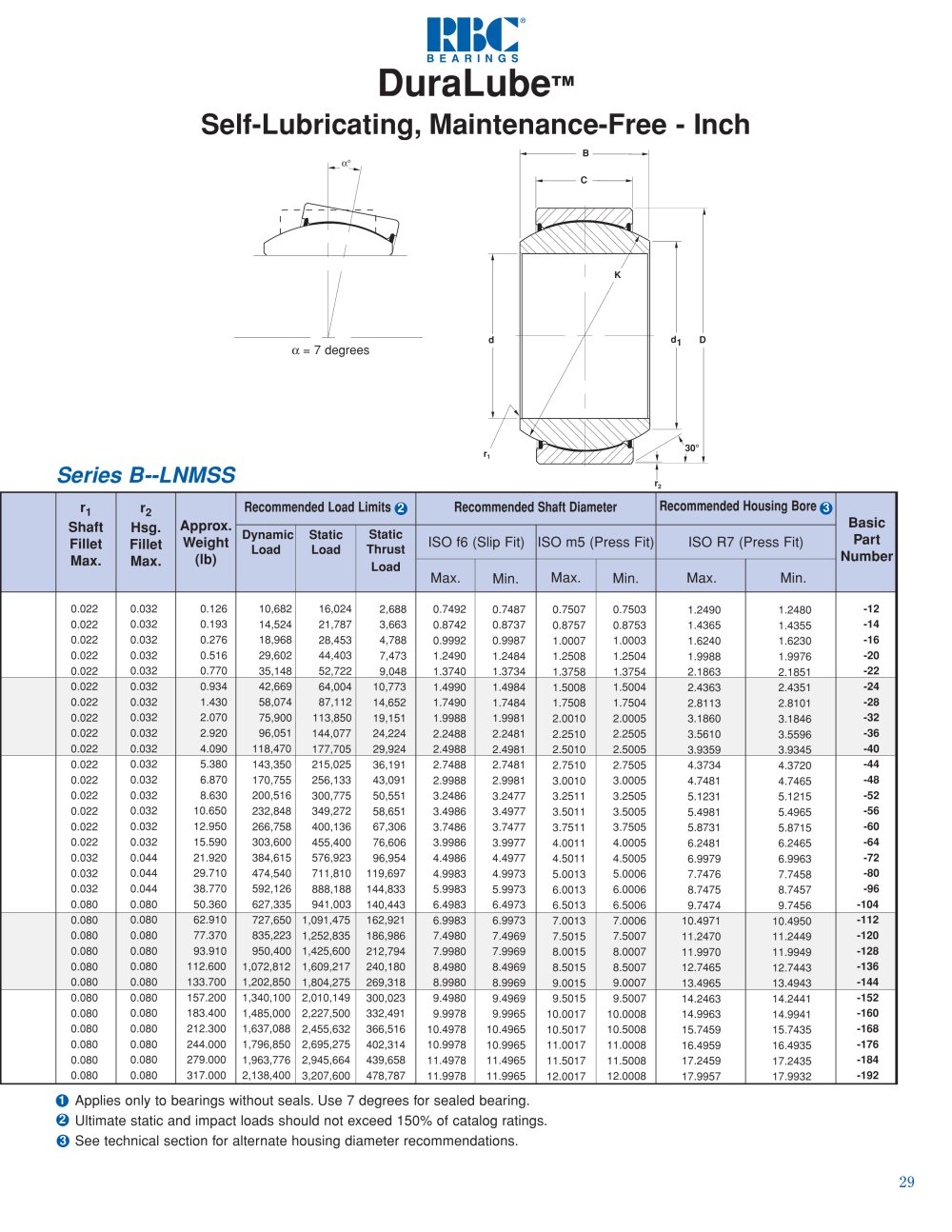

BEARINGS

DuraLube^TM

Self-Lubricating, Maintenance-Free - Inch

Series B--LNMSS


ri	^r2 Hsg. Fillet Max.		Recommended Load Limits 2>			Recommended Shaft Diameter				Recommended Housing Bore 3
Shaft Fillet Max.		Approx. Weight (lb)										Basic Part Number
			Dynamic Load	Static Load	Static Thrust	ISO f6 (Slip Fit)		ISO m5 (Press Fit)		ISO R7 (Press Fit)
					Load	Max.	Min.	Max.	Min.	Max.	Min.
0.022	0.032	0.126	10,682	16,024	2,688	0.7492	0.7487	0.7507	0.7503	1.2490	1.2480	-12
0.022	0.032	0.193	14,524	21,787	3,663	0.8742	0.8737	0.8757	0.8753	1.4365	1.4355	-14
0.022	0.032	0.276	18,968	28,453	4,788	0.9992	0.9987	1.0007	1.0003	1.6240	1.6230	-16
0.022	0.032	0.516	29,602	44,403	7,473	1.2490	1.2484	1.2508	1.2504	1.9988	1.9976	-20
0.022	0.032	0.770	35,148	52,722	9,048	1.3740	1.3734	1.3758	1.3754	2.1863	2.1851	-22
0.022	0.032	0.934	42,669	64,004	10,773	1.4990	1.4984	1.5008	1.5004	2.4363	2.4351	-24
0.022	0.032	1.430	58,074	87,112	14,652	1.7490	1.7484	1.7508	1.7504	2.8113	2.8101	-28
0.022	0.032	2.070	75,900	113,850	19,151	1.9988	1.9981	2.0010	2.0005	3.1860	3.1846	-32
0.022	0.032	2.920	96,051	144,077	24,224	2.2488	2.2481	2.2510	2.2505	3.5610	3.5596	-36
0.022	0.032	4.090	118,470	177,705	29,924	2.4988	2.4981	2.5010	2.5005	3.9359	3.9345	-40
0.022	0.032	5.380	143,350	215,025	36,191	2.7488	2.7481	2.7510	2.7505	4.3734	4.3720	-44
0.022	0.032	6.870	170,755	256,133	43,091	2.9988	2.9981	3.0010	3.0005	4.7481	4.7465	-48
0.022	0.032	8.630	200,516	300,775	50,551	3.2486	3.2477	3.2511	3.2505	5.1231	5.1215	-52
0.022	0.032	10.650	232,848	349,272	58,651	3.4986	3.4977	3.5011	3.5005	5.4981	5.4965	-56
0.022	0.032	12.950	266,758	400,136	67,306	3.7486	3.7477	3.7511	3.7505	5.8731	5.8715	-60
0.022	0.032	15.590	303,600	455,400	76,606	3.9986	3.9977	4.0011	4.0005	6.2481	6.2465	-64
0.032	0.044	21.920	384,615	576,923	96,954	4.4986	4.4977	4.5011	4.5005	6.9979	6.9963	-72
0.032	0.044	29.710	474,540	711,810	119,697	4.9983	4.9973	5.0013	5.0006	7.7476	7.7458	-80
0.032	0.044	38.770	592,126	888,188	144,833	5.9983	5.9973	6.0013	6.0006	8.7475	8.7457	-96
0.080	0.080	50.360	627,335	941,003	140,443	6.4983	6.4973	6.5013	6.5006	9.7474	9.7456	-104
0.080	0.080	62.910	727,650	1,091,475	162,921	6.9983	6.9973	7.0013	7.0006	10.4971	10.4950	-112
0.080	0.080	77.370	835,223	1,252,835	186,986	7.4980	7.4969	7.5015	7.5007	11.2470	11.2449	-120
0.080	0.080	93.910	950,400	1,425,600	212,794	7.9980	7.9969	8.0015	8.0007	11.9970	11.9949	-128
0.080	0.080	112.600	1,072,812	1,609,217	240,180	8.4980	8.4969	8.5015	8.5007	12.7465	12.7443	-136
0.080	0.080	133.700	1,202,850	1,804,275	269,318	8.9980	8.9969	9.0015	9.0007	13.4965	13.4943	-144
0.080	0.080	157.200	1,340,100	2,010,149	300,023	9.4980	9.4969	9.5015	9.5007	14.2463	14.2441	-152
0.080	0.080	183.400	1,485,000	2,227,500	332,491	9.9978	9.9965	10.0017	10.0008	14.9963	14.9941	-160
0.080	0.080	212.300	1,637,088	2,455,632	366,516	10.4978	10.4965	10.5017	10.5008	15.7459	15.7435	-168
0.080	0.080	244.000	1,796,850	2,695,275	402,314	10.9978	10.9965	11.0017	11.0008	16.4959	16.4935	-176
0.080	0.080	279.000	1,963,776	2,945,664	439,658	11.4978	11.4965	11.5017	11.5008	17.2459	17.2435	-184
0.080	0.080	317.000	2,138,400	3,207,600	478,787	11.9978	11.9965	12.0017	12.0008	17.9957	17.9932	-192

Applies only to bearings without seals. Use 7 degrees for sealed bearing. ^ Ultimate static and impact loads should not exceed 150% of catalog ratings. [3 See technical section for alternate housing diameter recommendations.
