B E A R I N G S

Fiberglide® - Fabroid®

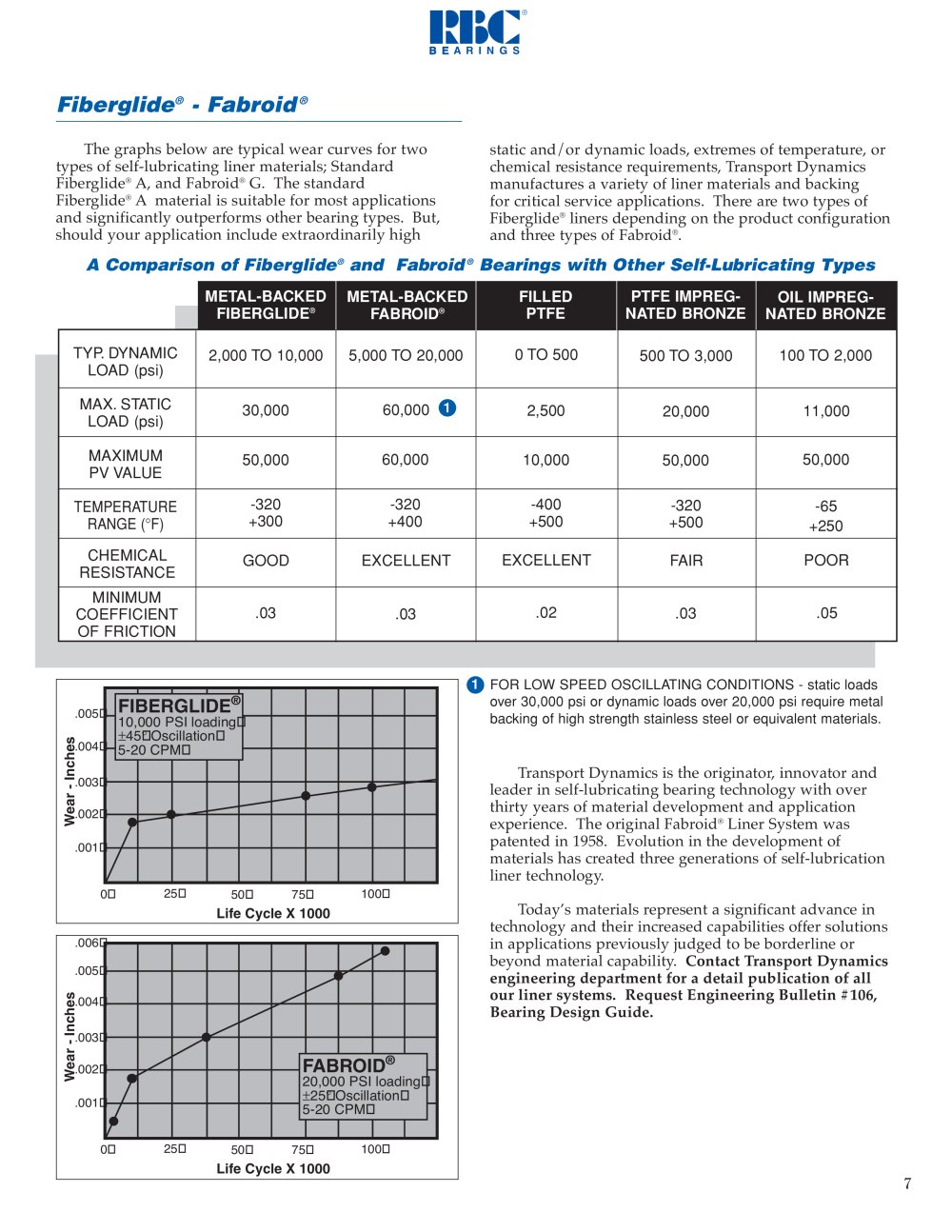

The graphs below are typical wear curves for two types of self-lubricating liner materials; Standard Fiberglide® A, and Fabroid® G. The standard Fiberglide® A material is suitable for most applications and significantly outperforms other bearing types. But, should your application include extraordinarily high

static and /or dynamic loads, extremes of temperature, or chemical resistance requirements, Transport Dynamics manufactures a variety of liner materials and backing for critical service applications. There are two types of Fiberglide® liners depending on the product configuration and three types of Fabroid®.

A Comparison of Fiberglide® and Fabroid® Bearings with Other Self-Lubricating Types


	METAL-BACKED	METAL-BACKED	FILLED	PTFE IMPREG-	OIL IMPREG-
	FIBERGLIDE®	FABROID®	PTFE	NATED BRONZE	NATED BRONZE
TYP. DYNAMIC LOAD (psi)	2,000 TO 10,000	5,000 TO 20,000	0 TO 500	500 TO 3,000	100 TO 2,000
TYP. DYNAMIC LOAD (psi)	2,000 TO 10,000	5,000 TO 20,000	0 TO 500	500 TO 3,000	100 TO 2,000
MAX. STATIC LOAD (psi)	30,000	60,000 M	2,500	20,000	11,000
MAXIMUM PV VALUE	50,000	60,000	10,000	50,000	50,000
TEMPERATURE RANGE (°F)	-320 +300	-320 +400	-400 +500	-320 +500	-65 +250
CHEMICAL RESISTANCE	GOOD	EXCELLENT	EXCELLENT	FAIR	POOR
MINIMUM COEFFICIENT OF FRICTION	.03	.03	.02	.03	.05


FIBERGLIDE®
" 10,000 PSI loading ±45° Oscillation
5-20 CPM

	___	__	-«	>—
/
/

FOR LOW SPEED OSCILLATING CONDITIONS - static loads over 30,000 psi or dynamic loads over 20,000 psi require metal backing of high strength stainless steel or equivalent materials.

.005 .004

.003

Transport Dynamics is the originator, innovator and leader in self-lubricating bearing technology with over thirty years of material development and application experience. The original Fabroid® Liner System was patented in 1958. Evolution in the development of materials has created three generations of self-lubrication liner technology.

Today's materials represent a significant advance in technology and their increased capabilities offer solutions in applications previously judged to be borderline or beyond material capability. Contact Transport Dynamics engineering department for a detail publication of all our liner systems. Request Engineering Bulletin #106, Bearing Design Guide.

I ^.

.002 .001

0 25 50 75 100

Life Cycle X 1000

.006

.005

IS) 0>. JZ

I ^.

.002

001

25 50 75 100

Life Cycle X 1000
