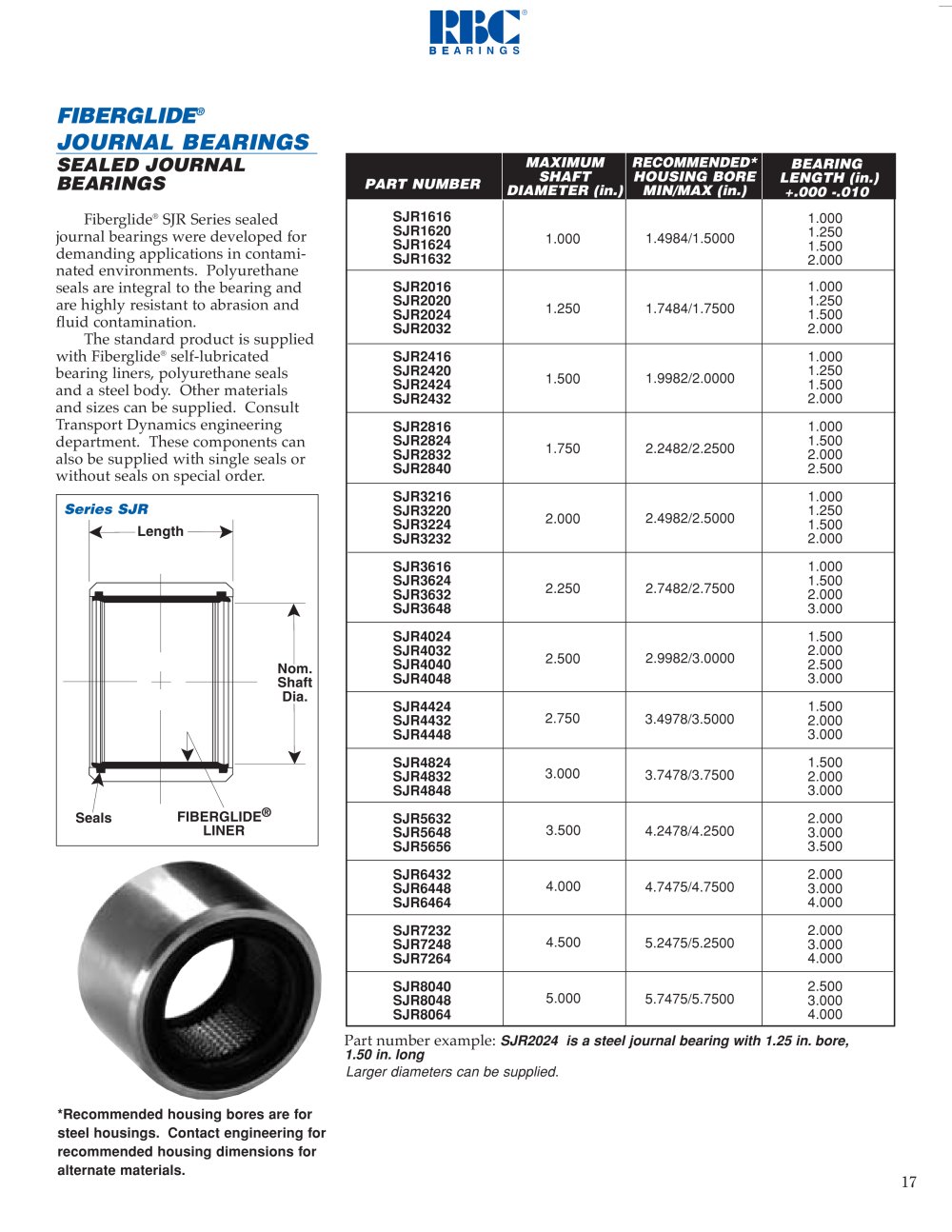

B E A R I N G S

FIBERGLIDE®

JOURNAL BEARINGS SEALED JOURNAL BEARINGS

Fiberglide® SJR Series sealed journal bearings were developed for demanding applications in contaminated environments. Polyurethane seals are integral to the bearing and are highly resistant to abrasion and fluid contamination.

The standard product is supplied with Fiberglide^® self-lubricated bearing liners, polyurethane seals and a steel body. Other materials and sizes can be supplied. Consult Transport Dynamics engineering department. These components can also be supplied with single seals or without seals on special order.


*PART NUMBER*	*MAXIMUM SHAFT DIAMETER (in.)*	RECOMMENDED* HOUSING BORE MIN/MAX (in.)	*BEARING LENGTH (in.) +.000 -.010*
SJR1616 SJR1620 SJR1624 SJR1632	1.000	1.4984/1.5000	1.000 1.250 1.500 2.000
SJR2016 SJR2020 SJR2024 SJR2032	1.250	1.7484/1.7500	1.000 1.250 1.500 2.000
SJR2416 SJR2420 SJR2424 SJR2432	1.500	1.9982/2.0000	1.000 1.250 1.500 2.000
SJR2816 SJR2824 SJR2832 SJR2840	1.750	2.2482/2.2500	1.000 1.500 2.000 2.500
SJR3216 SJR3220 SJR3224 SJR3232	2.000	2.4982/2.5000	1.000 1.250 1.500 2.000
SJR3616 SJR3624 SJR3632 SJR3648	2.250	2.7482/2.7500	1.000 1.500 2.000 3.000
SJR4024 SJR4032 SJR4040 SJR4048	2.500	2.9982/3.0000	1.500 2.000 2.500 3.000
SJR4424 SJR4432 SJR4448	2.750	3.4978/3.5000	1.500 2.000 3.000
SJR4824 SJR4832 SJR4848	3.000	3.7478/3.7500	1.500 2.000 3.000
SJR5632 SJR5648 SJR5656	3.500	4.2478/4.2500	2.000 3.000 3.500
SJR6432 SJR6448 SJR6464	4.000	4.7475/4.7500	2.000 3.000 4.000
SJR7232 SJR7248 SJR7264	4.500	5.2475/5.2500	2.000 3.000 4.000
SJR8040 SJR8048 SJR8064	5.000	5.7475/5.7500	2.500 3.000 4.000

Part number example: SJR2024 is a steel journal bearing with 1.25 in. bore, 1.50 in. long

Larger diameters can be supplied.

*Recommended housing bores are for steel housings. Contact engineering for recommended housing dimensions for alternate materials.
