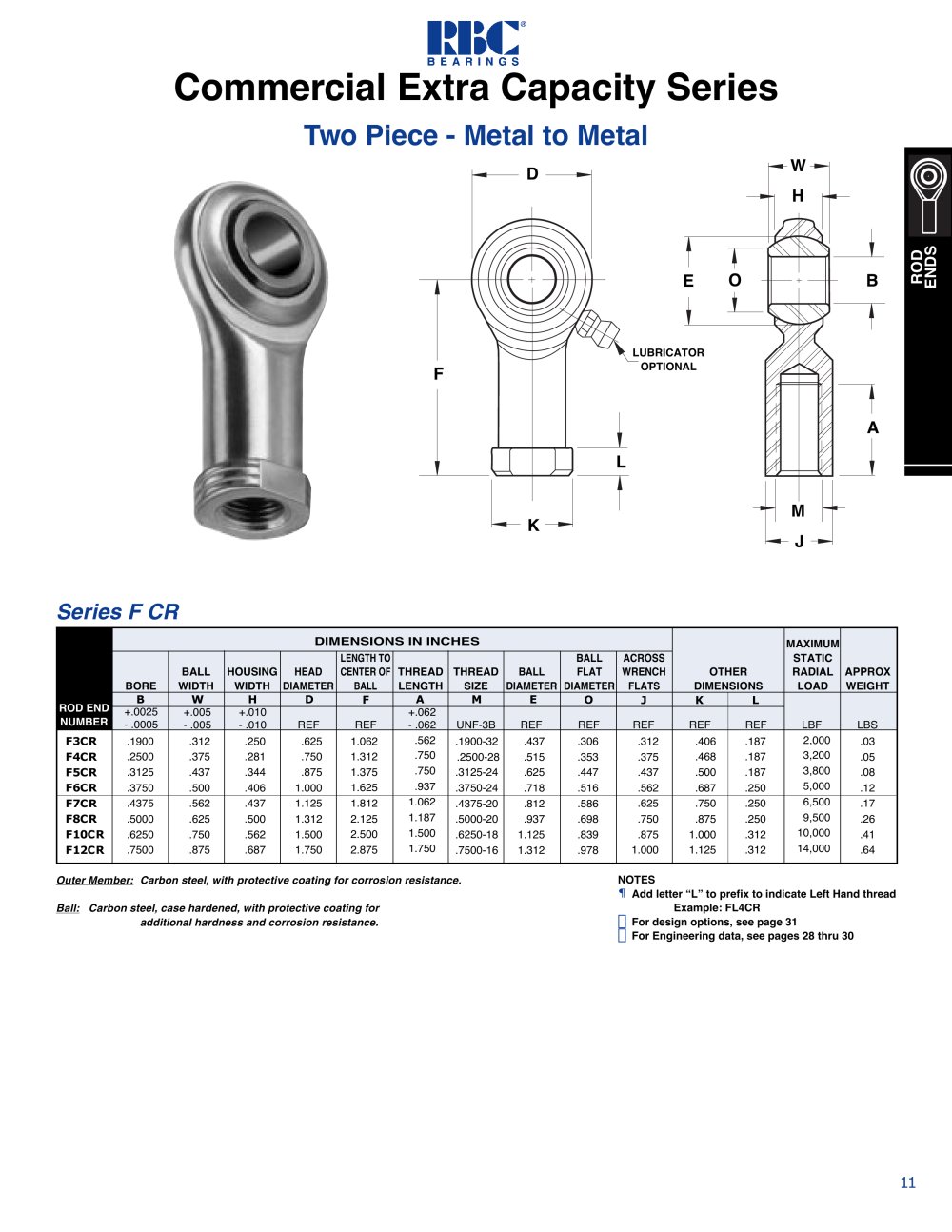

RBC Bearings - 4787

/ 64

See other catalogues for RBC Bearings

Text version of the page

mm:

BEARINGS

Commercial Extra Capacity Series

Two Piece - Metal to Metal

Series F CR


		DIMENSIONS IN INCHES												MAXIMUM
						LENGTH TO				BALL	ACROSS			STATIC
			BALL	HOUSING	HEAD	CENTER OF	THREAD	THREAD	BALL	FLAT	WRENCH	OTHER		RADIAL	APPROX
		BORE	WIDTH	WIDTH	DIAMETER	BALL	LENGTH	SIZE	DIAMETER	DIAMETER	FLATS	DIMENSIONS		LOAD	WEIGHT
	ROD END	B	W	H	D	F	A	M	E	O	J	K	L
	ROD END	+.0025	+.005	+.010			+.062
	NUMBER	- .0005	- .005	- .010	REF	REF	- .062	UNF-3B	REF	REF	REF	REF	REF	LBF	LBS
	F3CR	.1900	.312	.250	.625	1.062	.562	.1900-32	.437	.306	.312	.406	.187	2,000	.03
	F4CR	.2500	.375	.281	.750	1.312	.750	.2500-28	.515	.353	.375	.468	.187	3,200	.05
	F5CR	.3125	.437	.344	.875	1.375	.750	.3125-24	.625	.447	.437	.500	.187	3,800	.08
	F6CR	.3750	.500	.406	1.000	1.625	.937	.3750-24	.718	.516	.562	.687	.250	5,000	.12
	F7CR	.4375	.562	.437	1.125	1.812	1.062	.4375-20	.812	.586	.625	.750	.250	6,500	.17
	F8CR	.5000	.625	.500	1.312	2.125	1.187	.5000-20	.937	.698	.750	.875	.250	9,500	.26
	F10CR	.6250	.750	.562	1.500	2.500	1.500	.6250-18	1.125	.839	.875	1.000	.312	10,000	.41
	F12CR	.7500	.875	.687	1.750	2.875	1.750	.7500-16	1.312	.978	1.000	1.125	.312	14,000	.64

Outer Member: Carbon steel, with protective coating for corrosion resistance. NOTES

f Add letter "L" to prefix to indicate Left Hand thread Ball: Carbon steel, case hardened, with protective coating for Example: FL4CR

additional hardness and corrosion resistance. For design options, see page 31

For Engineering data, see pages 28 thru 30
