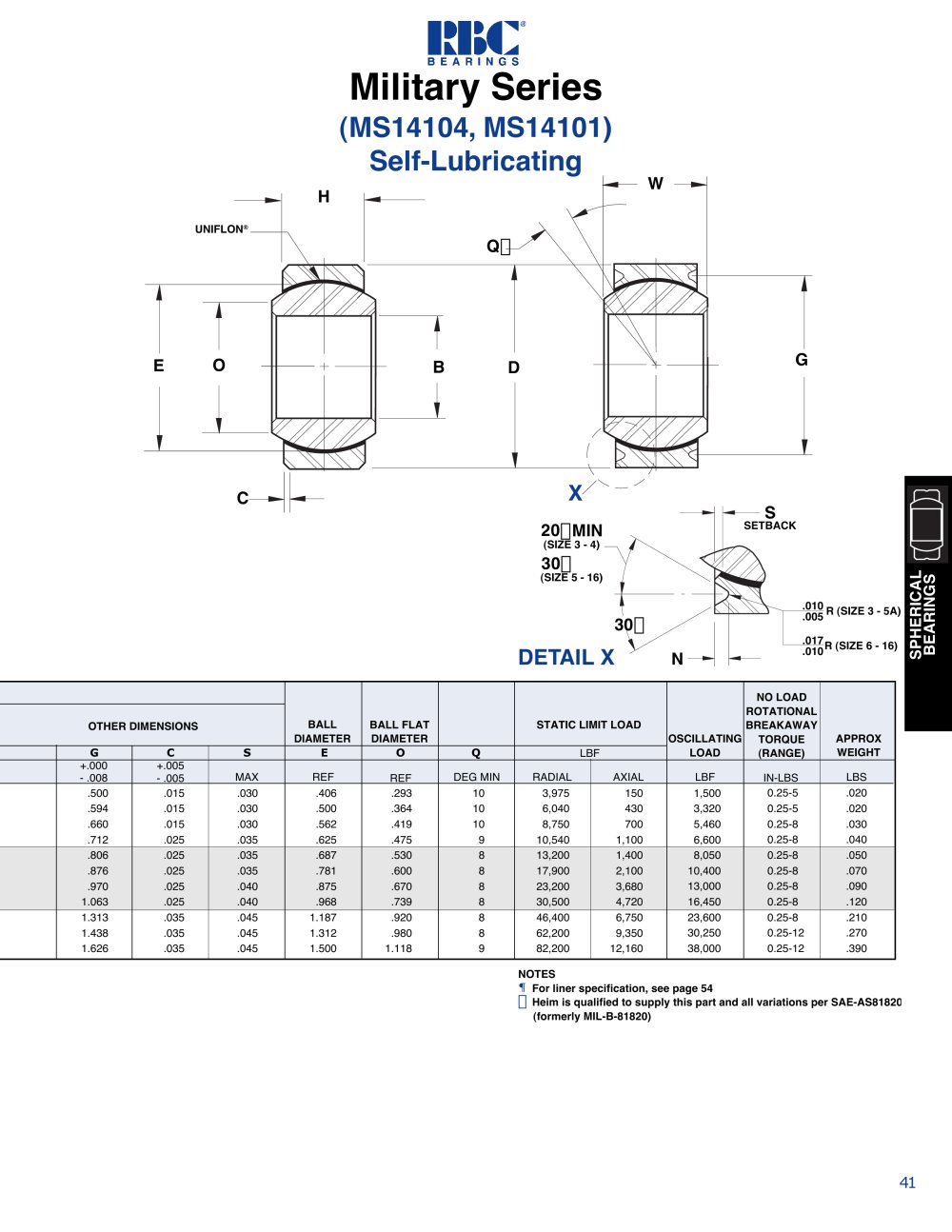

Military Series

(MS14104, MS14101) Self-Lubricating

SETBACK

20 MIN

(SIZE 3 - 4)

(SIZE 5 - 16)

den hi 5

;⁰0°R ^(S|ZE ³ ^- 5^A)

;J°10^R (size 6 - 16)

DETAIL X



										NO LOAD
OTHER DIMENSIONS				BALL DIAMETER	BALL FLAT DIAMETER		STATIC LIMIT LOAD		OSCILLATING	ROTATIONAL BREAKAWAY TORQUE	APPROX
	G	C	S	E	O	Q	LBF		LOAD	(RANGE)	WEIGHT
	+.000 - .008	+.005 - .005	MAX	REF	REF	DEG MIN	RADIAL	AXIAL	LBF	IN-LBS	LBS
	.500	.015	.030	.406	.293	10	3,975	150	1,500	0.25-5	.020
	.594	.015	.030	.500	.364	10	6,040	430	3,320	0.25-5	.020
	.660	.015	.030	.562	.419	10	8,750	700	5,460	0.25-8	.030
	.712	.025	.035	.625	.475	9	10,540	1,100	6,600	0.25-8	.040
	.806	.025	.035	.687	.530	8	13,200	1,400	8,050	0.25-8	.050
	.876	.025	.035	.781	.600	8	17,900	2,100	10,400	0.25-8	.070
	.970	.025	.040	.875	.670	8	23,200	3,680	13,000	0.25-8	.090
	1.063	.025	.040	.968	.739	8	30,500	4,720	16,450	0.25-8	.120
	1.313	.035	.045	1.187	.920	8	46,400	6,750	23,600	0.25-8	.210
	1.438	.035	.045	1.312	.980	8	62,200	9,350	30,250	0.25-12	.270
	1.626	.035	.045	1.500	1.118	9	82,200	12,160	38,000	0.25-12	.390

NOTES

f For liner specification, see page 54

Heim is qualified to supply this part and all variations per SAE-AS81820 (formerly MIL-B-81820)
