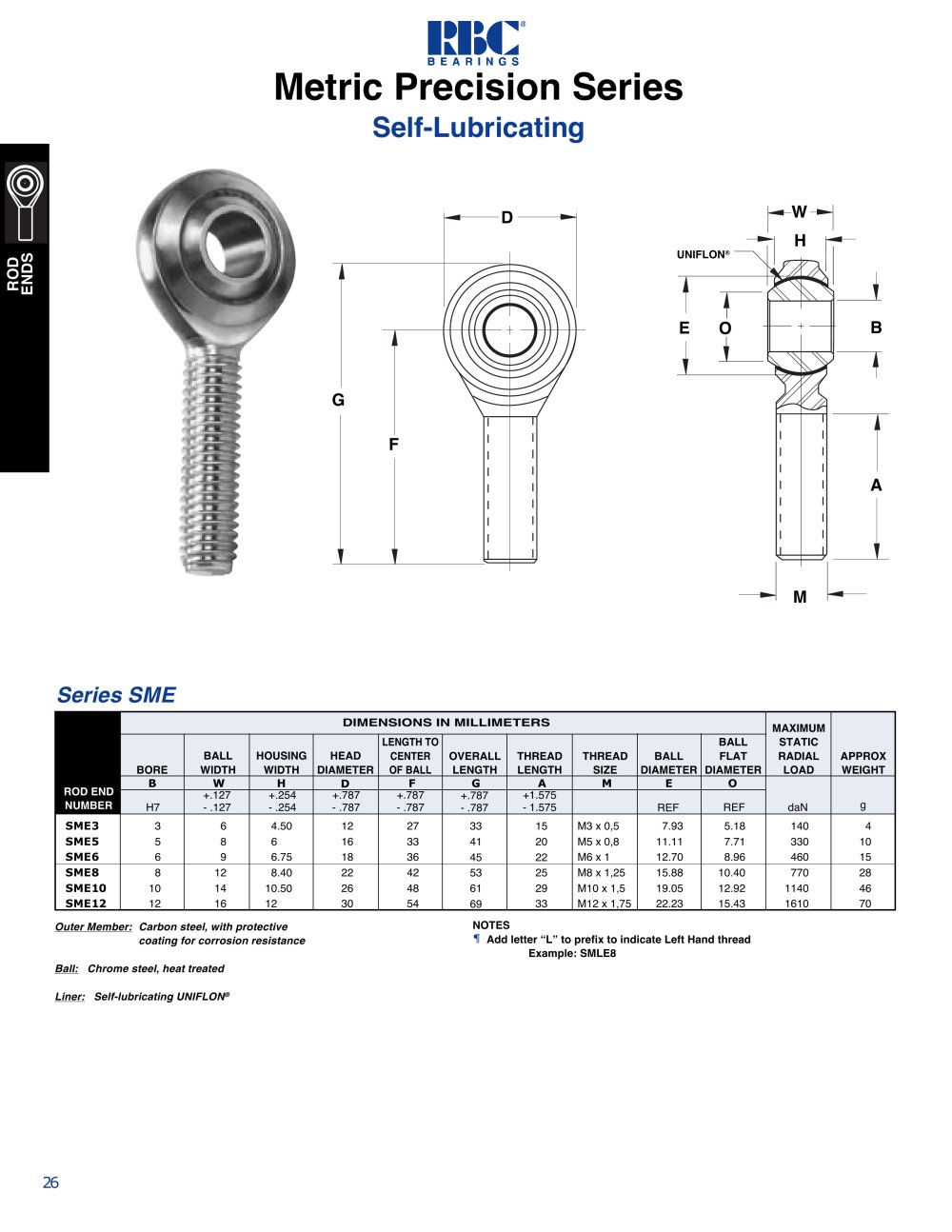

Series SME


		DIMENSIONS IN MILLIMETERS										MAXIMUM
						LENGTH TO					BALL	STATIC
			BALL	HOUSING	HEAD	CENTER	OVERALL	THREAD	THREAD	BALL	FLAT	RADIAL	APPROX
		BORE	WIDTH	WIDTH	DIAMETER	OF BALL	LENGTH	LENGTH	SIZE	DIAMETER	DIAMETER	LOAD	WEIGHT
		B	W	H	D	F	G	A	M	E	O
	ROD END		+.127	+.254	+.787	+.787	+.787	+1.575
	NUMBER	H7	- .127	- .254	- .787	- .787	- .787	- 1.575		REF	REF	daN	g
	SME3	3	6	4.50	12	27	33	15	M3 x 0,5	7.93	5.18	140	4
	SME5	5	8	6	16	33	41	20	M5 x 0,8	11.11	7.71	330	10
	SME6	6	9	6.75	18	36	45	22	M6 x 1	12.70	8.96	460	15
	SME8	8	12	8.40	22	42	53	25	M8 x 1,25	15.88	10.40	770	28
	SME10	10	14	10.50	26	48	61	29	M10 x 1,5	19.05	12.92	1140	46
	SME12	12	16	12	30	54	69	33	M12 x 1,75	22.23	15.43	1610	70

Outer Member: Carbon steel, with protective NOTES

coating for corrosion resistance IF Add letter "L" to prefix to indicate Left Hand thread

Example: SMLE8

Ball: Chrome steel, heat treated

Liner: Self-lubricating UNIFLON®

26
