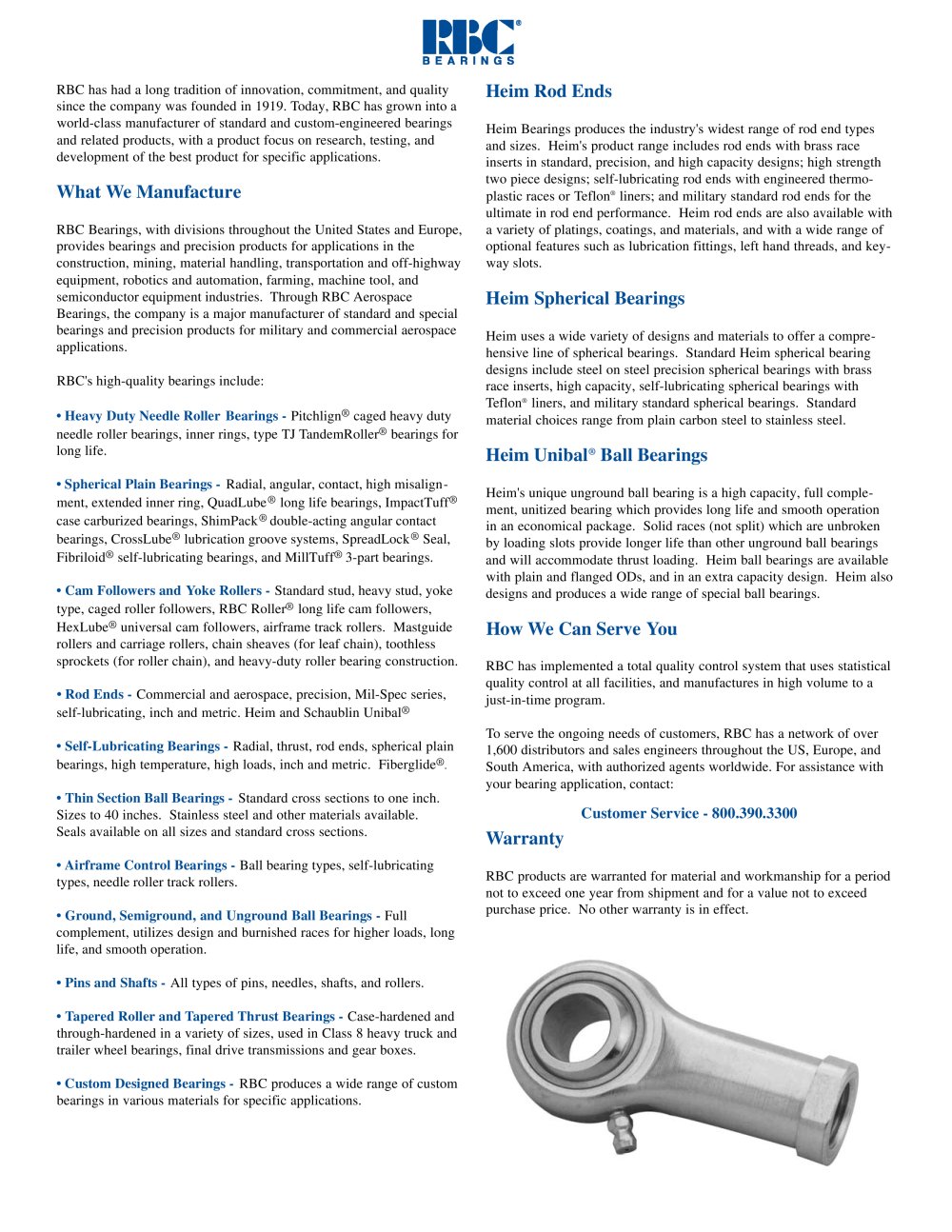

RBC has had a long tradition of innovation, commitment, and qualitysince the company was founded in 1919. Today, RBC has grown into aworld-class manufacturer of standard and custom-engineered bearingsand related products, with a product focus on research, testing, anddevelopment of the best product for specific applications.

Heim Rod Ends - 16837 Heim Rod Ends

Heim Bearings produces the industry's widest range of rod end typesand sizes. Heim's product range includes rod ends with brass raceinserts in standard, precision, and high capacity designs; high strengthtwo piece designs; self-lubricating rod ends with engineered thermo-plastic races or Teflon

WhatWe Manufacture

® liners; and military standard rod ends for theultimate in rod end performance. Heim rod ends are also available witha variety of platings, coatings, and materials, and with a wide range ofoptional features such as lubrication fittings, left hand threads, and key-way slots. RBC Bearings, with divisions throughout the United States and Europe,provides bearings and precision products for applications in the construction, mining, material handling, transportation and off-highwayequipment, robotics and automation, farming, machine tool, and semiconductor equipment industries. Through RBC AerospaceBearings, the company is a major manufacturer of standard and specialbearings and precision products for military and commercial aerospaceapplications.RBC's high-quality bearings include:

Heim Spherical Bearings

Heim uses a wide variety of designs and materials to offer a compre-hensive line of spherical bearings. Standard Heim spherical bearingdesigns include steel on steel precision spherical bearings with brassrace inserts, high capacity, self-lubricating spherical bearings withTeflon
® liners, and military standard spherical bearings. Standard material choices range from plain carbon steel to stainless steel. • Heavy Duty Needle RollerBearings - Pitchlign
® caged heavy dutyneedle roller bearings, inner rings, type TJ TandemRoller
® bearings forlong life.

Heim Unibal

®

Ball Bearings

? Spherical Plain Bearings - Radial, angular, contact, high misalign-ment, extended inner ring, QuadLube
® long life bearings, ImpactTuff
® Heim's unique unground ball bearing is a high capacity, full comple-ment, unitized bearing which provides long life and smooth operationin an economical package. Solid races (not split) which are unbrokenby loading slots provide longer life than other unground ball bearingsand will accommodate thrust loading. Heim ball bearings are availablewith plain and flanged ODs, and in an extra capacity design. Heim alsodesigns and produces a wide range of special ball bearings. case carburized bearings, ShimPack
® double-acting angular contactbearings, CrossLube
® lubrication groove systems, SpreadLock
® Seal,Fibriloid
® self-lubricating bearings, and MillTuff
® 3-part bearings. ? Cam Followers and Yoke Rollers - Standard stud, heavy stud, yoketype, caged roller followers, RBC Roller
® long life cam followers,HexLube
® universal cam followers, airframe track rollers. Mastguiderollers and carriage rollers, chain sheaves (for leaf chain), toothlesssprockets (for roller chain), and heavy-duty roller bearing construction.

HowWe Can Serve You

RBC has implemented a total quality control system that uses statisticalquality control at all facilities, and manufactures in high volume to ajust-in-time program.To serve the ongoing needs of customers, RBC has a network of over1,600 distributors and sales engineers throughout the US, Europe, andSouth America, with authorized agents worldwide. For assistance withyour bearing application, contact: ? Rod Ends - Commercial and aerospace, precision, Mil-Spec series,self-lubricating, inch and metric. Heim and Schaublin Unibal
® ? Self-Lubricating Bearings - Radial, thrust, rod ends, spherical plainbearings, high temperature, high loads, inch and metric. Fiberglide
®. ?Thin Section Ball Bearings - Standard cross sections to one inch.Sizes to 40 inches. Stainless steel and other materials available.Seals available on all sizes and standard cross sections.

CustomerService - 800.390.3300

Warranty

?Airframe Control Bearings - Ball bearing types, self-lubricatingtypes, needle roller track rollers. RBC products are warranted for material and workmanship for a periodnot to exceed one year from shipment and for a value not to exceedpurchase price. No other warranty is in effect. ? Ground, Semiground, and Unground Ball Bearings - Fullcomplement, utilizes design and burnished races for higher loads, longlife, and smooth operation. ? Pins and Shafts - All types of pins, needles, shafts, and rollers. ?Tapered RollerandTapered Thrust Bearings - Case-hardened andthrough-hardened in a variety of sizes, used in Class 8 heavy truck andtrailer wheel bearings, final drive transmissions and gear boxes. ? Custom Designed Bearings - RBC produces a wide range of custombearings in various materials for specific applications.
