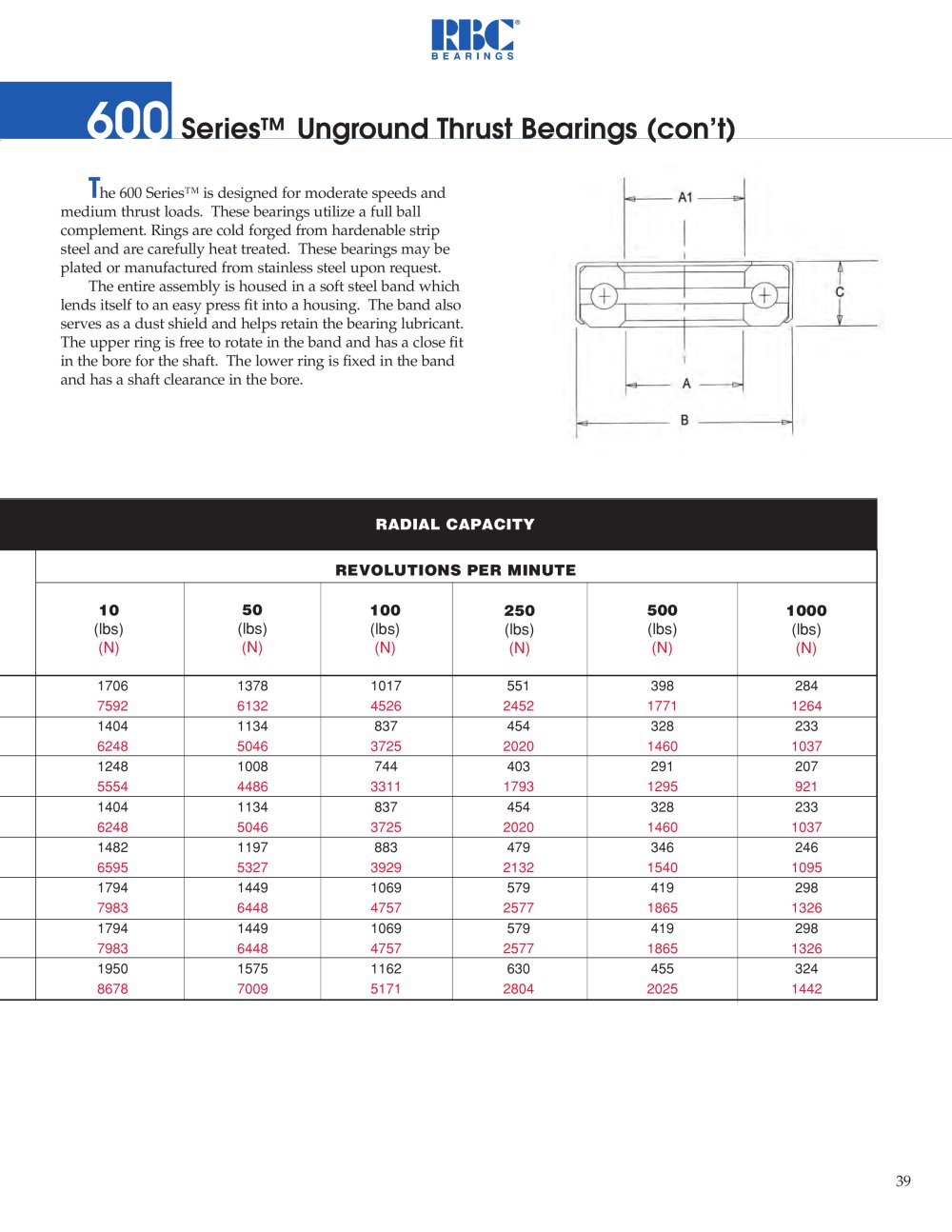

600

Series™ Unground Thrust Bearings (con’t) T

he 600 Series™ is designed for moderate speeds andmedium thrust loads. These bearings utilize a full ball complement. Rings are cold forged from hardenable strip steel and are carefully heat treated. These bearings may be plated or manufactured from stainless steel upon request.The entire assembly is housed in a soft steel band whichlends itself to an easy press fit into a housing. The band also serves as a dust shield and helps retain the bearing lubricant. The upper ring is free to rotate in the band and has a close fit in the bore for the shaft. The lower ring is fixed in the band and has a shaft clearance in the bore. RADIAL CAPACITY REVOLUTIONS PER MINUTE 10 50 100 250 500 1000 (lbs)(N) (lbs)(N) (lbs)(N) (lbs)(N) (lbs)(N) (lbs)(N)

170613781017551398284 759261324526245217711264 14041134837454328233 624850463725202014601037 12481008744403291207 55544486331117931295921 14041134837454328233 624850463725202014601037 14821197883479346246 659553273929213215401095 179414491069579419298 798364484757257718651326 179414491069579419298 798364484757257718651326 195015751162630455324 867870095171280420251442

39
