5000

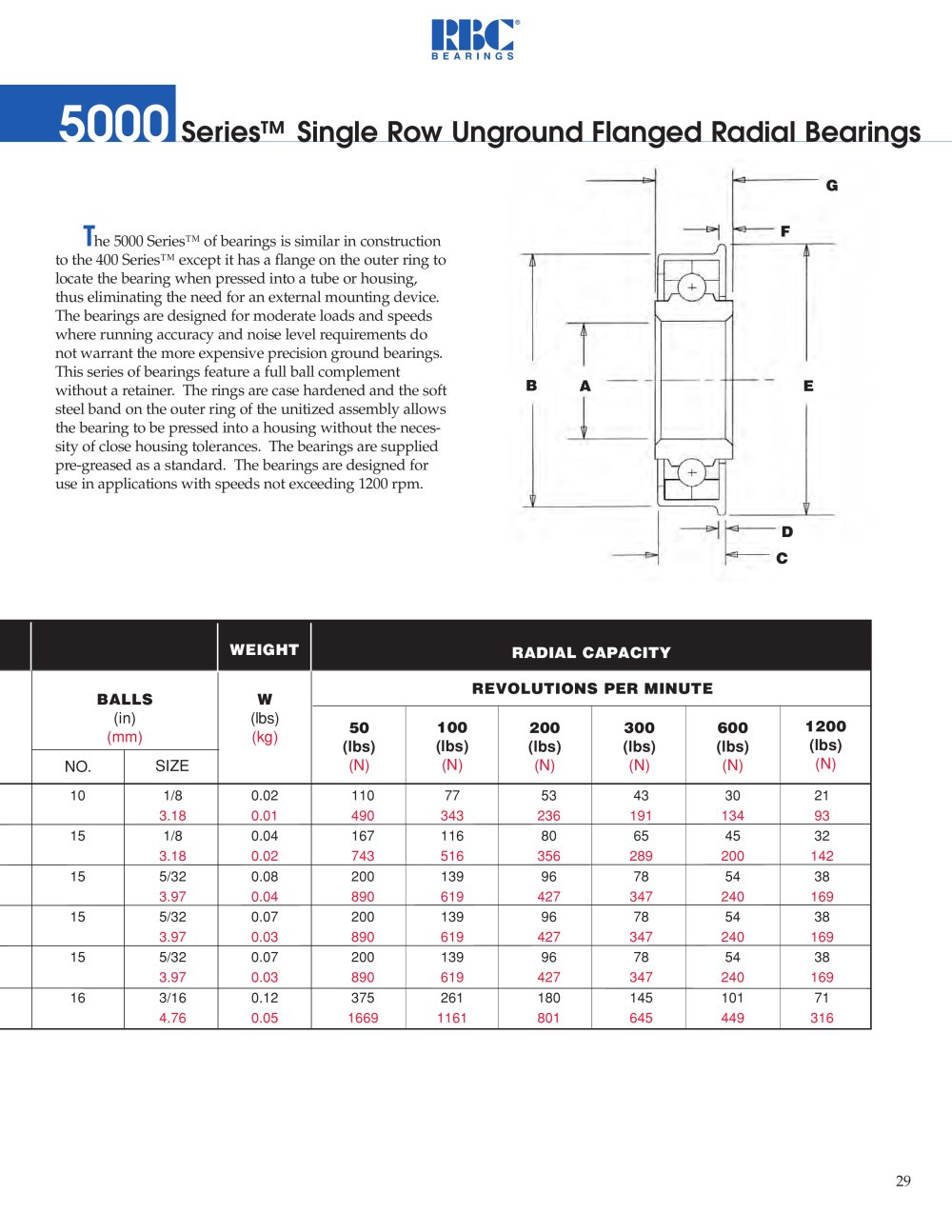

Series™ Single Row Unground Flanged Radial Bearings T
he 5000 Series™ of bearings is similar in constructionto the 400 Series™ except it has a flange on the outer ring to locate the bearing when pressed into a tube or housing, thus eliminating the need for an external mounting device. The bearings are designed for moderate loads and speeds where running accuracy and noise level requirements do not warrant the more expensive precision ground bearings. This series of bearings feature a full ball complement without a retainer. The rings are case hardened and the soft steel band on the outer ring of the unitized assembly allows the bearing to be pressed into a housing without the neces- sity of close housing tolerances. The bearings are supplied pre-greased as a standard. The bearings are designed for use in applications with speeds not exceeding 1200 rpm. BAEDC FG WEIGHT RADIAL CAPACITY BALLS W REVOLUTIONS PER MINUTE (in)(mm) (lbs)(kg) 50 100 200 300 600 1200 (lbs) (lbs) (lbs) (lbs) (lbs) (lbs) NO.SIZE (N) (N) (N) (N) (N) (N)101/80.021107753433021 3.180.0149034323619113493 151/80.0416711680654532 3.180.02743516356289200142 155/320.0820013996785438 3.970.04890619427347240169 155/320.0720013996785438 3.970.03890619427347240169 155/320.0720013996785438 3.970.03890619427347240169 163/160.1237526118014510171 4.760.0516691161801645449316 29
