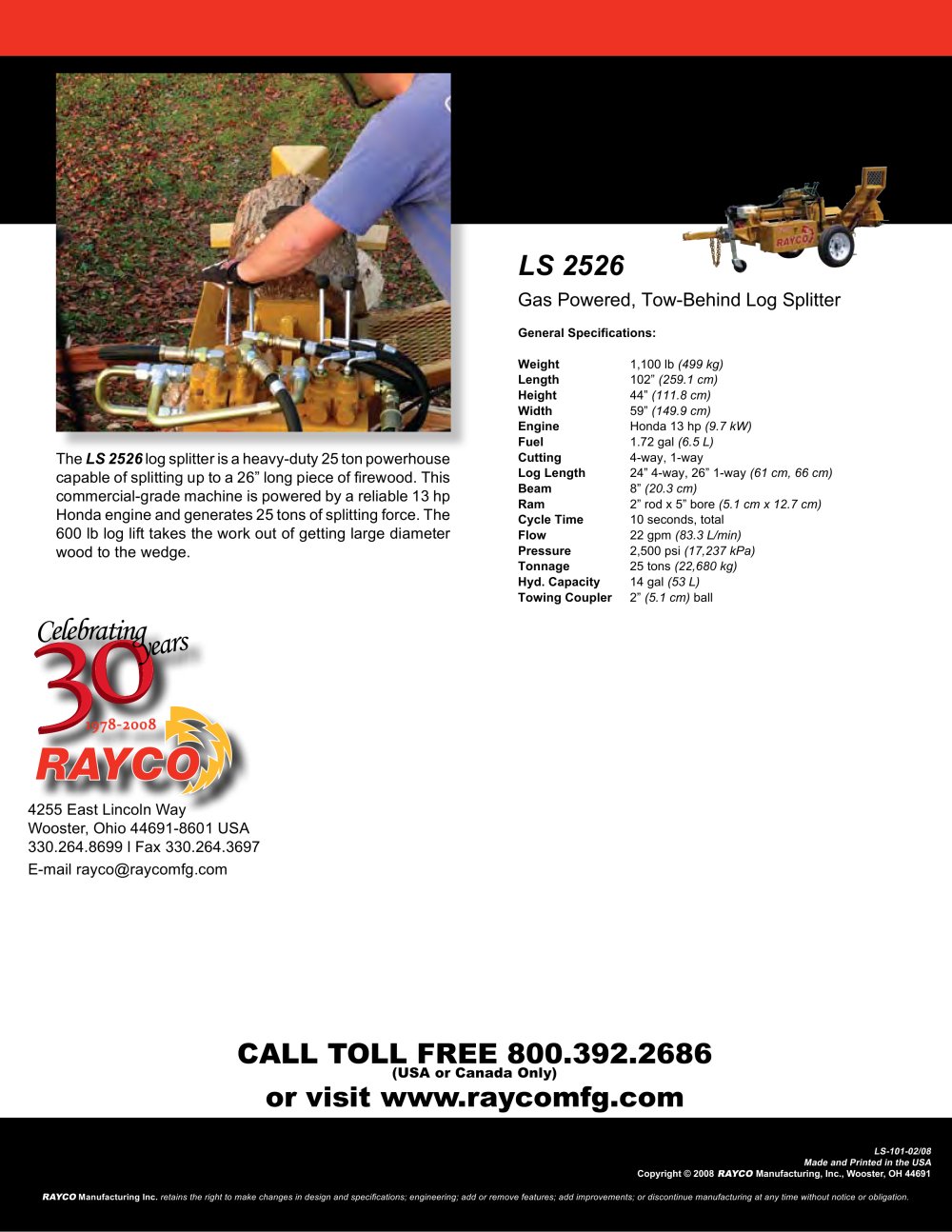

LS 2526

Gas Powered, Tow-Behind Log Splitter

General Specifications:Weight 1,100 lb (499 kg) Length 102” (259.1 cm) Height 44” (111.8 cm) Width 59” (149.9 cm) Engine Honda 13 hp (9.7 kW) Fuel 1.72 gal (6.5 L)

The Th LS 2526 LS2526 6 log splitter is a heavy-duty 25 ton powerhouse capable of splitting up to a 26” long piece of firewood. This commercial-grade machine is powered by a reliable 13 hp Honda engine and generates 25 tons of splitting force. The 600 lb log lift takes the work out of getting large diameter wood to the wedge. llittihdt25th

Cutting 4-way, 1-way Log Length 24” 4-way, 26” 1-way (61 cm, 66 cm) Beam 8” (20.3 cm) Ram 2” rod x 5” bore (5.1 cm x 12.7 cm) Cycle Time 10 seconds, total Flow 22 gpm (83.3 L/min) Pressure 2,500 psi (17,237 kPa) Tonnage 25 tons (22,680 kg) Hyd. Capacity 14 gal (53 L) Towing Coupler 2” (5.1 cm) ball

Log Splitter LS2526 - 20566 Celebrating years

1978-2008

4255 East Lincoln WayWooster, Ohio 44691-8601 USA 330.264.8699 l Fax 330.264.3697E-mail rayco@raycomfg.com

CALL TOLL FREE 800.392.2686or visit www.raycomfg.com

(USA or Canada Only)

LS-101-02/08Made and Printed in the USA Copyright © 2008 RAYCO Manufacturing, Inc., Wooster, OH 44691 RAYCO Manufacturing Inc. retains the right to make changes in design and speciï¬�cations; engineering; add or remove features; add improvements; or discontinue manufacturing at any time without notice or obligation.
