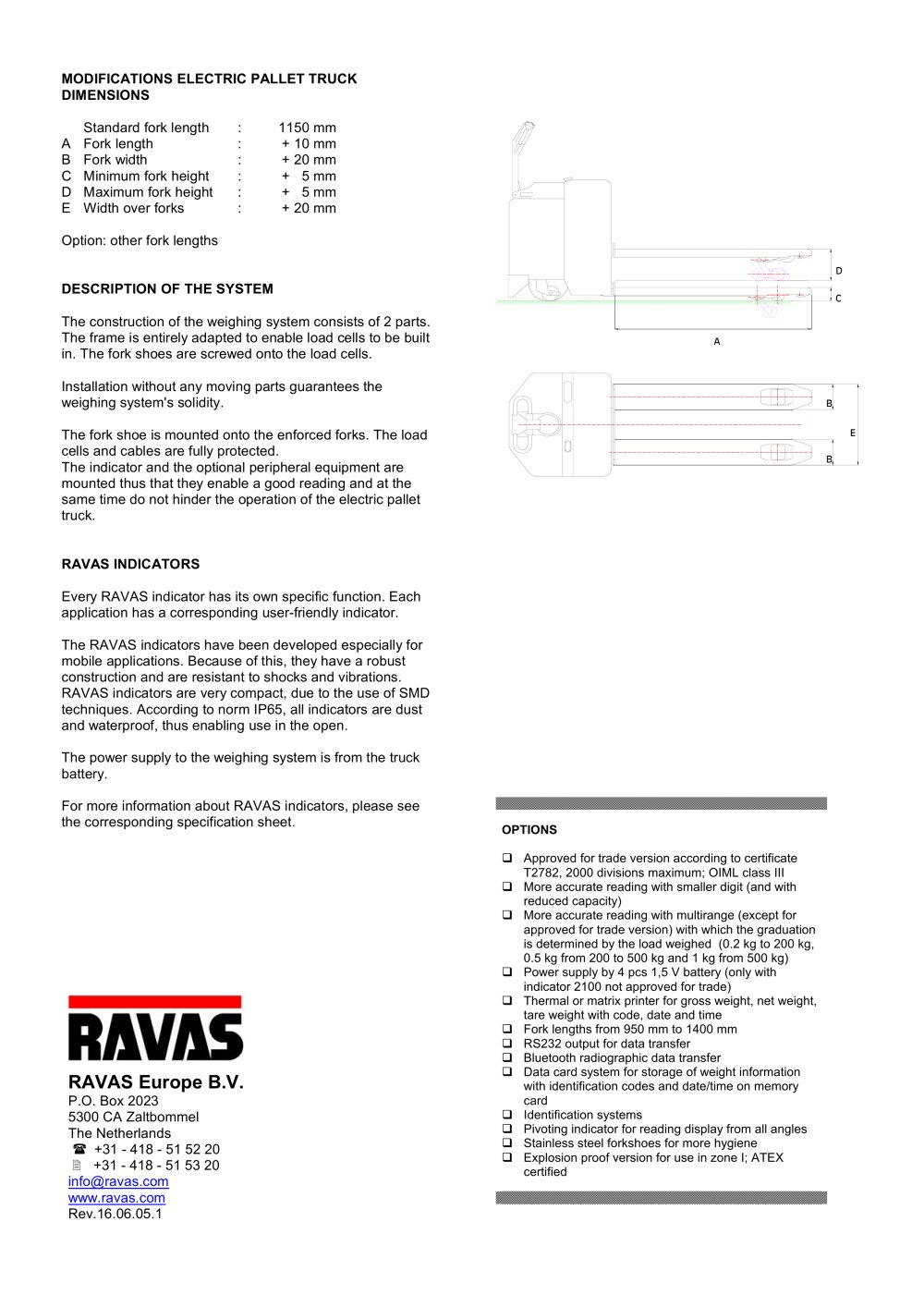

DESCRIPTION OF THE SYSTEM The construction of the weighing system consists of 2 parts. The frame is entirely adapted to enable load cells to be built in. The fork shoes are screwed onto the load cells. MODIFICATIONS ELECTRIC PALLET TRUCK DIMENSIONS Installation without any moving parts guarantees the weighing system's solidity. Standard fork length : 1150 mm A Fork length : + 10 mm B Fork width : + 20 mm C Minimum fork height : + 5 mm D Maximum fork height : + 5 mm E Width over forks : + 20 mm Option: other fork lengths The fork shoe is mounted onto the enforced forks. The load cells and cables are fully protected. The indicator and the optional peripheral equipment are mounted thus that they enable a good reading and at the same time do not hinder the operation of the electric pallet truck. RAVAS INDICATORS Every RAVAS indicator has its own specific function. Each application has a corresponding user-friendly indicator. The RAVAS indicators have been developed especially for mobile applications. Because of this, they have a robust construction and are resistant to shocks and vibrations. RAVAS indicators are very compact, due to the use of SMD techniques. According to norm IP65, all indicators are dust and waterproof, thus enabling use in the open. The power supply to the weighing system is from the truck battery. For more information about RAVAS indicators, please see the corresponding specification sheet.
D C A B E B OPTIONS Approved for trade version according to certificate T2782, 2000 divisions maximum; OIML class III More accurate reading with smaller digit (and with reduced capacity) More accurate reading with multirange (except for approved for trade version) with which the graduation is determined by the load weighed (0.2 kg to 200 kg, 0.5 kg from 200 to 500 kg and 1 kg from 500 kg) Power supply by 4 pcs 1,5 V battery (only with indicator 2100 not approved for trade) Thermal or matrix printer for gross weight, net weight, tare weight with code, date and time Fork lengths from 950 mm to 1400 mm RS232 output for data transfer Bluetooth radiographic data transfer

Warehouse truck scales RPW EL - 56933 RAVAS Europe B.V.

Data card system for storage of weight information with identification codes and date/time on memory card Identification systems Pivoting indicator for reading display from all angles Stainless steel forkshoes for more hygiene Explosion proof version for use in zone I; ATEX certified P.O. Box 2023 5300 CA Zaltbommel The Netherlands +31 - 418 - 51 52 20 +31 - 418 - 51 53 20 info@ravas.com www.ravas.com Rev.16.06.05.1
