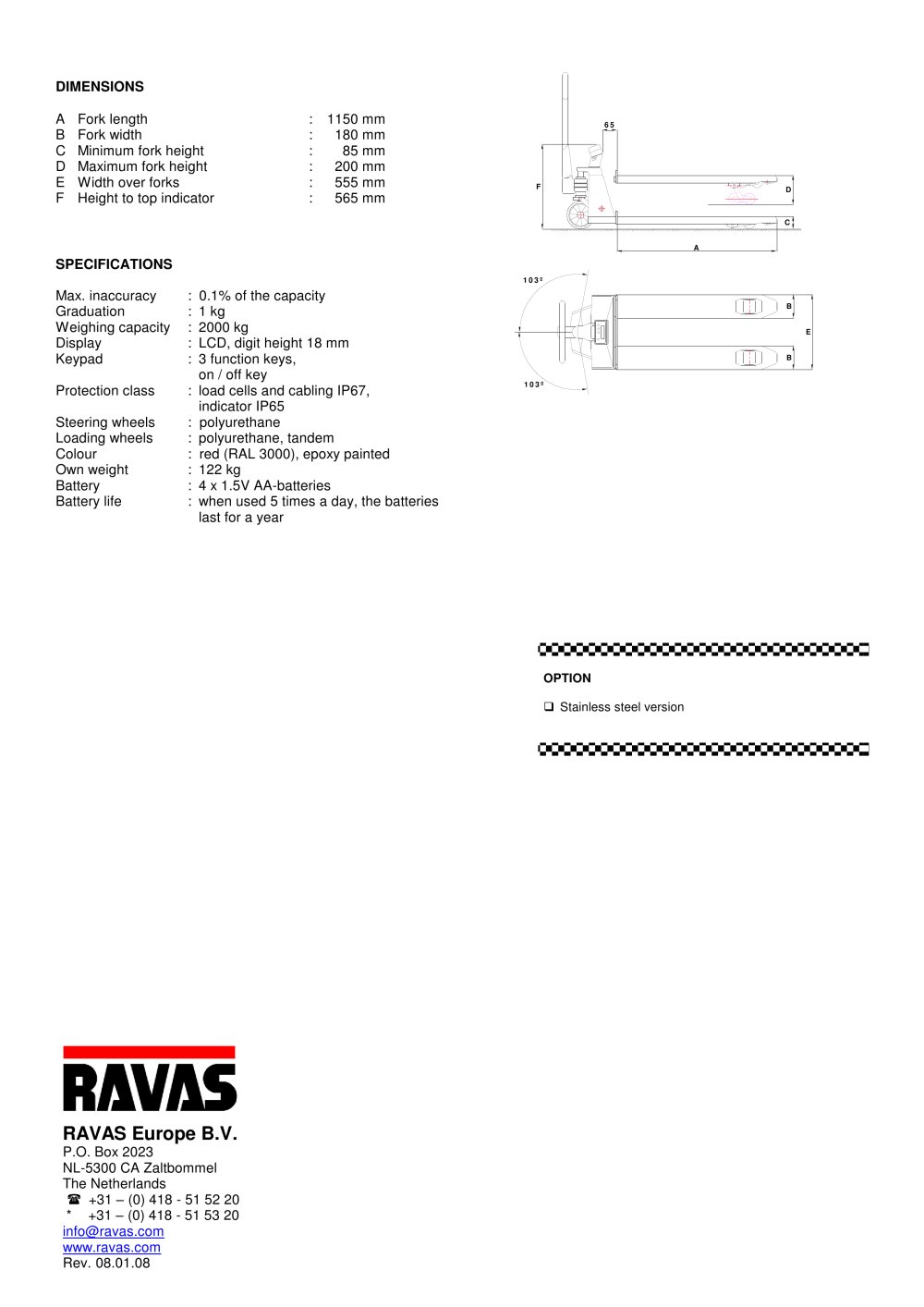

DIMENSIONS A Fork length : 1150 mm B Fork width : 180 mm C Minimum fork height : 85 mm D Maximum fork height : 200 mm E Width over forks : 555 mm
F F Height to top indicator : 565 mm
D SPECIFICATIONS
AC Max.
103º inaccuracy : 0.1% of the capacity Graduation : 1 kg
B Weighing capacity : 2000 kg
E Display : LCD, digit height 18 mm Ke ypad : 3 function keys,
B 65 on / off key Protection class : load cells and cabling IP67,
103º indicator IP65 Steering wheels : polyurethane Loadi ng wheels : polyurethane, tandem Colour : red (RAL 3000), epoxy painted Own weight : 122 kg Battery : 4 x 1.5V AA-batteries Battery life : w hen used 5 times a day, the batteries last for a year
OPTION Stainless steel version

Pallet truck scales RAVAS-1100 - 56933 RAVAS Europe B.V.

P.O. Box 2023 NL -5300 CA Zaltbommel The Netherlands +31 – (0) 418 - 51 52 20 * +31 – (0) 418 - 51 53 20 info@ravas.com www.ravas.com Rev. 08.01.08
