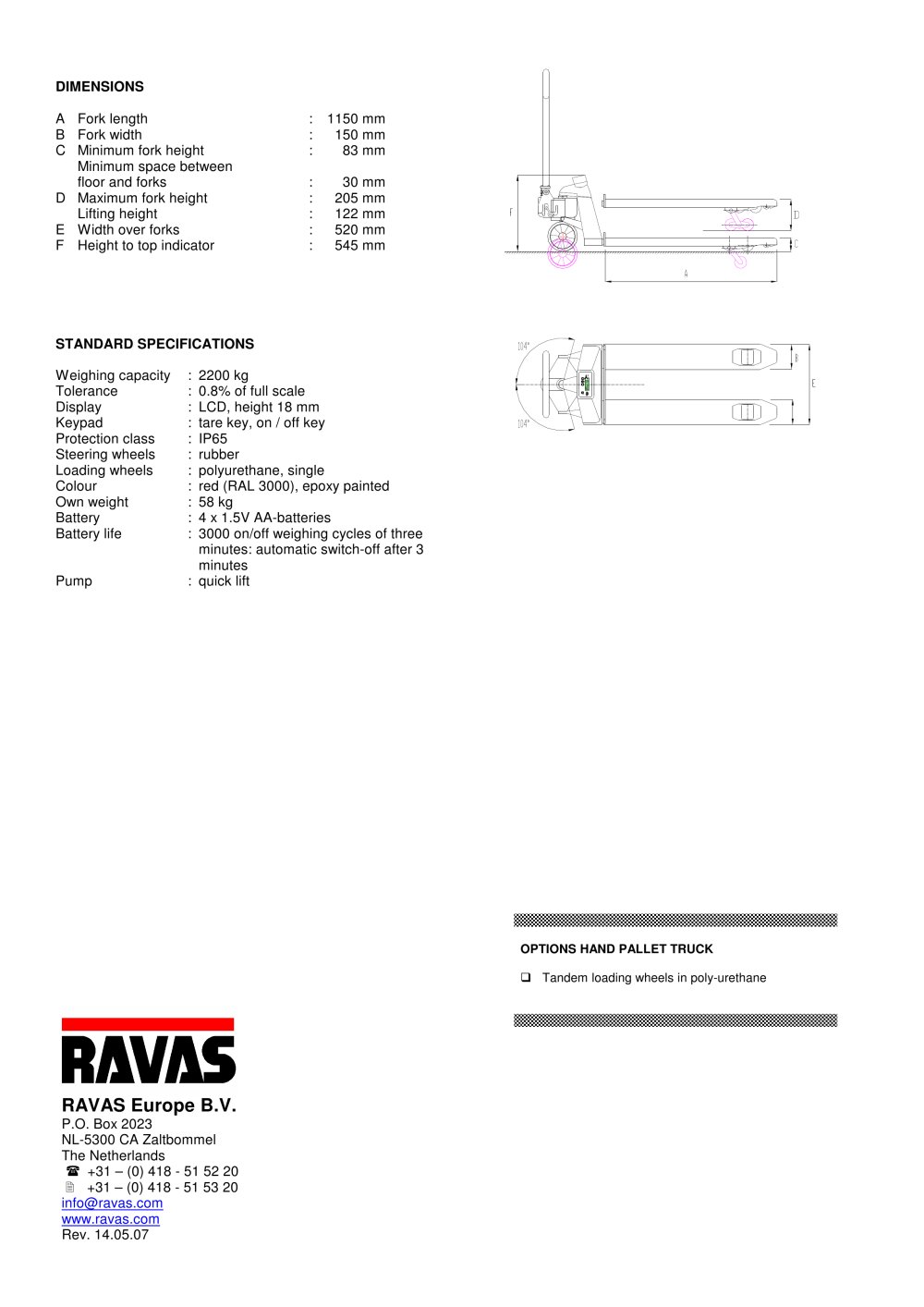

Pump : quick lift STANDARD SPECIFICATIONS Weighing capacity : 2200 kg Tolerance : 0.8% of full scale Display : LCD, height 18 mm Keypad : tare key, on / off key Protection class : IP65 Steering wheels : rubber Loading wheels : polyurethane, single Colour : red (RAL 3000), epoxy painted Own weight : 58 kg Battery : 4 x 1.5V AA-batteries Battery life : 3000 on/off weighing cycles of three minutes: automatic switch-off after 3 minutes DIMENSIONS A Fork length : 1150 mm B Fork width : 150 mm C Minimum fork height : 83 mm Minimum space between floor and forks : 30 mm D Maximum fork height : 205 mm Lifting height : 122 mm E Width over forks : 520 mm F Height to top indicator : 545 mm
OPTIONS HAND PALLET TRUCK Tandem loading wheels in poly-urethane

Pallet truck scales RAVAS-1 - 56933 RAVAS Europe B.V.

+31 – (0) 418 - 51 52 20 P.O. Box 2023 NL-5300 CA Zaltbommel The Netherlands +31 – (0) 418 - 51 53 20 info@ravas.com www.ravas.com Rev. 14.05.07
