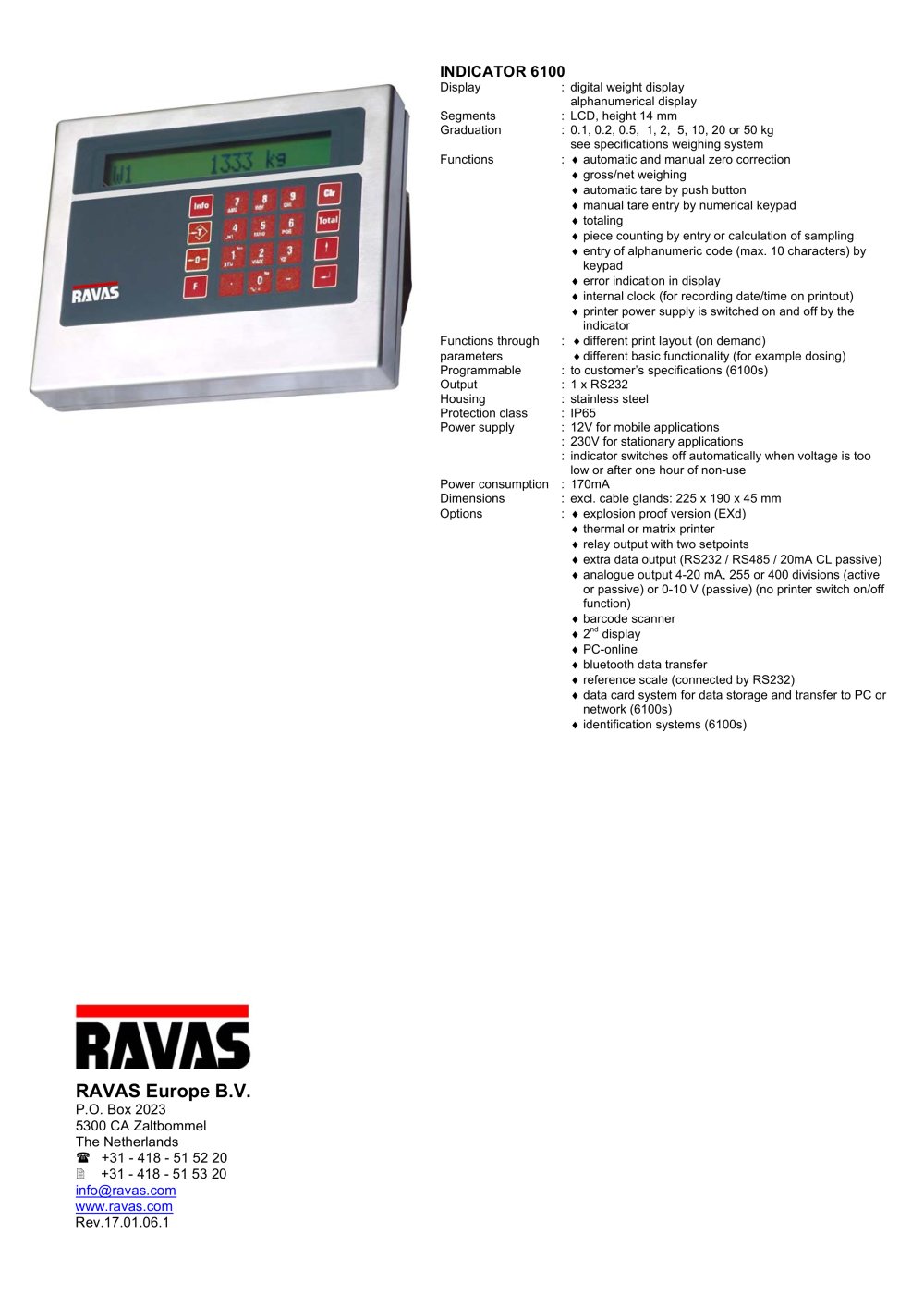

INDICATOR 6100

automatic and manual zero correction Display : digital weight display alphanumerical display Segments : LCD, height 14 mm Graduation : 0.1, 0.2, 0.5, 1, 2, 5, 10, 20 or 50 kg see specifications weighing system Functions : gross/net weighing automatic tare by push button manual tare entry by numerical keypad totaling piece counting by entry or calculation of sampling entry of alphanumeric code (max. 10 characters) by keypad error indication in display internal clock (for recording date/time on printout) printer power supply is switched on and off by the indicator Functions through : different print layout (on demand) parameters different basic functionality (for example dosing) Programmable : to customer’s specifications (6100s) Output : 1 x RS232 Housing : stainless steel Protection class : IP65 Power supply : 12V for mobile applications : 230V for stationary applications : indicator switches off automatically when voltage is too low or after one hour of non-use Power consumption : 170mA Dimensions : excl. cable glands: 225 x 190 x 45 mm Options : explosion proof version (EXd) thermal or matrix printer relay output with two setpoints extra data output (RS232 / RS485 / 20mA CL passive) analogue output 4-20 mA, 255 or 400 divisions (active or passive) or 0-10 V (passive) (no printer switch on/off function) barcode scanner 2
nd display PC-online bluetooth data transfer reference scale (connected by RS232) data card system for data storage and transfer to PC or network (6100s) identification systems (6100s)

Indicators - 56933 RAVAS Europe B.V.

P.O. Box 2023 5300 CA Zaltbommel The Netherlands +31 - 418 - 51 52 20 +31 - 418 - 51 53 20 info@ravas.com www.ravas.com Rev.17.01.06.1
